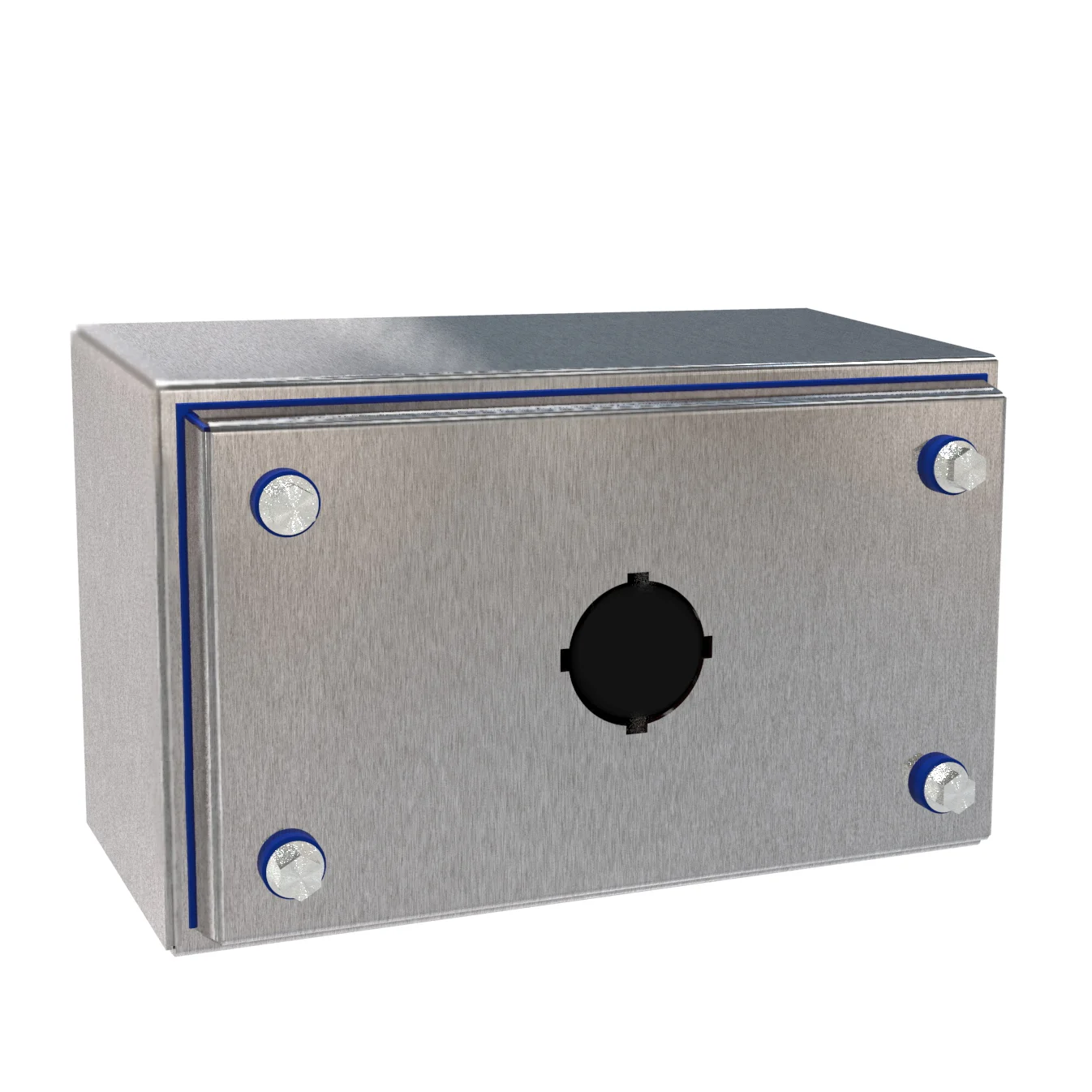

HAMMOND HYPB1SS Sanitary Pushbutton Enclosure, 1 Hole, 30mm, Slope Top, 8 x 5 x 4 Inch Size, Wall Mount
Get it by Wednesday, Aug 19
€1,387.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pushbutton Enclosure |
| Cover Type | Screw Cover |
| Enclosure Depth | 4.53" |
| Enclosure Height | 7.94" |
| Enclosure Width | 4.98" |
| Finish | Brush |
| Ip Rating | IP69K |
| Material | 304 Stainless Steel |
| Material | Stainless Steel |
| Mounting | Wall |
| Nema Rating | NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 |
| No. Of Pushbutton Holes | 1 |
| Nominal Enclosure Dimensions (h X W X D) | 8" x 5" x 4" |
| Product Datasheet | hammond-hympb1ss.pdf |
| Pushbutton Hole Nominal Size | 30 mm |
| Slope Top | Yes |
Shipping Info:
| Ship weight (kg) | 3.6 |
| Ship height (cm) | 20.17 |
| Ship length (cm) | 11.51 |
| Ship width (cm) | 12.65 |
| HS code | 853810 |
| Country of Origin | CA |
Documentation:
Product Variants
| Product | Model | Nominal Enclosure Dimensions (h X W X D) | Enclosure Width | Enclosure Height | Pushbutton Hole Nominal Size | Material | No. Of Pushbutton Holes | Enclosure Depth | Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HYMPB1SS | 8" x 5" x 4" | 4.98" | 7.94" | 22 mm | 304 Stainless Steel | 1 | 4.53" | NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 | €1,387.80 | |
 |
HYMPB2SS | 8" x 5" x 4" | 4.98" | 7.94" | 22 mm | 304 Stainless Steel | 2 | 4.53" | NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 | €1,459.80 | |
 |
HYMPB3SS | 10" x 5" x 4" | 4.98" | 9.94" | 22 mm | 304 Stainless Steel | 3 | 4.53" | NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 | €1,540.80 | |
 |
HYMPB4SS | 10" x 7" x 4" | 6.98" | 9.94" | 22 mm | 304 Stainless Steel | 4 | 4.53" | NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 | €1,747.80 | |
 |
HYMPB4VSS | 12" x 5" x 4" | 4.98" | 11.94" | 22 mm | 304 Stainless Steel | 4 | 4.53" | NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 | €1,668.60 | |
 |
HYMPB6SS | 12" x 9" x 4" | 8.98" | 11.94" | 22 mm | 304 Stainless Steel | 6 | 4.53" | NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 | €2,034.00 | |
 |
HYPB2SS | 8" x 5" x 4" | 4.98" | 7.94" | 30 mm | 304 Stainless Steel | 2 | 4.53" | NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 | €1,459.80 |
