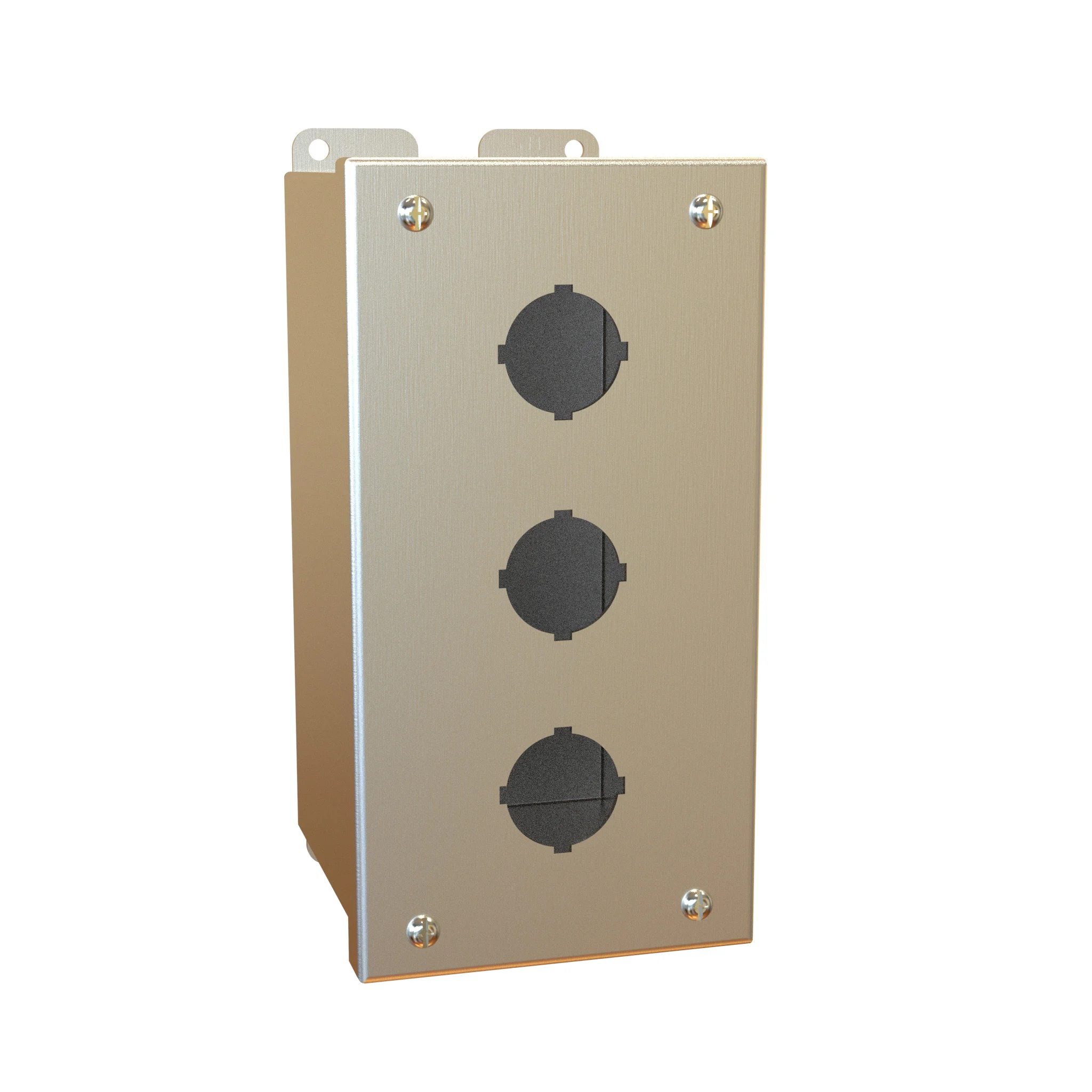

HAMMOND 1437S16C Pushbutton Enclosure, 3 Holes, 30mm, 8 x 4 x 5 Inch Size, Wall Mount, 316 Stainless Steel
Get it by Tuesday, Aug 18
€516.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Enclosure |
| Accessory Type | Pushbutton Enclosure |
| Cover Type | Hinged Screw Cover |
| Enclosure Depth | 4 23/25" |
| Enclosure Height | 8.31" |
| Enclosure Width | 4.31" |
| Finish | Brush |
| Hinge Type | Internal Lift Off Hinge |
| Integral Mounting Feet | Yes |
| Ip Rating | IP68 |
| Material | 316 Stainless Steel |
| Material | Stainless Steel |
| Mounting | Wall |
| Nema Rating | NEMA 4, NEMA 4X |
| No. Of Hinges Per Door | 2 |
| No. Of Pushbutton Holes | 3 |
| Nominal Enclosure Dimensions (h X W X D) | 8" x 4" x 5" |
| Product Datasheet | hammond-1437ms16a.pdf |
| Pushbutton Hole Nominal Size | 30 mm |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 21.11 |
| Ship length (cm) | 12.5 |
| Ship width (cm) | 10.95 |
| HS code | 853810 |
| Country of Origin | CA |
Documentation:
Product Variants
| Product | Model | Enclosure Depth | Nominal Enclosure Dimensions (h X W X D) | Enclosure Width | Pushbutton Hole Nominal Size | Material | Enclosure Height | No. Of Pushbutton Holes | Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1437MS16A | - | - | - | - | - | - | - | - | €392.40 | |
 |
1437MS16B | 4 23/25" | 6" x 4" x 5" | 4.31" | 22 mm | 316 Stainless Steel | 6.31" | - | NEMA 4, NEMA 4X | €480.60 | |
 |
1437MS16C | 4 23/25" | 8" x 4" x 5" | 4.31" | 22 mm | 316 Stainless Steel | 8.31" | 3 | NEMA 4, NEMA 4X | €558.00 | |
 |
1437MS16D | 4 23/25" | 10" x 4" x 5" | 4.31" | 22 mm | 316 Stainless Steel | 10.31" | 4 | NEMA 4, NEMA 4X | €630.00 | |
 |
1437MSSA | 4.91" | 4" x 4" x 5" | - | 22 mm | 304 Stainless Steel | - | 1 | NEMA 4, NEMA 4X | €313.20 | |
 |
1437MSSB | 4 23/25" | 6" x 4" x 5" | 4.31" | 22 mm | 304 Stainless Steel | 6.31" | - | NEMA 4, NEMA 4X | €383.40 | |
 |
1437MSSC | 4 23/25" | 8" x 4" x 5" | 4.31" | 22 mm | 304 Stainless Steel | 8.31" | 3 | NEMA 4, NEMA 4X | €446.40 |
