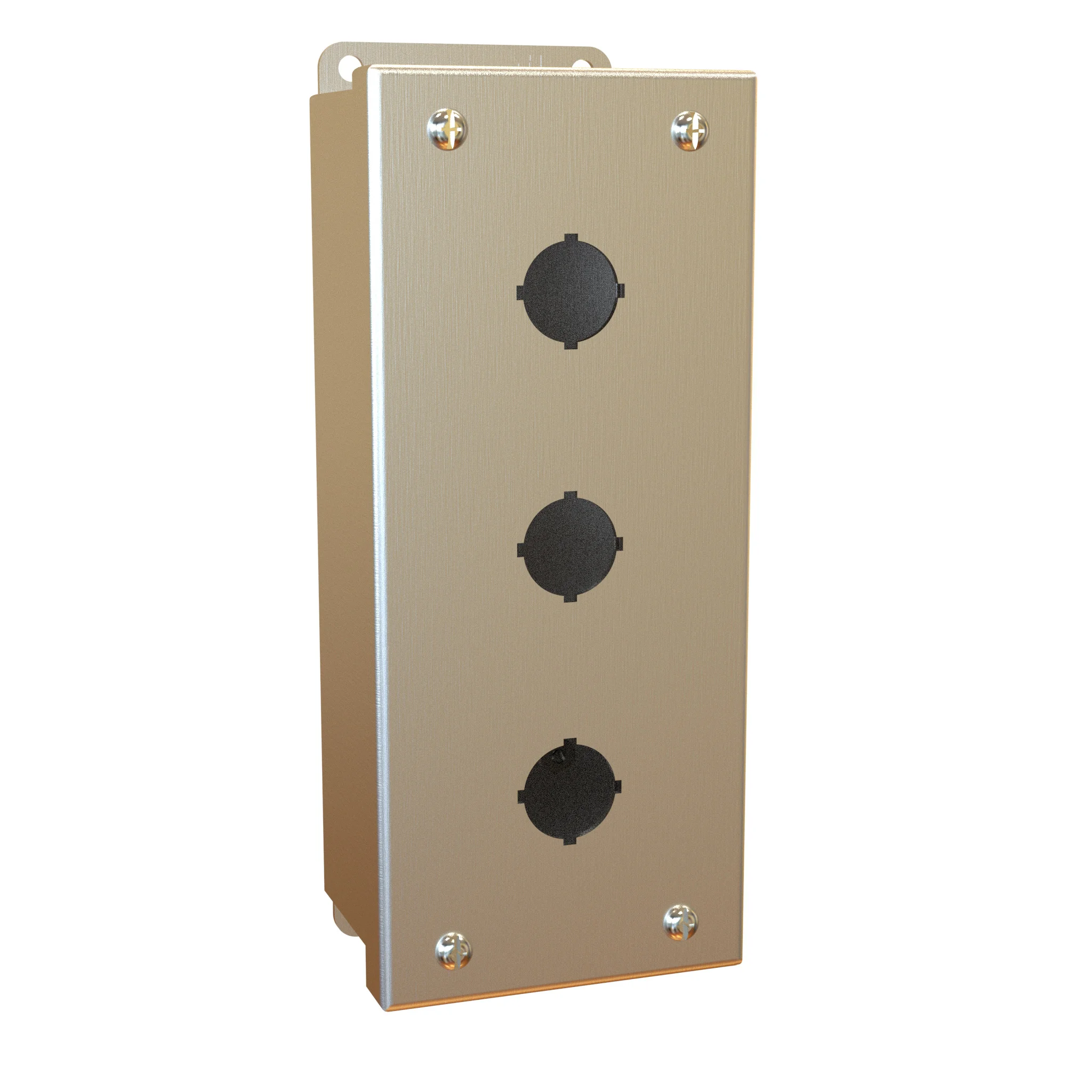

HAMMOND 1435SSC Pushbutton Enclosure, 3 Holes, 30mm, 8 x 4 x 3 Inch Size, Wall Mount, 304 Stainless Steel
Get it by Tuesday, Aug 18
€340.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Enclosure |
| Accessory Type | Pushbutton Enclosure |
| Cover Type | Screw Cover |
| Enclosure Depth | 2 23/25" |
| Enclosure Height | 8.31" |
| Enclosure Width | 3 14/25" |
| Finish | Brush |
| Integral Mounting Feet | Yes |
| Ip Rating | IP66 |
| Material | 304 Stainless Steel |
| Material | Stainless Steel |
| Mounting | Wall |
| Nema Rating | NEMA 3R, NEMA 4, NEMA 4X |
| No. Of Pushbutton Holes | 3 |
| Nominal Enclosure Dimensions (h X W X D) | 8" x 4" x 3" |
| Product Datasheet | hammond-1435ms16a.pdf |
| Pushbutton Hole Nominal Size | 30 mm |
Shipping Info:
| Ship weight (kg) | 1.46 |
| Ship height (cm) | 21.11 |
| Ship length (cm) | 7.42 |
| Ship width (cm) | 9.04 |
| HS code | 853810 |
| Country of Origin | CA |
Documentation:
Product Variants
| Product | Model | Enclosure Depth | Nominal Enclosure Dimensions (h X W X D) | Enclosure Width | Enclosure Height | Pushbutton Hole Nominal Size | Material | No. Of Pushbutton Holes | Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1435MS16A | 2.91" | 4" x 4" x 3" | 3 14/25" | 3.81" | 22 mm | 316 Stainless Steel | 1 | NEMA 3R, NEMA 4, NEMA 4X | €307.80 | |
 |
1435MS16B | 2.91" | 6" x 4" x 3" | 3 14/25" | 6.06" | 22 mm | 316 Stainless Steel | 2 | NEMA 3R, NEMA 4, NEMA 4X | €363.60 | |
 |
1435MS16C | 2 23/25" | 8" x 4" x 3" | 3 14/25" | 8.31" | 22 mm | 316 Stainless Steel | 3 | NEMA 3R, NEMA 4, NEMA 4X | €421.20 | |
 |
1435MS16D | 2 23/25" | 11" x 4" x 3" | 3 14/25" | 10 14/25" | 22 mm | 316 Stainless Steel | 4 | NEMA 3R, NEMA 4, NEMA 4X | €475.20 | |
 |
1435MS16H | 3.22" | 10" x 7" x 3" | 6 14/25" | 9.81" | 22 mm | 316 Stainless Steel | 6 | NEMA 3R, NEMA 4, NEMA 4X | €628.20 | |
 |
1435MS16K | 3.22" | 10" x 9" x 3" | 8.81" | 9.81" | 22 mm | 316 Stainless Steel | 9 | NEMA 3R, NEMA 4, NEMA 4X | €745.20 | |
 |
1435MS16O | 3.22" | 12" x 9" x 3" | 8.81" | 12.06" | 22 mm | 316 Stainless Steel | 12 | NEMA 3R, NEMA 4, NEMA 4X | €853.20 |
