HAMILTON S-ZFWH-6DB 6 Inch Medium-Duty Kingpinless Swivel Plate Caster, 1200 Lbs. Load Rating
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€301.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Abrasion Resistance | High |
| Application | Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts |
| Bearing Type | Precision Sealed Ball |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Color/finish | Platinum Powder |
| Caster Frame Material | Steel |
| Caster Material | Polyurethane |
| Caster Product Group | Kingpinless Caster |
| Caster Rig Type | Spinfinity Forged Kingpinless |
| Caster Sub-type | Swivel |
| Caster Temp. Range Available | Yes |
| Caster Type | Kingpinless Swivel |
| Caster Wheel Material | Polyurethane |
| Caster Wheel Shape | Standard |
| Chemical Resistant | Medium |
| Core Color | Gray |
| Core Material | Polyurethane |
| Cushioning (resilience) | Medium |
| Durometer | 90 Shore A |
| Extended Lead | No |
| Features | Sealed Swivel Bearing |
| Frame Finish | Enamel |
| Frame Material | Steel |
| High Temp. Range (f) | 200°F |
| Hole Pattern | B |
| Impact Resistance | Medium |
| Includes | Spanner Bushing |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Load Capacity | 1200 lbs. |
| Load Capacity @ 3 Mph | 1200 lbs. |
| Load Rating | 1200 lbs. |
| Lock Type | No Lock Included |
| Low Temp. Range (f) | -50°F |
| Max. Temp. | 200°F |
| Min. Temp. Rating | -40°F |
| Moisture Resistance | Medium |
| Mounting Bolt | 3/8" |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 7 1/2" |
| Mounting Plate | 4" x 5" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 5" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 5" ( B ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3" x 3" |
| Overall Height | 7 1/2" |
| Plate Size | 4" x 5" |
| Raceway Type | Single Ball |
| Relative Capacity | High |
| Relative Cost | Medium |
| Replacement Wheel | 4DU68, W-620-DB-1/2 |
| Standards | Icwm |
| Swivel Construction | Kingpinless |
| Swivel Lock Type | No Lock Included |
| Swivel Offset | 2" |
| Swivel Or Rigid Caster | Swivel |
| Swivel Raceway Type | Single Ball |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Ball |
| Wheel Color | Green |
| Wheel Color/finish | Green Poly On Gray Center |
| Wheel Core Material | Cast Iron, Polyurethane |
| Wheel Diameter | 6" |
| Wheel Material @ Tread | Polyurethane |
| Wheel Type | Duralast |
| Wheel Width | 2" |
| Wheel/tread Color | Green |
| Wheel/tread Hardness | 95 Shore A |
| Wheel/tread Hardness Rating | Firm |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 2.43 |
Product Variants
| Product | Model | Wheel Dia. | Caster Sub-type | Load Rating | Mounting Height | Mounting Plate Size | Wheel Core Material | Overall Height | Wheel Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

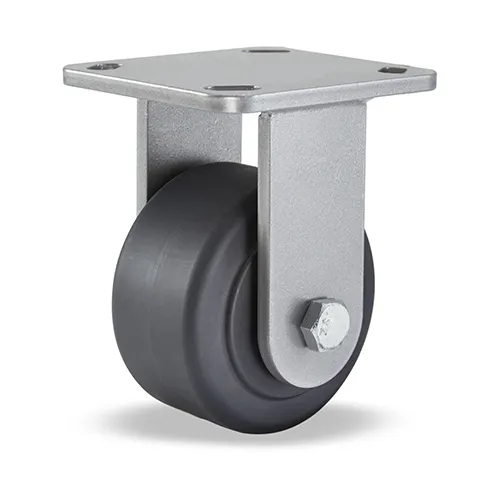

R-ZFWH-6DB | - | Rigid | 1200 lbs. | 7 1/2" | 4" x 4 1/2" | Polyurethane | 7 1/2" | - | €150.17 | |
 |
S-ZFWH-6FSB | - | Swivel | 2500 lbs. | 7 1/2" | 4" x 5" | Steel | 7 1/2" | Forged Steel | €332.24 | |
 |
S-ZFWH-8DB | - | Swivel | 1500 lbs. | 9 1/2" | 4" x 5" | Cast Iron | 9 1/2" | Duralast | €358.77 | |
 |
R-ZFWH-4DB | - | - | - | - | - | - | - | - | €98.90 | |
 |
R-ZFWH-4DB70 | - | - | - | - | - | - | - | - | €116.53 | |
 |
R-ZFWH-4MB | - | - | - | - | - | - | - | - | €75.10 | |
 |
R-ZFWH-4NYB | - | - | - | - | - | - | - | - | €161.33 |
