HAMILTON R-ZFWH-6DB 6 Inch Medium-Duty Rigid Plate Caster, 1200 Lbs. Load Rating
Get it by Tuesday, Aug 25
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
€165.02 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Material | Polyurethane |
| Caster Product Group | Rigid Caster |
| Caster Sub-type | Rigid |
| Caster Temp. Range Available | Yes |
| Caster Type | Rigid |
| Caster Wheel Material | Polyurethane |
| Caster Wheel Shape | Standard |
| Core Color | Gray |
| Core Material | Polyurethane |
| Durometer | 90 Shore A |
| Extended Lead | No |
| Features | Maintenance Free |
| Frame Finish | Enamel |
| Frame Material | Steel |
| Hole Pattern | B |
| Included | Spanner Bushing |
| Included Thread Guards | No |
| Inside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Load Rating | 1200 lbs. |
| Lock Type | No Lock Included |
| Max. Temp. | 200°F |
| Min. Temp. | -40°F |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 7 1/2" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 4 1/2" ( B ) |
| No. Of Mounting Holes | 4 |
| No. Of Wheels | 1 |
| Non-marking | Yes |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3" x 3" |
| Overall Height | 7 1/2" |
| Plate Size | 4" x 4 1/2" |
| Replacement Wheel | 4DU68 |
| Swivel Construction | Kingpinless |
| Swivel Lock Type | No Lock Included |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Ball |
| Wheel Color | Green |
| Wheel Core Material | Polyurethane |
| Wheel Dia. | 6" |
| Wheel Width | 2" |
| Wheel/tread Color | Green |
| Wheel/tread Hardness | 95 Shore A , Firm |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 3.92 |
Product Variants
| Product | Model | Wheel Dia. | Wheel Width | Load Rating | Wheel Bearing Type | Caster Sub-type | Mounting Height | Mounting Plate Size | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-ZFWH-6DB | 6" | 2" | 1200 lbs. | Precision Ball | Swivel | 7 1/2" | 4" x 5" | 7 1/2" | €334.18 | |
 |
S-ZFWH-6FSB | 6" | 2" | 2500 lbs. | Precision Ball | Swivel | 7 1/2" | 4" x 5" | 7 1/2" | €321.59 | |
 |

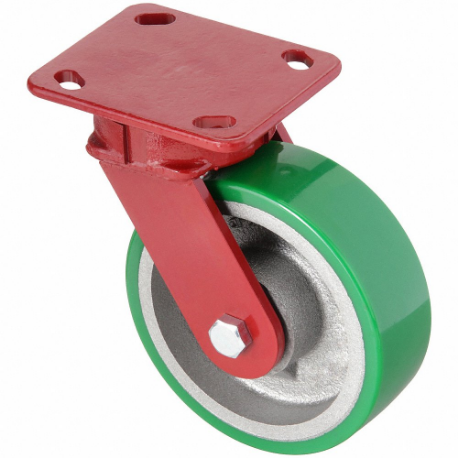

S-ZFWH-8DB | 8" | 2" | 1500 lbs. | Precision Ball | Swivel | 9 1/2" | 4" x 5" | 9 1/2" | €357.64 | |
 |
R-ZFWH-4DB | - | - | - | - | - | - | - | - | €98.90 | |
 |
R-ZFWH-4DB70 | - | - | - | - | - | - | - | - | €116.53 | |
 |

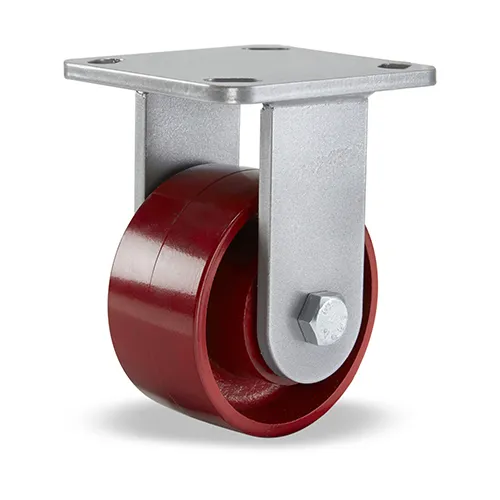

R-ZFWH-4MB | - | - | - | - | - | - | - | - | €75.10 | |
 |
R-ZFWH-4NYB | - | - | - | - | - | - | - | - | €161.33 |
