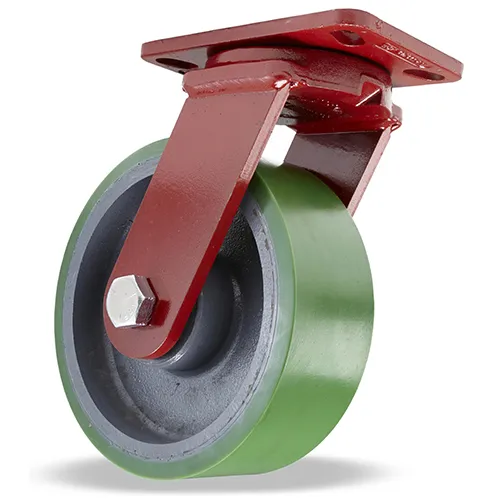

HAMILTON S-ZFFM-13DB Heavy Duty Swivel Caster, 10 X 3 Inch Size, Wheel
Get it by Friday, Aug 21
€353.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Abrasion Resistant | High |
| Bearing Type | Precision Sealed Ball |
| Bolt Hole 1 | 2 7/16" x 4 15/16" |
| Bolt Hole 2 | 3 3/8" x 5 1/4" |
| Caster Color/finish | Crimson Powder |
| Caster Rig Type | Spinfinity Forged Kingpinless |
| Chemical Resistant | Medium |
| Cushioning (resilience) | Medium |
| High Temp. Range (f) | 200°F |
| Impact Resistance | Medium |
| Load Capacity | 3000 lbs. |
| Load Capacity @ 3 Mph | 3000 lbs. |
| Low Temp. Range (f) | -50°F |
| Moisture Resistance | Medium |
| Mounting Bolt | 1/2" |
| Mounting Plate | 4 1/2" x 6 1/2" |
| Mounting Plate Length | 6 1/2" |
| Mounting Plate Width | 4 1/2" |
| Overall Height | 11 1/2" |
| Relative Capacity | High |
| Relative Cost | Medium |
| Replacement Wheel | W-1030-DB-3/4 |
| Swivel Offset | 2 1/2" |
| Swivel Or Rigid Caster | Swivel |
| Wheel Color/finish | Green Poly On Gray Center |
| Wheel Dia. | 10" |
| Wheel Face | 3" |
| Wheel Material @ Tread | Polyurethane |
| Wheel Type | Duralast |
Shipping Info:
| Ship weight (kg) | 15.75 |
| Ship height (cm) | 29.21 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Caster Sub-type | Load Rating | Mounting Height | Mounting Plate Size | Wheel/tread Material | Overall Height | Bearing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R-FM-83NYB | 8" | Rigid | 3200 lbs. | 10 1/4" | 5" x 7" | Nylon | - | - | €548.32 | |
 |
S-ZFFM-83DB | 8" | Swivel | 2500 lbs. | 10 1/4" | 4 1/2" x 6 1/2" | Polyurethane | 10 1/4" | Precision Sealed Ball | €470.72 | |
 |
S-ZFFM-63EGB | 6" | Swivel | 2450 lbs. | 7 1/2" | 4 1/2" x 6 1/2" | - | 7 1/2" | Precision Sealed Ball | €511.92 | |
 |
S-ZFFM-83NYB | 8" | Swivel | 3200 lbs. | 10 1/4" | 4 1/2" x 6 1/2" | - | 10 1/4" | Precision Sealed Ball | €711.88 | |
 |
S-ZFFM-63FSB | 6" | Swivel | 3200 lbs. | 7 1/2" | 4 1/2" x 6 1/2" | Steel | 7 1/2" | Precision Sealed Ball | €560.44 | |
 |
R-FM-13DB70 | - | - | - | - | - | - | - | - | €295.24 | RFQ
|
 |
R-FM-13EGB | - | - | - | - | - | - | - | - | €337.88 | RFQ
|
