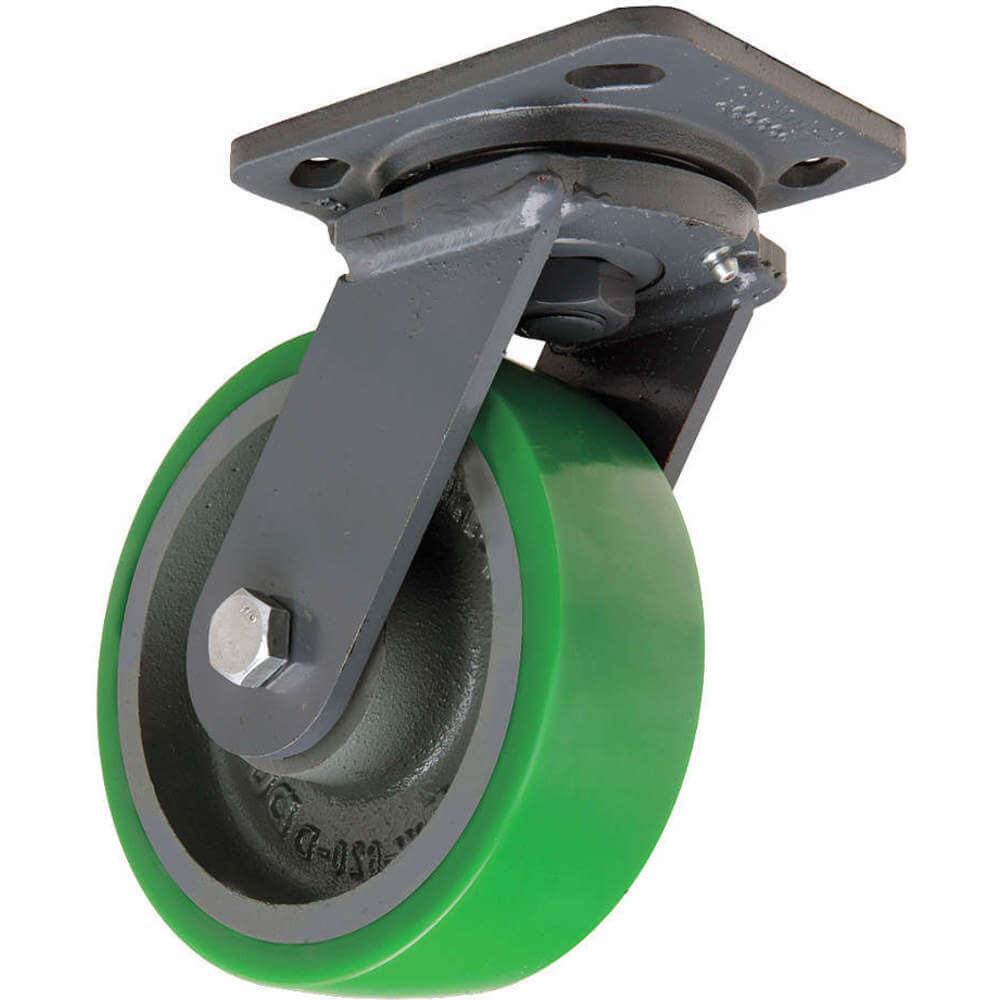

HAMILTON S-WH-6DB Swivel Plate Caster 1250 Lb 6 Inch Diameter
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€241.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Plate Caster |
| Bearing Type | Precision Ball |
| Caster Brake Included | Yes |
| Caster Load Rating Range | 1000 lbs. to 2999 lbs. |
| Caster Material | Polyurethane |
| Caster Product Group | Swivel Caster With Brake |
| Caster Temp. Range Available | Yes |
| Caster Type | Swivel |
| Caster Wheel Material | Polyurethane |
| Caster Wheel Shape | Standard |
| Core Color | Gray |
| Core Material | Cast Iron |
| Durometer | 90 Shore A |
| Extended Lead | No |
| Frame Finish | Gray Enamel |
| Frame Material | Steel |
| Hole Pattern | B |
| Inside Bolt Hole Spacing | 3" x 3" |
| Load Rating | 1250 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 3/8" |
| Non-marking | Yes |
| Number Of Wheels | 1 |
| Operating Temp. Range | -40°F to +200°F |
| Outside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Overall Height | 7 1/2" |
| Plate Size | 4" x 5" |
| Plate Thickness | 1/4" |
| Plate Type | B |
| Raceway Type | Precision Ball |
| Swivel Radius | 0.0" |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Precision Ball |
| Wheel Color | Green |
| Wheel Diameter | 6" |
| Wheel Material | Polyurethane |
| Wheel Width | 2" |
Shipping Info:
| Ship weight (kg) | 5.85 |
| Ship height (cm) | 14.22 |
| Ship length (cm) | 23.37 |
| Ship width (cm) | 19.05 |
| HS code | 8302200000 |
| Country of Origin | US |
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Bearing Type | Load Rating | Caster Brake Type | Caster Load Rating Range | Mounting Height | Caster Sub-type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-WH-6SPB | 2 5/8" x 3 5/8" | 3" x 3" | Precision Ball | 940 lbs. | No Brake Included | 300 lbs. to 999 lbs. | 7 1/2" | Swivel | €264.63 | |
 |
S-WH-8SPB | 2 5/8" x 3 5/8" | 3" x 3" | Precision Ball | 1200 lbs. | No Brake Included | 1000 lbs. to 2999 lbs. | 9 1/2" | Swivel | €302.29 | |
 |
R-WH-6SPB | 2 5/8" x 3 5/8" | 3" x 3" | Precision Ball | 960 lbs. | No Brake Included | - | 7" | Rigid | €188.85 | |
 |
R-WH-8SPB | 3" x 3" | 2 5/8" x 3 5/8" | Precision Ball | 1200 lbs. | - | 1000 lbs. to 2999 lbs. | - | - | €201.39 | |
 |
R-WH-4DB | 2 5/8" x 3 5/8" | 3" x 3" | Precision Ball | 750 lbs. | No Brake Included | 300 lbs. to 999 lbs. | 5 5/8" | Rigid | €123.74 | |
 |
R-WH-4MB | 2 5/8" x 3 5/8" | 3" x 3" | Precision Ball | 1000 lbs. | No Brake Included | 1000 lbs. to 2999 lbs. | 5 5/8" | Rigid | €106.79 | |
 |
R-WH-4P | 2 5/8" x 3 5/8" | 3" x 3" | Roller | 800 lbs. | No Brake Included | 300 lbs. to 999 lbs. | 5 5/8" | Rigid | €74.56 |
