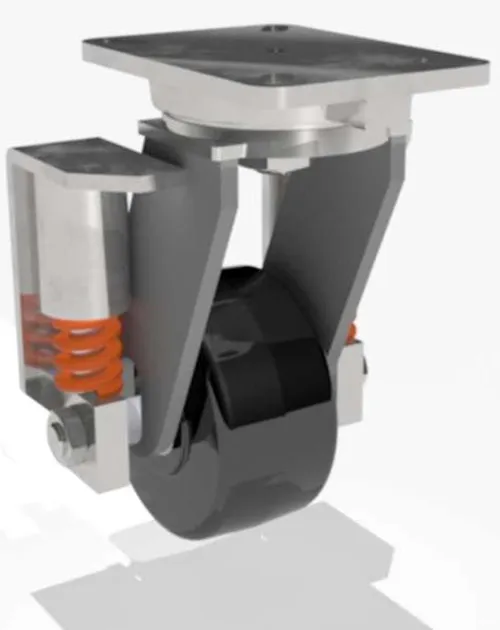

HAMILTON S-SPCH-63PH-1 Spring Loaded Swivel Caster, 6 X 3 Inch Size, Plastex Phenolic Wheel
Get it by Tuesday, Aug 25
€712.17 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Abrasion Resistant | Medium |
| Bearing Type | Straight Roller |
| Bolt Hole 1 | 3 3/8" x 5 1/4" |
| Bolt Hole 2 | 4 1/8" x 6 1/8" |
| Caster Color/finish | Platinum Powder |
| Caster Rig Type | Integral Forged Kingpin |
| Chemical Resistant | Poor |
| Cushioning (resilience) | Low |
| High Temp. Range (f) | 300°F |
| Impact Resistance | Medium |
| Low Temp. Range (f) | -50°F |
| Max. Capacity 1 | 850 lbs. |
| Min. Capacity 1 | 150 lbs. |
| Moisture Resistance | Low |
| Mounting Bolt | 1/2" |
| Mounting Plate | 5 1/4" x 7 1/4" |
| Mounting Plate Length | 7 1/4" |
| Mounting Plate Width | 5 1/4" |
| Overall Height | 11 1/4" |
| Relative Capacity | High |
| Relative Cost | Low |
| Replacement Wheel | W-630-P-1 |
| Swivel Offset | 2 1/2" |
| Swivel Or Rigid Caster | Swivel |
| Wheel Color/finish | Black |
| Wheel Core Material | Phenolic |
| Wheel Dia. | 6" |
| Wheel Face | 3" |
| Wheel Material @ Tread | Phenolic |
| Wheel Type | Plastex |
Shipping Info:
| Ship weight (kg) | 15.75 |
| Ship height (cm) | 28.58 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 15.24 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Width | Load Rating | Caster Sub-type | Mounting Height | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-SPCH-63DB-2 | 6" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | - | 1630 lbs. | Swivel | 11 1/4" | 11 1/4" | €932.37 | |
 |
R-SPCH-63DB-2 | 6" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | - | 1630 lbs. | Rigid | 11 1/4" | 11 1/4" | €797.91 | |
|
S-SPCH-83DB-2 | 8" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | 3" | 1630 lbs. | Swivel | 12 1/4" | 12 1/4" | €948.20 | |
|
R-SPCH-83DB-2 | 8" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | - | 1630 lbs. | Rigid | 12 1/4" | - | €738.52 | |
 |
R-SPCH-10PH-1 | 10 | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | 2.5 | 800 | - | - | - | €474.96 | |
|
R-SPCH-10PT-1 | 10 | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | 2.5 | 800 | - | - | - | €561.01 | |
 |
R-SPCH-12DB-1 | - | - | - | - | - | - | - | - | €712.80 |
