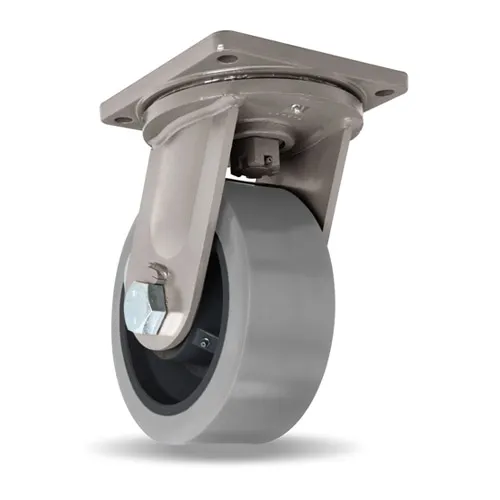

HAMILTON S-MD-105GB95 Maxi-Duty Swivel Caster, 10 X 4 Inch Size, Forged Steel Center
5000 lbs.
Swivel
5"
Get it by Wednesday, Dec 24
€1,152.57 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Abrasion Resistance | High |
| Bearing Type | Precision Sealed Ball |
| Bolt Holes | 7" x 7" |
| Caster Color/finish | Platinum Powder |
| Caster Rig Type | Integral Forged Kingpin |
| Chemical Resistant | Medium |
| Cushioning (resilience) | Medium |
| High Temp. Range (f) | 200°F |
| Impact Resistance | High |
| Load Capacity | 5000 lbs. |
| Load Capacity @ 3 Mph | 5000 lbs. |
| Low Temp. Range (f) | -50°F |
| Moisture Resistance | Medium |
| Mounting Bolt | 5/8" |
| Mounting Plate | 8 1/2" x 8 1/2" |
| Overall Height | 13" |
| Relative Capacity | High |
| Relative Cost | High |
| Replacement Wheel | W-1051-GB95-1-1/4 |
| Swivel Offset | 3" |
| Swivel Or Rigid Caster | Swivel |
| Tread Thickness | 1" |
| Wheel Color/finish | Thick Gray Poly On Black Center |
| Wheel Dia. | 10" |
| Wheel Face | 5" |
| Wheel Material @ Tread | Polyurethane |
| Wheel Type | Duraglide |
Shipping Info:
| Ship weight (kg) | 38.25 |
| Ship height (cm) | 33.02 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Wheel Bearing Type | Load Rating | Caster Load Rating Range | Caster Sub-type | Wheel/tread Material | Mounting Height | Wheel Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R-MD-103FST | 10" | Tapered Roller | 16000 lbs. | Greater Than 6000 lbs. | Rigid | Steel | 13" | - | €773.31 | |
 |
R-MD-104FST | 10" | Tapered Roller | 18000 lbs. | Greater Than 6000 lbs. | Rigid | Steel | 13" | 4" | €843.14 | |
 |
R-MD-104SYT | 10" | Tapered Roller | 5000 lbs. | 3000 lbs. to 5999 lbs. | Rigid | Polyurethane | 13" | 4" | €1,017.41 | |
 |
R-MD-124SYT | - | Tapered Roller | 6000 lbs. | Greater Than 6000 lbs. | Rigid | Polyurethane | 15 1/2" | 4" | €1,168.10 | |
 |
R-MD-63FST | - | Precision Tapered Roller | 12000 lbs. | Greater Than 6000 lbs. | - | - | - | - | €659.59 | |
 |
R-MD-83FST | - | Tapered Roller | 14000 lbs. | Greater Than 6000 lbs. | Rigid | Steel | 11" | - | €686.57 | |
 |
R-MD-83SYT | - | Tapered Roller | 3500 lbs. | 3000 lbs. to 5999 lbs. | Rigid | Polyurethane | 11" | 3" | €737.64 |
