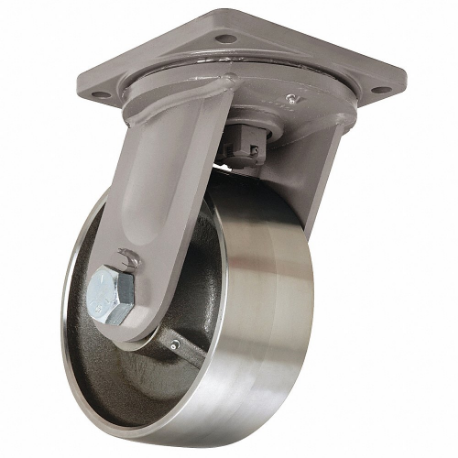

HAMILTON S-MD-104FST-4SL-HCB Standard Plate Caster, 10 Inch Dia, 13 Inch Height
Get it by Friday, Dec 19
10.00% off
€1,833.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Aerospace Tooling, All Purpose Industrial/Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts |
| Brake Location | Face |
| Brake Type | Face Contact Brake |
| Caster Brake Type | Face Contact Brake |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Mounting Type | Plate |
| Caster Sub-type | Swivel |
| Core Color | Silver |
| Esd Conductive | Yes |
| For Axle Dia. | 1 1/4" |
| For Surface Type | Concrete |
| Frame Color | Silver |
| Frame Construction | Forged |
| Frame Finish | Powder Coated |
| Includes Fasteners | No |
| Includes Mounting Fasteners | No |
| Includes Spanner Bushing | Yes |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 7" x 7" |
| Load Rating | 18000 lbs. |
| Mounting Bolt Dia. | 5/8" |
| Mounting Height | 13" |
| Mounting Plate Bolt Hole Pattern | D |
| Mounting Plate Size | 8 1/2" x 8 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 8 1/2" X 8 1/2" ( D ) |
| Mounting Plate Thickness | 5/8" |
| Non-marking | No |
| Nsf Listed | No |
| Number Of Mounting Holes | 4 |
| Number Of Positions | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -40°F to +320°F |
| Outside Bolt Hole Spacing | 7" x 7" |
| Overall Wheel Width | 4" |
| Standards | Icwm |
| Swivel Bearing Seal Type | Open |
| Swivel Construction | Kingspin |
| Swivel Lead | 3" |
| Swivel Lock Type | Directional Lock |
| Swivel Raceway Type | Roller |
| Swivel Radius | 8 3/8" |
| Tread Material, Wheel Material | Steel |
| Tread Shape | Standard |
| Wheel Bearing Material | Steel |
| Wheel Bearing Type | Tapered Roller |
| Wheel Core Material | Forged Steel |
| Wheel Core Type | Solid |
| Wheel Diameter | 10" |
| Wheel Type | Flat Free |
| Wheel Width | 4" |
| Wheel/tread Color | Silver |
| Wheel/tread Hardness | 179 BHN |
| Wheel/tread Hardness Rating | Extra Hard |
| With Toe Plate | No |
Shipping Info:
| Ship weight (kg) | 45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Wheel Width | Wheel Bearing Type | Non-marking | Brake Type | Load Rating | Wheel Dia. | Outside Bolt Hole Spacing | Mounting Bolt Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-MDK-104HFSB-H4SL-HCB | 4" | Precision Ball | No | Face Contact Brake | 5750 lbs. | - | 7" x 7" | 5/8" | €3,501.37 | |
 |
S-MDK-124HFSB-H4SL-HCB | 4" | Precision Ball | No | Face Contact Brake | 6250 lbs. | - | 7" x 7" | 5/8" | €3,556.99 | |
 |
S-FMK-63HFSB-H4SL-FB | 3" | Precision Ball | No | Side Pedal Brake | 2400 lbs. | - | 3 3/8" x 5 1/4" | 1/2" | €1,527.65 | |
 |
S-FMK-63HMB-H4SL-FB | 3" | Precision Ball | No | Side Pedal Brake | 1000 lbs. | - | 3 3/8" x 5 1/4" | 1/2" | €1,159.74 | |
 |
S-FMK-83HMB-H4SL-FB | 3" | Precision Ball | No | Side Pedal Brake | 1040 lbs. | - | 3 3/8" x 5 1/4" | 1/2" | €1,381.59 | |
 |
S-FMK-83HFSB-H4SL-FB | 3" | Precision Ball | No | Side Pedal Brake | 1280 lbs. | - | 3 3/8" x 5 1/4" | 1/2" | €1,744.20 | |
 |
S-MDK-83HFSB-H4SL-HCB | 3" | Precision Ball | No | Face Contact Brake | 5500 lbs. | - | 7" x 7" | 5/8" | €6,358.10 |
