HAMILTON S-MD-104FST-4SL Swivel Plate Caster With 4-position Directional Lock 18000lb
Get it by Tuesday, Dec 23
10.00% off
€982.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Plate Caster |
| Bearing Type | Hardened Precision Roller |
| Caster Brake Included | Yes |
| Caster Load Rating Range | Greater Than 6000 lbs. |
| Caster Material | Forged Steel |
| Caster Temp. Range Available | Yes |
| Caster Type | Swivel |
| Caster Wheel Material | Forged Steel |
| Caster Wheel Shape | Standard |
| Core Color | Silver |
| Core Material | Forged Steel |
| Durometer | 179 BHN |
| Extended Lead | No |
| Frame Finish | Gray Enamel |
| Frame Material | Steel |
| Hole Pattern | D |
| Inside Bolt Hole Spacing | 7" x 7" |
| Load Rating | 18000 lbs. |
| Mounting Bolt Dia. | 5/8" |
| Non-marking | No |
| Number Of Wheels | 1 |
| Operating Temp. Range | -40°F to +250°F |
| Outside Bolt Hole Spacing | 7" x 7" |
| Plate Size | 8 1/2" x 8 1/2" |
| Plate Thickness | 5/8" |
| Plate Type | D |
| Raceway Type | Hardened Precision Roller |
| Wheel Bearing Type | Precision Tapered Roller |
| Wheel Bearings | Precision Tapered Roller |
| Wheel Color | Clear |
| Wheel Material | Forged Steel |
| Wheel Width | 4" |
Shipping Info:
| Ship weight (kg) | 39.15 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 27.94 |
| HS code | 8302200000 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Width | Wheel Bearing Type | Load Rating | Mounting Height | Frame Finish | Non-marking | Overall Height | Inside Bolt Hole Spacing | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

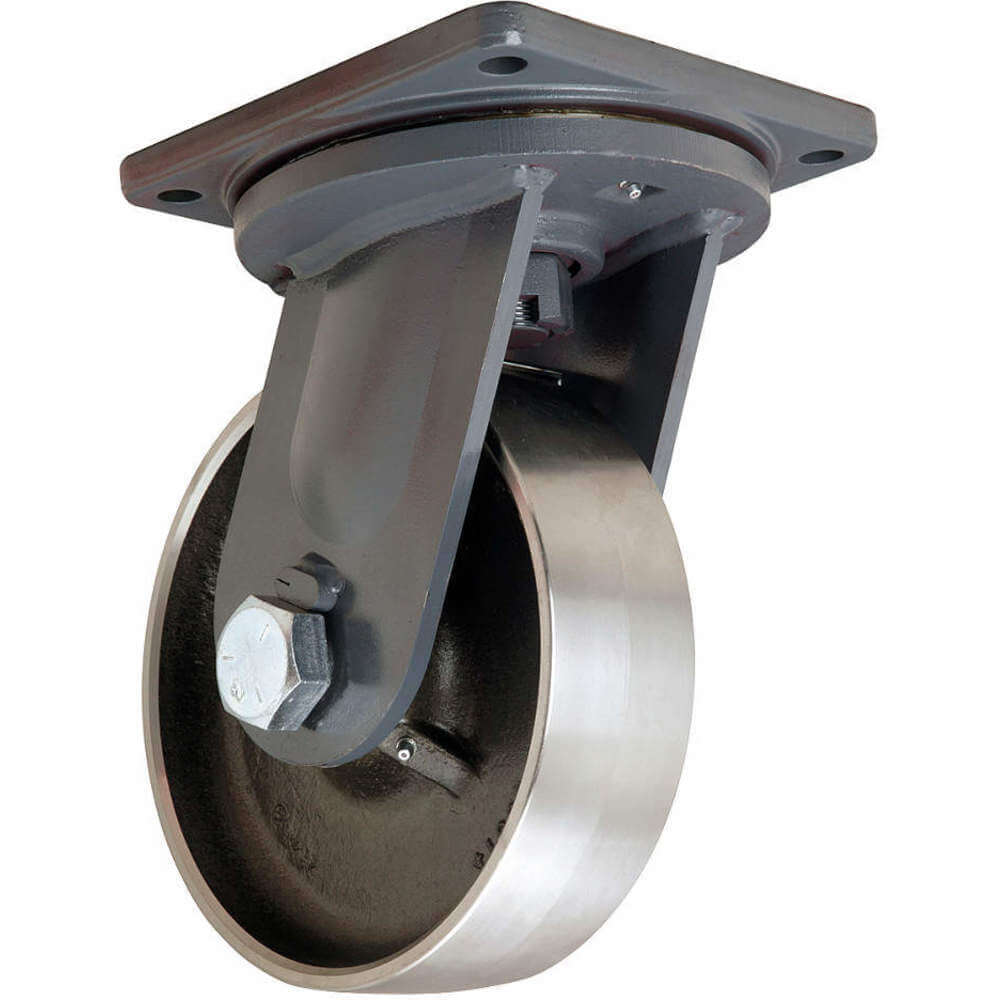

S-MD-103FST-4SL | 3" | Tapered Roller | 16000 lbs. | 13" | Enamel | Yes | - | 7" x 7" | €1,149.98 | |
 |
S-MD-63FST-4SL | 3" | Tapered Roller | 12000 lbs. | 10" | Enamel | Yes | 10" | 7" x 7" | €936.55 | |
 |

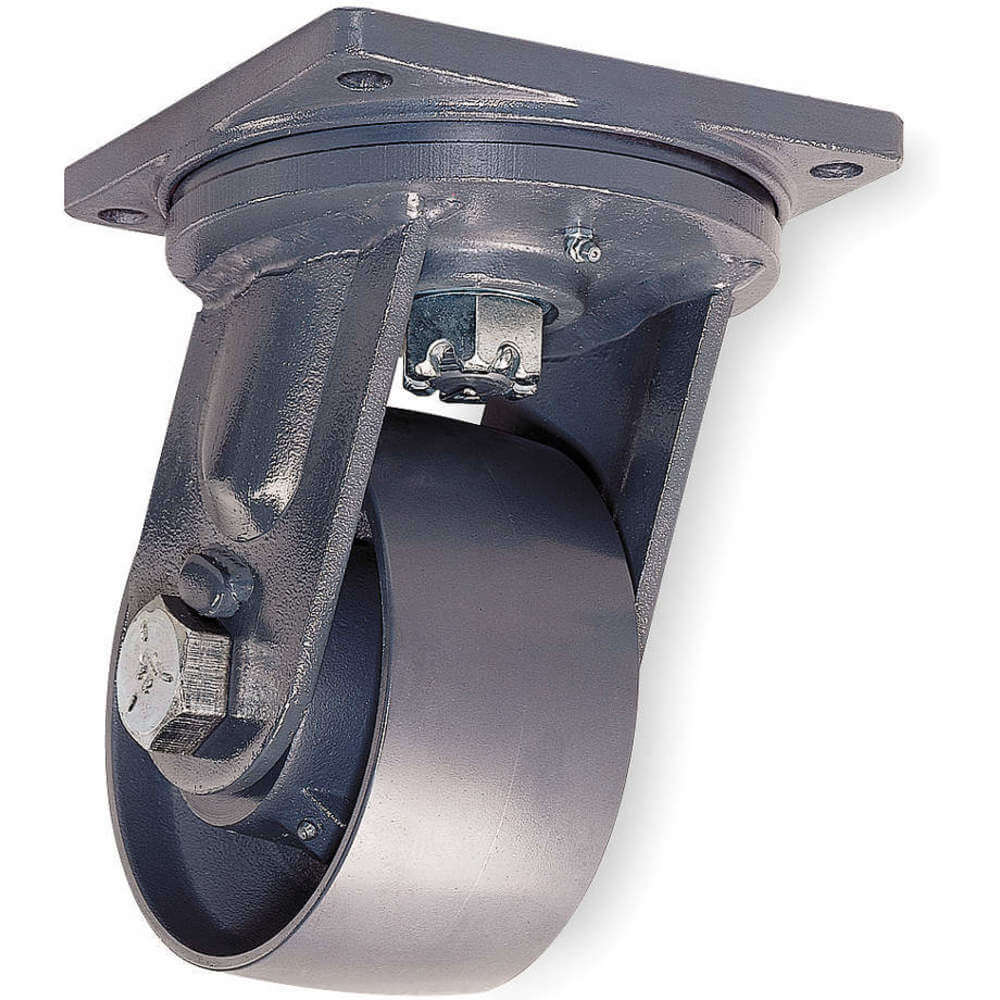

S-MD-83FST-4SL | 3" | Tapered Roller | 14000 lbs. | 11" | Enamel | Yes | 11" | 7" x 7" | €953.09 | |
 |

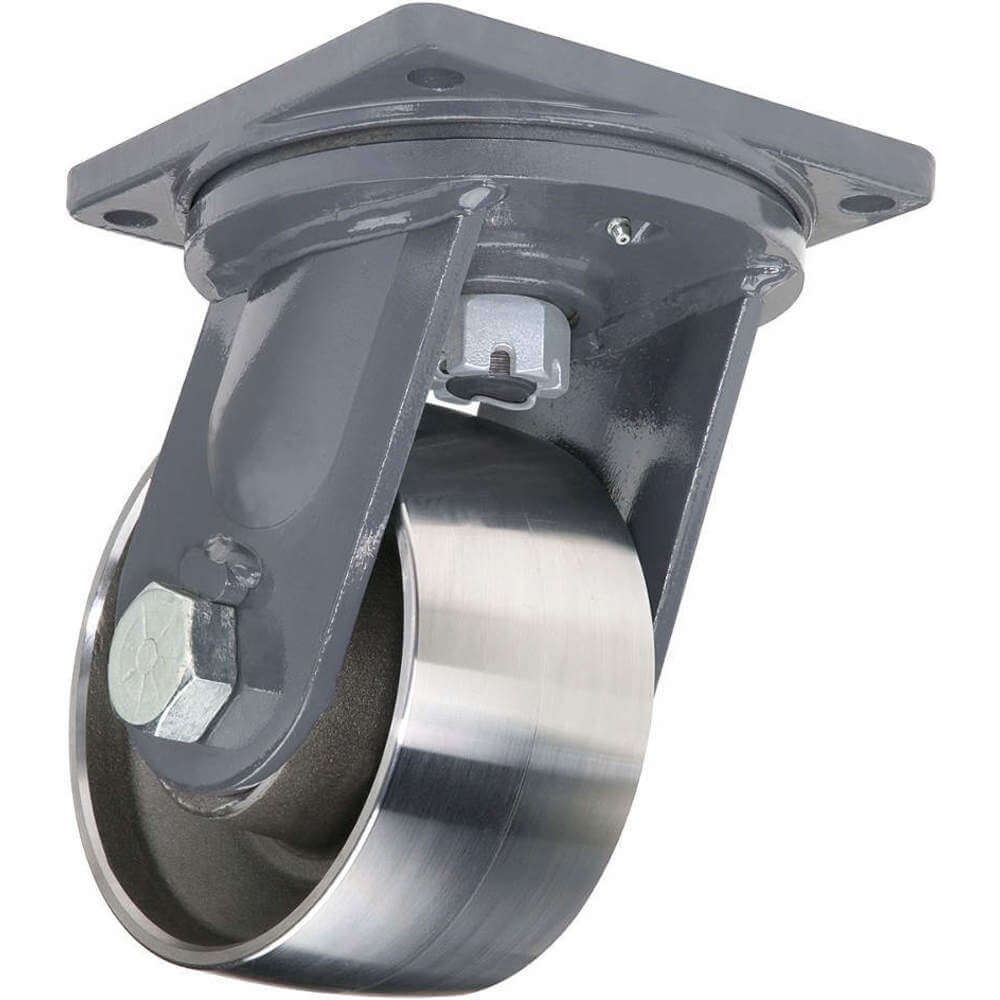

S-MD-84FST-4SL | 4" | Tapered Roller | 17000 lbs. | 11" | Enamel | Yes | 11" | 7" x 7" | €1,043.11 |
