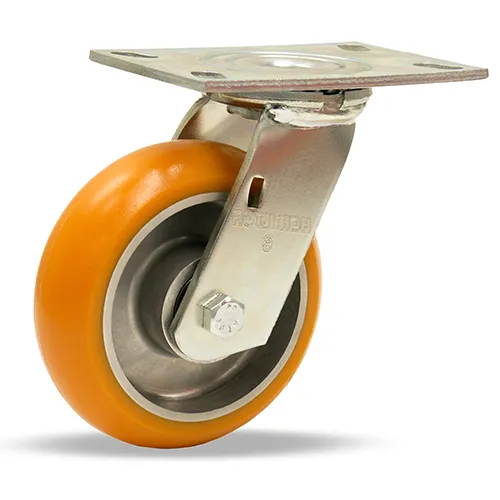

HAMILTON S-GS-62EMB General Service Swivel Caster, 6 X 2 Inch Size, Donut Tread on Aluminum Wheel
800 lbs.
6"
Swivel
Get it by Monday, Dec 22
€93.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Abrasion Resistance | Medium |
| Bearing Type | Precision Sealed Ball |
| Bolt Hole 1 | 2 7/16" x 4 15/16" |
| Bolt Hole 2 | 3 3/8" x 5 1/4" |
| Caster Color/finish | Bright Zinc Plated |
| Caster Rig Type | Cold Forged/Stamped |
| Chemical Resistant | Medium |
| Cushioning (resilience) | Medium |
| High Temp. Range (f) | 200°F |
| Impact Resistance | Low |
| Load Capacity | 800 lbs. |
| Load Capacity @ 3 Mph | 800 lbs. |
| Low Temp. Range (f) | -40°F |
| Moisture Resistance | Medium |
| Mounting Bolt | 1/2" |
| Mounting Plate | 4 1/2" x 6 1/4" |
| Mounting Plate Length | 6 1/4" |
| Mounting Plate Width | 4 1/2" |
| Overall Height | 7 1/2" |
| Relative Capacity | Medium |
| Relative Cost | Medium |
| Replacement Wheel | W-622-EMB-1/2 |
| Swivel Offset | 1.68" |
| Swivel Or Rigid Caster | Swivel |
| Wheel Color/finish | Orange Tread On Alum Center |
| Wheel Core Material | Aluminum |
| Wheel Dia. | 6" |
| Wheel Face | 2" |
| Wheel Material @ Tread | Polyurethane |
| Wheel Type | Ergo-Tech |
Shipping Info:
| Ship weight (kg) | 4.5 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 15.24 |
| Country of Origin | US |
