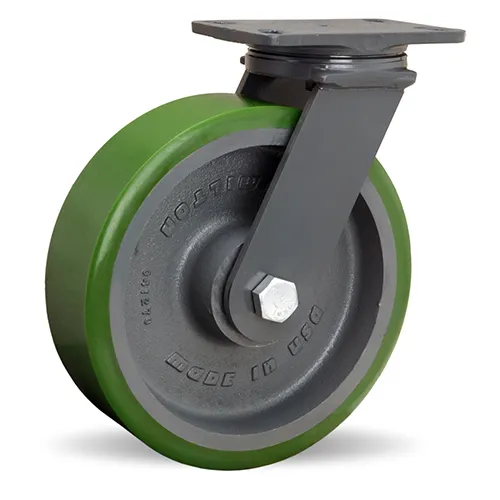

HAMILTON S-ES-13DB Extended Service Swivel Caster, 10 X 3 Inch Size, 3/4 Inch Sealed Precision Ball Bearing
Get it by Tuesday, Aug 18
€342.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Application | Towline Carts, High Temperature 200°F, AGV Systems, Plant Trailers |
| Bearing Type | Sealed Precision Ball |
| Caster Core Material | Cast Iron |
| Caster Frame Material | Forged Steel |
| Caster Plate Hole Pattern | A |
| Caster Temp. Range | -50°F to +200°F |
| Caster Wheel Bearings | Precision Ball |
| Caster Wheel Shape | Standard |
| Caster Wheel/tread Material | Polyurethane |
| Core Color | Gray |
| Finish, Coating | Enamel |
| Inside Bolt Hole Spacing | 2 7/16" x 4 15/16" |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 11.5 |
| No. Of Mounting Holes | 4 |
| No. Of Wheel | 1 |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Overall Height | 12 1/16" |
| Plate Size | 4 1/2" x 6 1/2" |
| Replacement Wheel | W-1030-DB-3/4 |
| Wheel Dia. | 10 |
| Wheel Material | Polyurethane On Cast Iron |
| Wheel Width | 3 |
| Wheel/tread Color | Green |
| Wheel/tread Hardness Rating | Hard |
Shipping Info:
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 30.64 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Wheel Width | Mounting Height | Load Rating | Caster Frame Material | Wheel/tread Hardness Rating | Caster Temp. Range | Bearing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

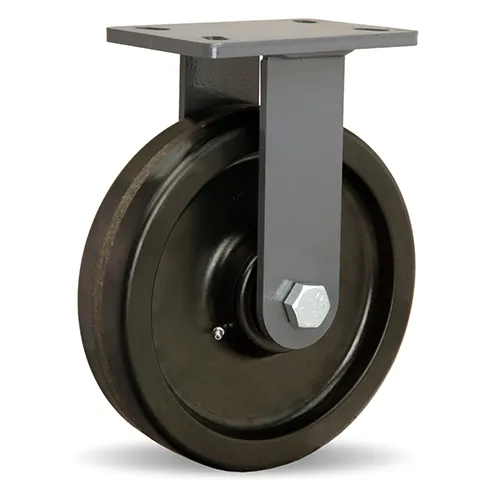

R-ES-10PH | 10" | 2 1/2" | - | - | - | - | - | Straight Roller | €141.28 | |
|
R-ES-10PT | - | - | - | - | - | - | - | - | €213.58 | |
 |

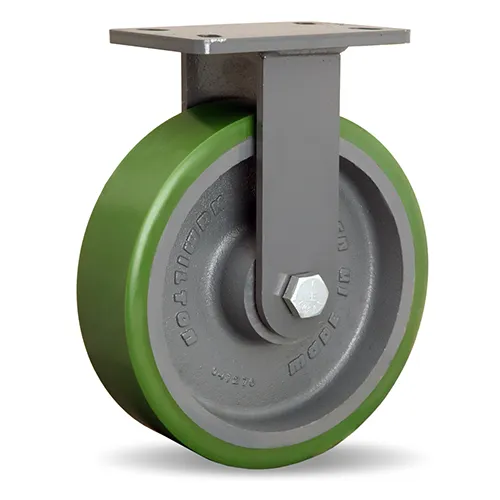

R-ES-13DB | - | - | - | - | - | - | - | - | €268.06 | |
 |

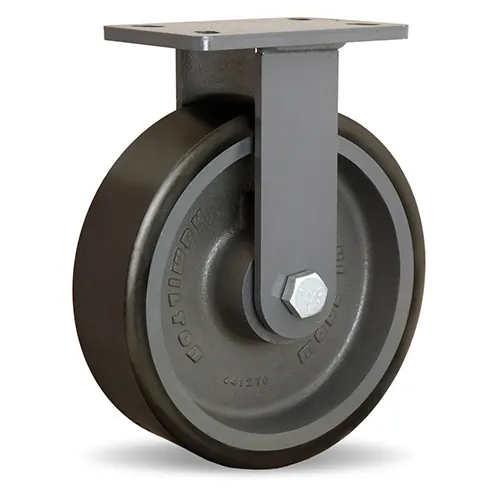

R-ES-13DB70 | - | - | - | - | - | - | - | - | €310.20 | |
|
R-ES-13DT | 10" | 3" | - | - | - | - | - | Tapered Roller | €327.19 | |
 |

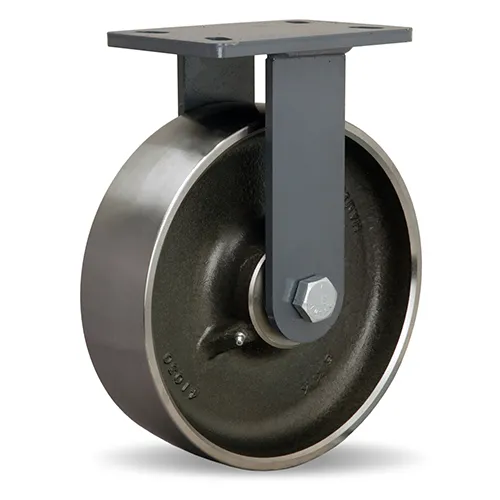

R-ES-13FSB | 10 | 3 | - | 2400 | Steel | - | - | - | €371.80 | |
 |

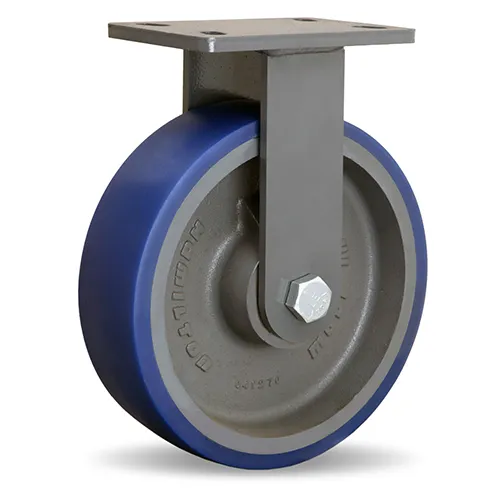

R-ES-13SPB | - | - | - | - | - | - | - | - | €284.49 |
