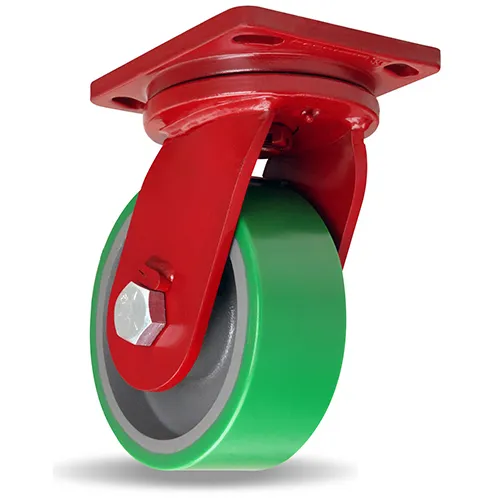

HAMILTON S-EPSD-83DB Swivel Caster featuring HPI Wheel, Swivel Technology, 8 X 3 Inch Size, Cast Iron Wheel
Get it by Monday, Jul 6
€433.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Abrasion Resistant | High |
| Bearing Type | Precision Sealed Ball |
| Bolt Hole 1 | 3 7/8" x 6 1/4" |
| Bolt Hole 2 | 5 1/8" x 5 3/4" |
| Caster Color/finish | Crimson Powder |
| Caster Rig Type | Integral Forged Kingpin |
| Chemical Resistant | Medium |
| Cushioning (resilience) | Medium |
| High Temp. Range (f) | 200°F |
| Impact Resistance | Medium |
| Load Capacity | 2500 lbs. |
| Load Capacity @ 3 Mph | 2500 lbs. |
| Low Temp. Range (f) | -50°F |
| Moisture Resistance | Medium |
| Mounting Bolt | 1/2" |
| Mounting Plate | 6 1/2" x 7 1/2" |
| Overall Height | 10 1/2" |
| Relative Capacity | High |
| Relative Cost | Medium |
| Replacement Wheel | W-830-DB-1 |
| Swivel Offset | 2 1/2" |
| Swivel Or Rigid Caster | Swivel |
| Wheel Color/finish | Green Poly On Gray Center |
| Wheel Dia. | 8" |
| Wheel Face | 3" |
| Wheel Material @ Tread | Polyurethane |
| Wheel Type | Duralast |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 20.32 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Width | Load Rating | Caster Sub-type | Wheel/tread Material | Wheel Bearing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-EPSD-63FST | 6" | 5 1/8" x 5 3/4" | 3 7/8" x 6 1/4" | - | 10000 lbs. | Swivel | Steel | Tapered Roller | €632.88 | |
|
S-EPSD-83FST | 8" | 5 1/8" x 5 3/4" | 3 7/8" x 6 1/4" | - | 10000 lbs. | Swivel | Steel | Tapered Roller | €652.88 | |
|
S-EPSD-83NYB | 8" | 5 1/8" x 5 3/4" | 3 7/8" x 6 1/4" | 3" | 6500 lbs. | Swivel | Nylon | Precision Ball | €725.18 | |
 |
R-EPSD-63FST | 6" | 5 1/8" x 5 3/4" | 3 7/8" x 6 1/4" | - | 10000 lbs. | Rigid | Steel | Tapered Roller | €326.40 | |
|
R-EPSD-83FST | 8" | 5 1/8" x 5 3/4" | 3 7/8" x 6 1/4" | - | 10000 lbs. | Rigid | Steel | Tapered Roller | €451.33 | |
|
R-EPSD-83NYB | 8" | 5 1/8" x 5 3/4" | 3 7/8" x 6 1/4" | - | 7000 lbs. | Rigid | Nylon | Precision Ball | €531.98 | |
 |
R-EPSD-104FST | - | - | - | - | - | - | - | - | €602.63 |
