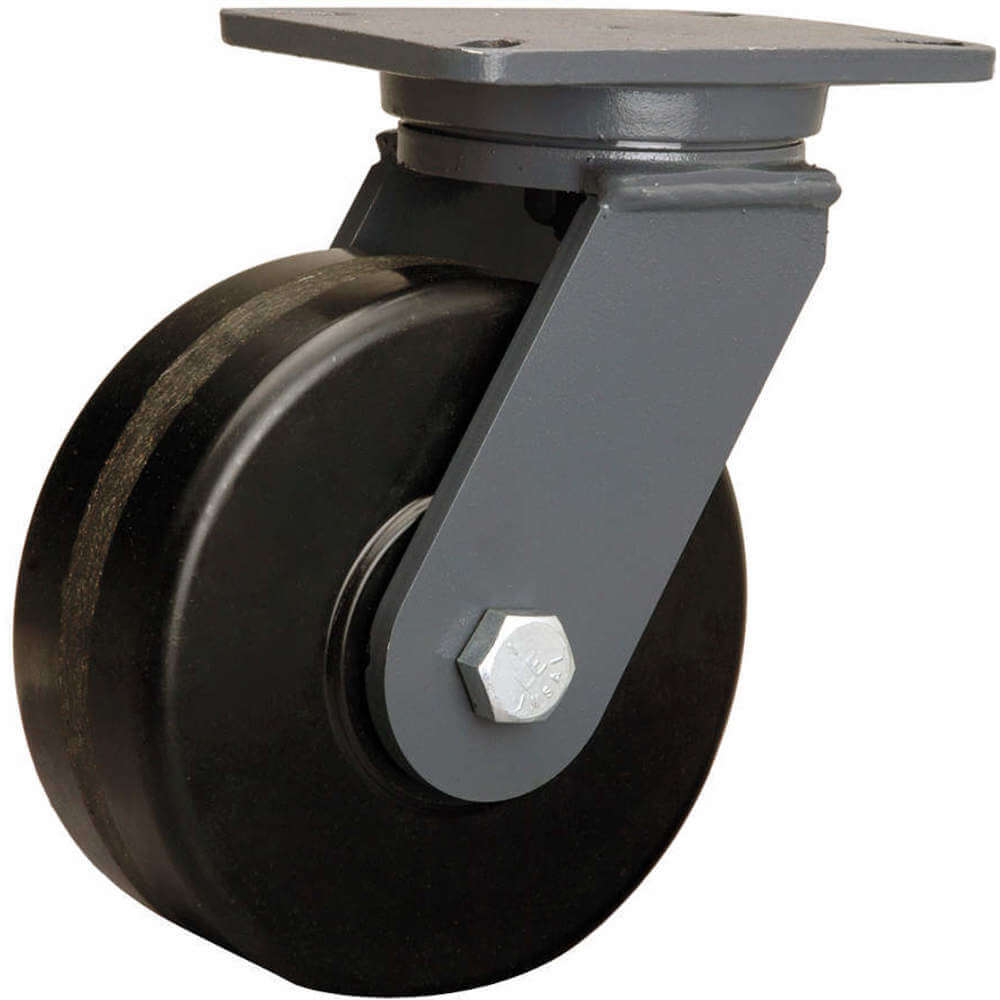

HAMILTON S-CH-83PH Swivel Plate Caster 3000 Lb 8 Inch Diameter
3000 lbs.
8"
3"
Swivel
Get it by Friday, Dec 19
10.00% off
€307.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Plate Caster |
| Abrasion Resistance | Medium |
| Application | Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts |
| Bearing Type | Precision Ball |
| Bolt Hole 1 | 3 3/8" x 5 1/4" |
| Bolt Hole 2 | 4 1/8" x 6 1/8" |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Color/finish | Platinum Powder |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 3000 lbs. to 5999 lbs. |
| Caster Material | Phenolic |
| Caster Product Group | Swivel Caster |
| Caster Rig Type | Integral Forged Kingpin |
| Caster Sub-type | Swivel |
| Caster Temp. Range Available | Yes |
| Caster Type | Swivel |
| Caster Wheel Material | Phenolic |
| Caster Wheel Shape | Standard |
| Chemical Resistant | Poor |
| Core Color | Black |
| Core Material | Phenolic |
| Cushioning (resilience) | Low |
| Durometer | 90 Shore D |
| Extended Lead | No |
| Frame Finish | Enamel |
| Frame Material | Steel |
| High Temp. Range (f) | 300°F |
| Hole Pattern | A |
| Impact Resistance | Medium |
| Includes | Spanner Bushing |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 4 1/8" x 6 1/8" |
| Load Capacity | 3000 lbs. |
| Load Capacity @ 3 Mph | 3000 lbs. |
| Load Rating | 3000 lbs. |
| Lock Type | No Lock Included |
| Low Temp. Range (f) | -50°F |
| Moisture Resistance | Low |
| Mounting Bolt | 1/2" |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 10 1/2" |
| Mounting Plate | 5 1/4" x 7 1/4" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Length | 7 1/4" |
| Mounting Plate Size | 5 1/4" x 7 1/4" |
| Mounting Plate Size & Bolt Hole Pattern | 5 1/4" X 7 1/4" ( A ) |
| Mounting Plate Width | 5 1/4" |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -50°F to +300°F |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Overall Height | 10 1/2" |
| Plate Size | 5 1/4" x 7 1/4" |
| Plate Thickness | 1/2" |
| Plate Type | A |
| Raceway Type | Precision Ball |
| Relative Capacity | High |
| Relative Cost | Low |
| Replacement Wheel | 5VJ94, W-830-P-1 |
| Standards | Icwm |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Offset | 2 1/2" |
| Swivel Or Rigid Caster | Swivel |
| Swivel Raceway Type | Single Ball |
| Tread Shape | Standard |
| Wheel Bearing Type | Roller |
| Wheel Bearings | Roller |
| Wheel Color | Black |
| Wheel Color/finish | Black |
| Wheel Core Material | Phenolic |
| Wheel Diameter | 8" |
| Wheel Face | 3" |
| Wheel Material | Phenolic |
| Wheel Material @ Tread | Phenolic |
| Wheel Type | Plastex |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | 90 Shore D |
| Wheel/tread Hardness Rating | Hard |
| Wheel/tread Material | Phenolic |
Shipping Info:
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 22.86 |
| HS code | 3926909980 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Bearing Type | Load Rating | Caster Brake Type | Mounting Height | Caster Sub-type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R-CH-13DB | - | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Precision Ball | 3000 lbs. | No Brake Included | 12 1/2" | Rigid | €373.41 | |
 |
R-CH-13FSB | 10" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Precision Ball | 4000 lbs. | No Brake Included | 12 1/2" | Rigid | €511.30 | |
 |
R-CH-13PH | - | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Roller | 2900 lbs. | No Brake Included | 12 1/2" | Rigid | €223.24 | |
 |
R-CH-63DB | - | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Precision Ball | 2200 lbs. | No Brake Included | 8" | Rigid | €244.19 | |
 |
R-CH-63FSB | - | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Precision Ball | 4000 lbs. | No Brake Included | 8" | Rigid | €358.82 | |
 |
R-CH-63PH | - | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | Roller | 2000 lbs. | No Brake | 8" | - | €172.62 | |
 |
R-CH-83DB | - | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Precision Ball | 2500 lbs. | No Brake Included | 10 1/2" | Rigid | €307.70 |
