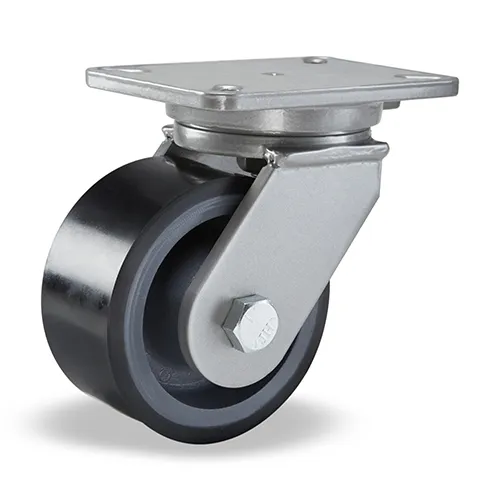

HAMILTON S-CH-63DB70 Champion Swivel Caster, 6 X 3 Inch Size, 3/4 Inch Sealed Precision Ball Bearing
2860 lbs.
6"
3"
Swivel
Get it by Monday, Dec 22
€305.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Abrasion Resistance | High |
| Bolt Hole 1 | 3 3/8" x 5 1/4" |
| Bolt Hole 2 | 4 1/8" x 6 1/8" |
| Caster Color/finish | Platinum Powder |
| Caster Rig Type | Integral Forged Kingpin |
| Chemical Resistant | Medium |
| Cushioning (resilience) | Medium |
| High Temp. Range (f) | 200°F |
| Impact Resistance | Medium |
| Load Capacity | 2860 lbs. |
| Load Capacity @ 3 Mph | 2860 lbs. |
| Low Temp. Range (f) | -50°F |
| Moisture Resistance | Medium |
| Mounting Bolt | 1/2" |
| Mounting Plate | 5 1/4" x 7 1/4" |
| Mounting Plate Length | 7 1/4" |
| Mounting Plate Width | 5 1/4" |
| Relative Capacity | High |
| Relative Cost | High |
| Replacement Wheel | W-630-DB70-3/4 |
| Swivel Offset | 2 1/4" |
| Swivel Or Rigid Caster | Swivel |
| Wheel Color/finish | Black Poly On Gray Center |
| Wheel Core Material | Cast Iron |
| Wheel Dia. | 6" |
| Wheel Face | 3" |
| Wheel Material @ Tread | Polyurethane |
| Wheel Type | Duralast Xc |
Shipping Info:
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 15.24 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Bearing Type | Load Rating | Caster Brake Type | Mounting Height | Caster Sub-type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R-CH-13DB | - | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Precision Ball | 3000 lbs. | No Brake Included | 12 1/2" | Rigid | €373.41 | |
 |
R-CH-13FSB | 10" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Precision Ball | 4000 lbs. | No Brake Included | 12 1/2" | Rigid | €511.30 | |
 |
R-CH-13PH | - | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Roller | 2900 lbs. | No Brake Included | 12 1/2" | Rigid | €223.24 | |
 |
R-CH-63DB | - | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Precision Ball | 2200 lbs. | No Brake Included | 8" | Rigid | €244.19 | |
 |
R-CH-63FSB | - | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Precision Ball | 4000 lbs. | No Brake Included | 8" | Rigid | €358.82 | |
 |
R-CH-63PH | - | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | Roller | 2000 lbs. | No Brake | 8" | - | €172.62 | |
 |
R-CH-83DB | - | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | Precision Ball | 2500 lbs. | No Brake Included | 10 1/2" | Rigid | €307.70 |
