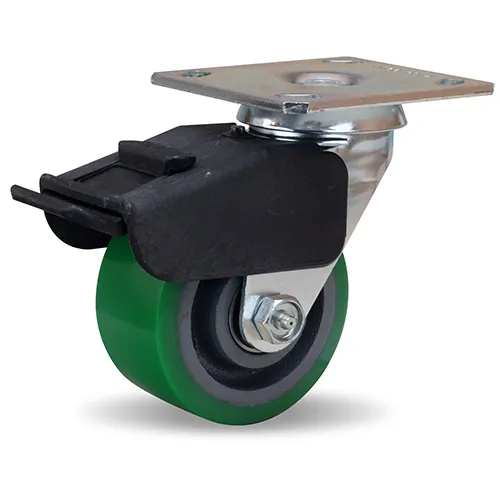

HAMILTON S-BC-4DB Combination Brake Swivel Caster, 4 X 2 Inch Size, 1/2 Inch Precision Ball Bearing
Get it by Tuesday, Aug 18
€126.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Abrasion Resistant | High |
| Bearing Type | Precision Sealed Ball |
| Bolt Hole 1 | 2 5/8" x 3 5/8" |
| Bolt Hole 2 | 3" x 3" |
| Caster Color/finish | Bright Zinc Plated |
| Caster Rig Type | Cold Forged/Stamped |
| Chemical Resistant | Medium |
| Cushioning (resilience) | Medium |
| High Temp. Range (f) | 200°F |
| Impact Resistance | Medium |
| Load Capacity | 750 lbs. |
| Load Capacity @ 3 Mph | 750 lbs. |
| Low Temp. Range (f) | -50°F |
| Moisture Resistance | Medium |
| Mounting Bolt | 3/8" |
| Mounting Plate | 4" x 4 1/2" |
| Mounting Plate Length | 4 5/8" |
| Mounting Plate Width | 4" |
| Overall Height | 5 5/8" |
| Relative Capacity | High |
| Relative Cost | Medium |
| Replacement Wheel | W-420-DB-1/2 |
| Swivel Offset | 2" |
| Swivel Or Rigid Caster | Swivel |
| Wheel Color/finish | Green Poly On Gray Center |
| Wheel Core Material | Cast Iron |
| Wheel Dia. | 4" |
| Wheel Face | 2" |
| Wheel Material @ Tread | Polyurethane |
| Wheel Type | Duralast |
Shipping Info:
| Ship weight (kg) | 4.05 |
| Ship height (cm) | 14.29 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 10.16 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Overall Height | Wheel Core Material | Replacement Wheel | Bearing Type | Wheel Type | High Temp. Range (f) | Relative Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-BC-5TE | 5" | 6 1/2" | Polyolefin | W-520-TE-3/4 | Straight Roller | Versa-Tech | 180°F | Low | €131.95 | |
 |
S-BC-4AZ | 4" | 5 5/8" | Polyolefin | W-420-AZ-3/4 | Delrin | Aqualite | 200°F | Low | €77.65 | |
 |
S-BC-4NF | 4" | 5 5/8" | Polyolefin | W-420-NF-3/4 | Straight Roller | Poly-Tech | 180°F | Medium | €79.69 | |
 |
S-BC-4TE | 4" | 5 5/8" | Polyolefin | W-420-TE-3/4 | Straight Roller | Versa-Tech | 180°F | Low | €80.13 | |
 |

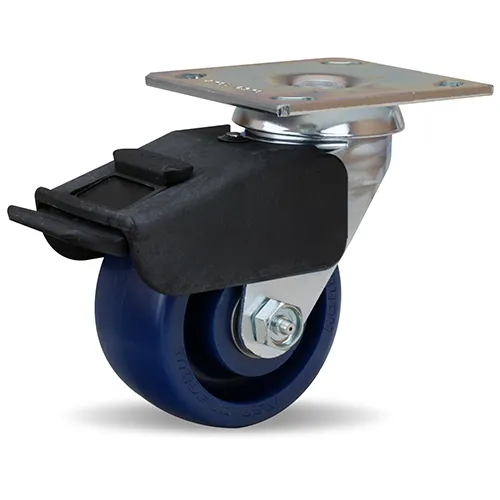

S-BC-4UYB | 4" | 5 5/8" | Polyurethane | W-420-UYB-1/2 | Precision Sealed Ball | Unilast | 180°F | Medium | €108.70 | |
 |

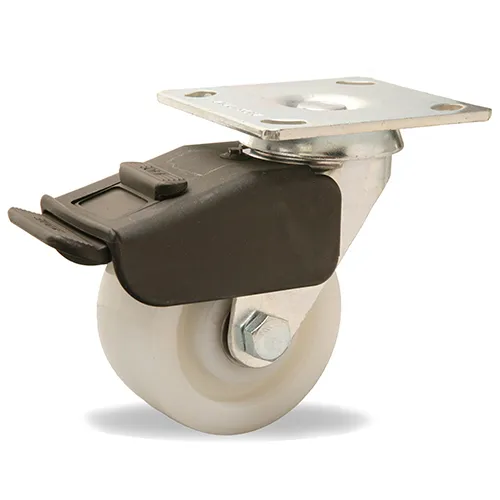

S-BC-4WNB | 4" | 5 5/8" | Nylon | W-420-WNB-1/2 | Precision Sealed Ball | White Nylon | 210°F | Medium | €95.72 | |
 |
S-BC-5AZ | 5" | 6 1/2" | Polyolefin | W-520-AZ-3/4 | Delrin | Aqualite | 200°F | Low | €85.92 |
