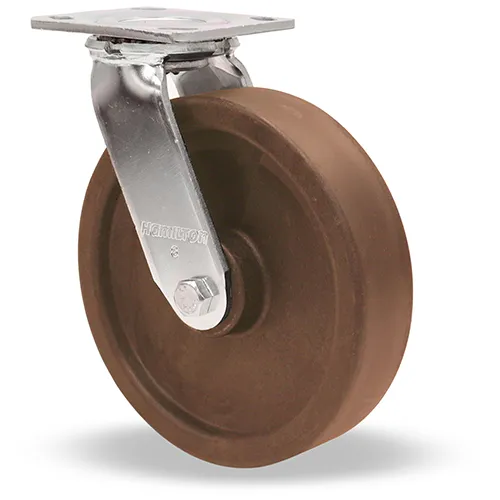

HAMILTON S-52HK-8HNY High Heat Standard Duty Kingpinless Swivel Caster, 8 X 2 Inch Size, Scorcher Wheel
Get it by Wednesday, Feb 25
€132.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Abrasion Resistance | Medium |
| Bearing Type | Straight Roller |
| Bolt Hole 1 | 2 5/8" x 3 5/8" |
| Bolt Hole 2 | 3" x 3" |
| Caster Color/finish | Bright Zinc Plated |
| Caster Rig Material | Steel |
| Caster Rig Type | Kingpinless |
| Chemical Resistant | High |
| Cushioning (resilience) | Low |
| High Temp. Range (f) | 475°F |
| Impact Resistance | High |
| Load Capacity | 960 lbs. |
| Load Capacity @ 3 Mph | 960 lbs. |
| Load Capacity @ 550°f | 960 lbs. |
| Low Temp. Range (f) | -70°F |
| Moisture Resistance | High |
| Mounting Bolt | 3/8" |
| Mounting Plate | 4" x 4 1/2" |
| Mounting Plate Length | 4 1/2" |
| Mounting Plate Width | 4" |
| Overall Height | 9 1/2" |
| Relative Capacity | Medium |
| Relative Cost | Low |
| Replacement Wheel | W-820-HNY-3/4 |
| Swivel Offset | 2" |
| Swivel Or Rigid Caster | Swivel |
| Wheel Color/finish | High Heat Brown |
| Wheel Core Material | Nylon |
| Wheel Dia. | 8" |
| Wheel Face | 2" |
| Wheel Material @ Tread | High Heat Non Metallic |
| Wheel Type | Scorcher |
Shipping Info:
| Ship weight (kg) | 4.5 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 20.32 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Caster Sub-type | Wheel Bearing Type | Load Rating | Mounting Plate Size | Wheel Type | Wheel Core Material | Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R-WHK-4HFSB | - | Rigid | Precision Ball | 560 lbs. | 4.5" x 4" | Flat Free | Forged Steel | - | €369.05 | |
 |
R-WHK-4HMB | - | Rigid | Precision Ball | 400 lbs. | 4.5" x 4" | Flat Free | Cast Iron | - | €270.38 | |
 |
R-WHK-4HNY | - | Rigid | Plain | 800 lbs. | 4.5" x 4" | Flat Free | Nylon | - | €146.58 | |
 |
S-WHK-4HMB | - | Swivel | Precision Ball | 400 lbs. | 4" x 5" | Inferno Metal | Cast Iron | 400 lbs. | €453.18 | |
 |
S-WHK-4HFSB | - | Swivel | Precision Ball | 560 lbs. | 4" x 5" | Inferno Forged Stl | Steel | 560 lbs. | €550.40 | |
 |
S-WHK-4HNY | - | Swivel | Plain | 800 lbs. | 4" x 5" | Scorcher | Nylon | 800 lbs. | €309.27 | |
 |
R-52K-4HFSB | - | - | - | - | - | - | - | - | €187.81 |
