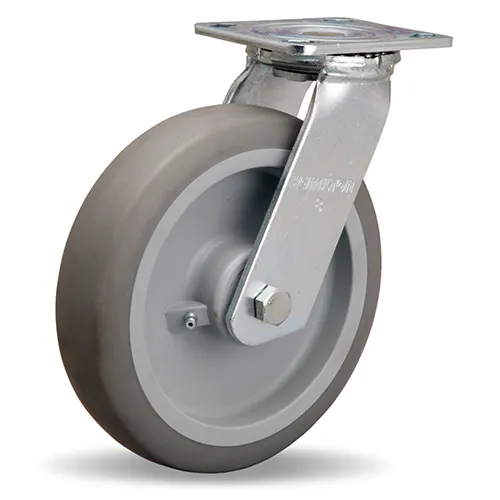

HAMILTON S-528-TE Swivel Caster, 8 X 2 Inch Size, Gray Rubber on Polyolefin Wheel
Get it by Monday, Aug 24
€71.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Abrasion Resistant | Low |
| Bearing Type | Straight Roller |
| Bolt Hole 1 | 2 5/8" x 3 5/8" |
| Bolt Hole 2 | 3" x 3" |
| Caster Color/finish | Bright Zinc Plated |
| Caster Rig Type | Cold Forged/Stamped |
| Chemical Resistant | Medium |
| Cushioning (resilience) | High |
| High Temp. Range (f) | 180°F |
| Impact Resistance | Medium |
| Load Capacity | 500 lbs. |
| Load Capacity @ 3 Mph | 500 lbs. |
| Low Temp. Range (f) | -40°F |
| Moisture Resistance | High |
| Mounting Bolt | 3/8" |
| Mounting Plate | 4" x 4 1/2" |
| Mounting Plate Length | 4 1/2" |
| Mounting Plate Width | 4" |
| Overall Height | 9 1/2" |
| Relative Capacity | Low |
| Relative Cost | Low |
| Replacement Wheel | W-820-TE-3/4 |
| Swivel Offset | 2.56" |
| Swivel Or Rigid Caster | Swivel |
| Wheel Color/finish | Light Gray Rubber On Gray Center |
| Wheel Core Material | Polyolefin |
| Wheel Dia. | 8" |
| Wheel Face | 2" |
| Wheel Material @ Tread | Rubber |
| Wheel Type | Versa-Tech |
Shipping Info:
| Ship weight (kg) | 3.6 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 20.32 |
| Country of Origin | CN |
Product Variants
| Product | Model | Wheel Dia. | Wheel Core Material | Overall Height | Bearing Type | Wheel Type | Load Capacity | Abrasion Resistant | Mounting Plate | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-523-D | 3 1/4" | Cast Iron | 5 1/4" | Straight Roller | Duralast | 575 lbs. | High | 4" x 4 1/2" | €84.07 | |
 |
S-523-P | 3 1/4" | Phenolic | 5 1/4" | Straight Roller | Plastex | 700 lbs. | Medium | 4" x 4 1/2" | €54.16 | |
 |
S-524-AZ | 4" | Polyolefin | 5 5/8" | Delrin | Aqualite | 550 lbs. | Medium | 4" x 4 1/2" | €49.71 | |
 |
S-524-DB | 4" | Cast Iron | 5 5/8" | Precision Sealed Ball | Duralast | 750 lbs. | High | 4" x 4 1/2" | €95.97 | |
 |
S-524-EMB | 4" | Aluminum | 5 5/8" | Precision Sealed Ball | Ergo-Tech | 450 lbs. | Medium | 4" x 4 1/2" | €77.01 | |
 |
S-524-MB | 4" | Cast Iron | 5 5/8" | Precision Sealed Ball | Metal | 1000 lbs. | High | 4" x 4 1/2" | €70.78 | |
 |
S-524-P | 4" | Phenolic | 5 5/8" | Straight Roller | Plastex | 800 lbs. | Medium | 4" x 4 1/2" | €54.09 |
