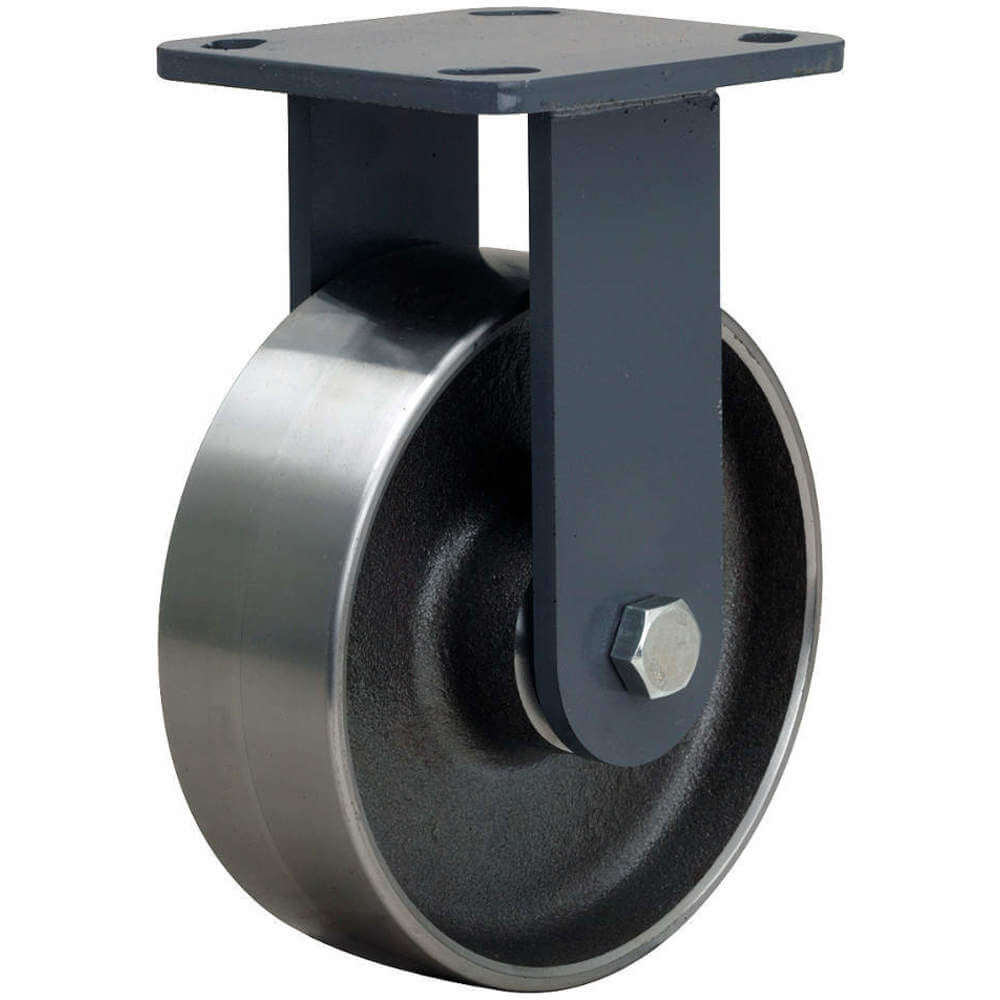

HAMILTON R-WH-6FSB Rigid Plate Caster 2000 Lb 6 Inch Diameter
Get it by Monday, Aug 31
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
€140.39 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rigid Plate Caster |
| Application | Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating | 1000 lbs. to 2999 lbs. |
| Caster Material | Forged Steel |
| Caster Product Group | Rigid Caster |
| Caster Sub-type | Rigid |
| Caster Temp. Range Available | Yes |
| Caster Type | Rigid |
| Caster Wheel Material | Forged Steel |
| Core Color | Silver |
| Core Material | Forged Steel |
| Extended Lead | No |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hole Pattern | B |
| Included | Spanner Bushing |
| Included Thread Guards | No |
| Inside Bolt Hole Spacing | 3" x 3" |
| Load Rating | 2000 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 7 1/2" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 4 1/2" ( B ) |
| No. Of Mounting Holes | 4 |
| No. Of Wheels | 1 |
| Non-marking | Yes |
| Number Of Wheels | 1 |
| Operating Temp. | -40°F to +200°F |
| Outside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Overall Height | 7 1/2" |
| Plate Size | 4" x 4 1/2" |
| Plate Thickness | 1/4" |
| Plate Type | B |
| Replacement Wheel | 4DU73 |
| Swivel Construction | Kingpinless |
| Swivel Lock Type | No Lock Included |
| Swivel Radius | 0.0" |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Precision Ball |
| Wheel Color | Clear |
| Wheel Core Material | Forged Steel |
| Wheel Dia. | 6" |
| Wheel Material | Forged Steel |
| Wheel Width | 2" |
| Wheel/tread Color | Silver |
| Wheel/tread Hardness | 90 Shore A , Firm |
| Wheel/tread Material | Steel |
Shipping Info:
| Ship weight (kg) | 4.66 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 19.05 |
| HS code | 8302200000 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Width | Wheel Dia. | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Load Rating | Mounting Height | Wheel Bearing Type | Caster Brake Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-WH-6SPB | 2" | 6" | 2 5/8" x 3 5/8" | 3" x 3" | 940 lbs. | 7 1/2" | Precision Ball | No Brake Included | €241.24 | |
 |
S-WH-8SPB | 2" | 8" | 2 5/8" x 3 5/8" | 3" x 3" | 1200 lbs. | 9 1/2" | Precision Ball | No Brake Included | €247.25 | |
 |
R-WH-6SPB | 2" | 6" | 2 5/8" x 3 5/8" | 3" x 3" | 960 lbs. | 7" | Precision Ball | No Brake Included | €171.51 | |
 |
R-WH-8SPB | 2" | 8" | 3" x 3" | 2 5/8" x 3 5/8" | 1200 lbs. | - | Precision Ball | - | €173.77 | |
 |
R-WH-4DB | 2" | 4" | 2 5/8" x 3 5/8" | 3" x 3" | 750 lbs. | 5 5/8" | Precision Ball | No Brake Included | €124.29 | |
 |
R-WH-4MB | 2" | 4" | 2 5/8" x 3 5/8" | 3" x 3" | 1000 lbs. | 5 5/8" | Precision Ball | No Brake Included | €98.99 | |
 |
R-WH-4P | 2" | 4" | 2 5/8" x 3 5/8" | 3" x 3" | 800 lbs. | 5 5/8" | Roller | No Brake Included | €73.91 |
