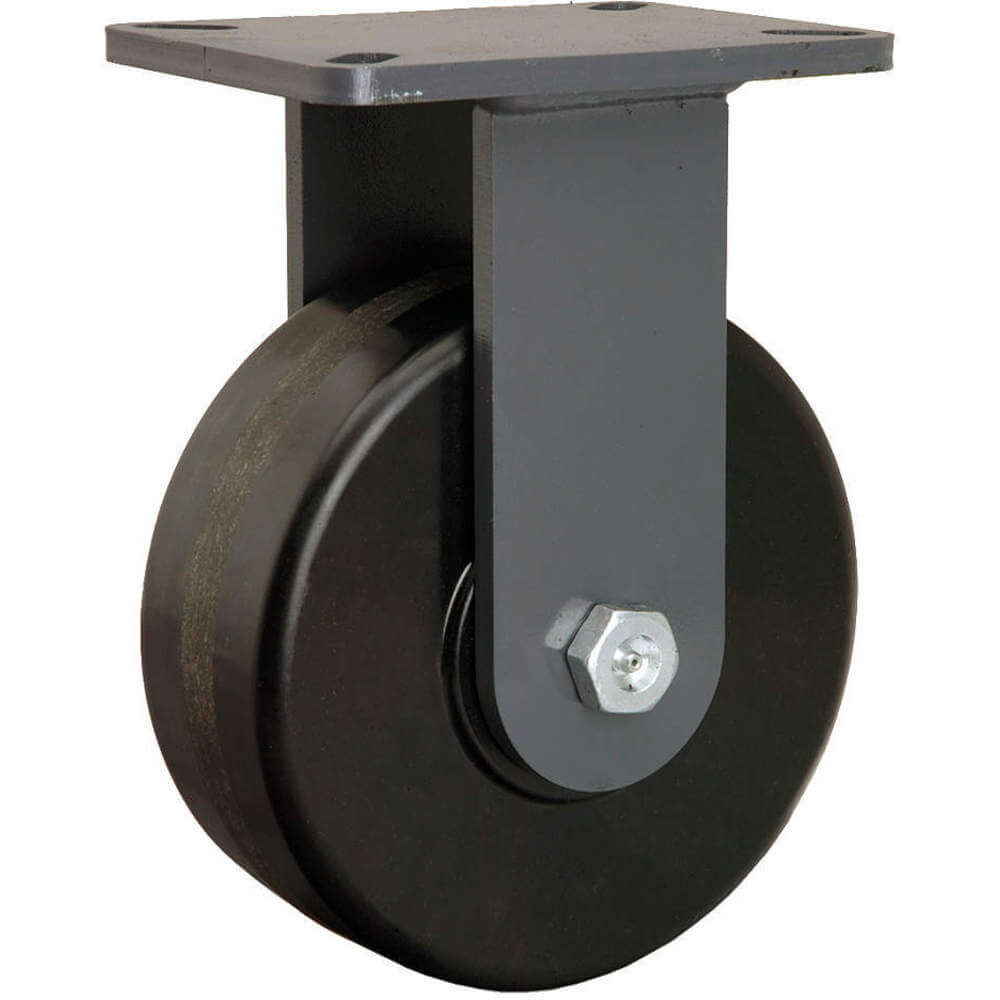

HAMILTON R-CH-83PH Rigid Plate Caster 3000 Lb 8 Inch Diameter
3000 lbs.
8"
3"
Rigid
Get it by Monday, Aug 24
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
€194.31 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rigid Plate Caster |
| Application | Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating | 3000 lbs. to 5999 lbs. |
| Caster Material | Phenolic |
| Caster Product Group | Rigid Caster |
| Caster Sub-type | Rigid |
| Caster Temp. Range Available | Yes |
| Caster Type | Rigid |
| Caster Wheel Material | Phenolic |
| Caster Wheel Shape | Standard |
| Core Color | Gray |
| Core Material | Phenolic |
| Durometer | 90 Shore D |
| Extended Lead | No |
| Frame Finish | Enamel |
| Frame Material | Steel |
| Hole Pattern | A |
| Included | Spanner Bushing |
| Included Thread Guards | No |
| Inside Bolt Hole Spacing | 4 1/8" x 6 1/8" |
| Load Rating | 3000 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 10 1/2" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 5 1/4" x 7 1/4" |
| Mounting Plate Size & Bolt Hole Pattern | 5 1/4" X 7 1/4" ( A ) |
| No. Of Mounting Holes | 4 |
| No. Of Wheels | 1 |
| Non-marking | Yes |
| Number Of Wheels | 1 |
| Operating Temp. | -40°F to +200°F |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Overall Height | 10 1/2" |
| Plate Size | 5 1/4" x 7 1/4" |
| Plate Thickness | 1/2" |
| Plate Type | A |
| Replacement Wheel | 5VJ94 |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Radius | 0.0" |
| Tread Shape | Standard |
| Wheel Bearing Type | Roller |
| Wheel Bearings | Roller |
| Wheel Color | Black |
| Wheel Core Material | Phenolic |
| Wheel Dia. | 8" |
| Wheel Material | Phenolic |
| Wheel/tread Color | Gray |
| Wheel/tread Hardness | 90 Shore D , Hard |
| Wheel/tread Material | Phenolic |
Shipping Info:
| Ship weight (kg) | 8.01 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 13.97 |
| HS code | 3926909980 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Load Rating | Wheel Width | Caster Brake Type | Wheel Bearing Type | Mounting Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R-CH-13DB | 10" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | 3000 lbs. | - | No Brake Included | Precision Ball | 12 1/2" | €337.61 | |
 |
R-CH-13FSB | 10" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | 4000 lbs. | - | No Brake Included | Precision Ball | 12 1/2" | €438.19 | |
 |
R-CH-13PH | 10" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | 2900 lbs. | - | No Brake Included | Roller | 12 1/2" | €212.03 | |
 |
R-CH-63DB | 6" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | 2200 lbs. | - | No Brake Included | Precision Ball | 8" | €278.72 | |
 |
R-CH-63FSB | 6" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | 4000 lbs. | - | No Brake Included | Precision Ball | 8" | €324.85 | |
 |
R-CH-63PH | 6" | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | 2000 lbs. | - | No Brake | Roller | 8" | €151.78 | |
 |
R-CH-83DB | 8" | 4 1/8" x 6 1/8" | 3 3/8" x 5 1/4" | 2500 lbs. | - | No Brake Included | Precision Ball | 10 1/2" | €311.13 |
