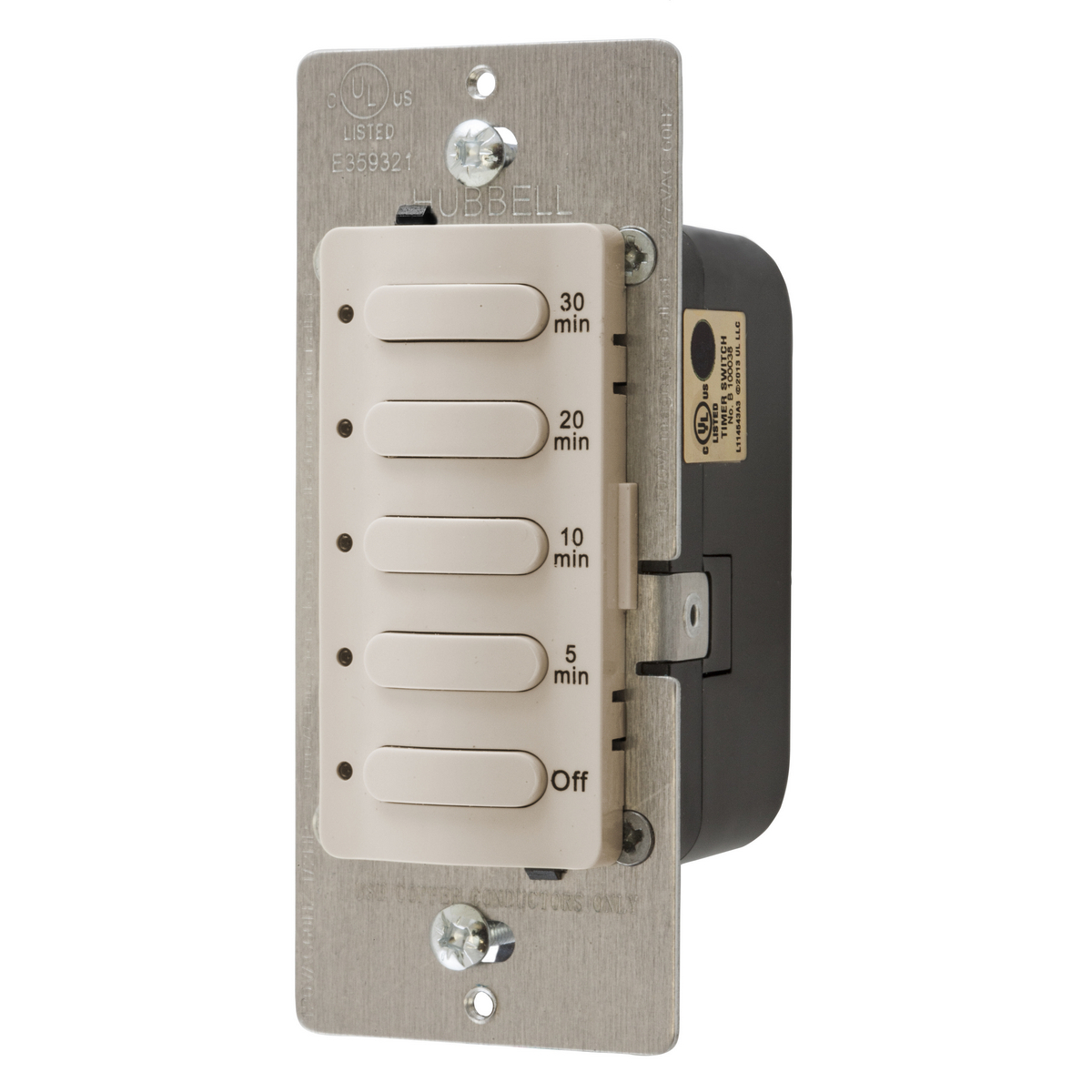

HUBBELL - BRYANT DT5030LA Timer Switch, Single Pole, 8.3A, 120/277VAC, 30 Minute Delay Time Out
Item: AF9ANFModel: DT5030LACross Ref: 29RW85
7 In Stock
Ships within 2 days via
13.00% off
€95.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Timer Switch |
| Amps | 8.3A |
| Applicable Ac Voltage Ranges | 120/277V AC |
| Application | Lighting |
| Body Color | Light Almond |
| Color | Almond |
| Compatible Lighting | Incandescent |
| Connectivity | Wire Leads |
| Contact Form | SPST |
| Depth | 3" |
| Display Qty | 1 |
| Features | Manual Override, Pre-Set 5 Button Selection With Permanent Time Markings |
| Height | 2.27" |
| Hp @ 120v | 167/1000 hp |
| Humidity Range | 20% to 90% |
| Included Hold | No Hold Included |
| Included Wall Plate | No Wall Plate Included |
| Indicator | Red LED |
| Indoor/outdoor | Indoor, Outdoor |
| Length | 3.81" |
| Material | Polycarbonate |
| Max. Hp @ 120v | 1/6 hp |
| Max. Time Setting | 30 min. |
| Max. Watts | 1400 W |
| Min. Time Setting | 5 min. |
| No. Of Gangs | 1 |
| Operating Temp. | +32°F to +122°F |
| Overall Depth | 2 1/4" |
| Overall Height | 3 13/16" |
| Overall Width | 1 3/4" |
| Product Datasheet | hubbell-bryant-dt5030la.pdf |
| Product Type | Countdown Timer |
| Series | FIXED COUNTDOWN Series |
| Storage Temp. Range | -40 Deg. F to 150 Deg. F |
| Style | Wall Switch |
| Switch Type | 1-Pole |
| Timer Switch Type | Digital |
| Timing Range | OFF, 5, 10,20, 30 minutes |
| Type Of Switch | Electronic |
| Voltage | 120/277V |
| Wattage | 1000/1400 W |
| Watts | 1000 @ 120V, 1400 @ 277V |
| Width | 1 3/4" |
| Wire Length | 6" |
| Wire Size | #14 AWG |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 5.56 |
| Ship length (cm) | 4.45 |
| Ship width (cm) | 0.64 |
| HS code | 9107008000 |
| Country of Origin | CN |
