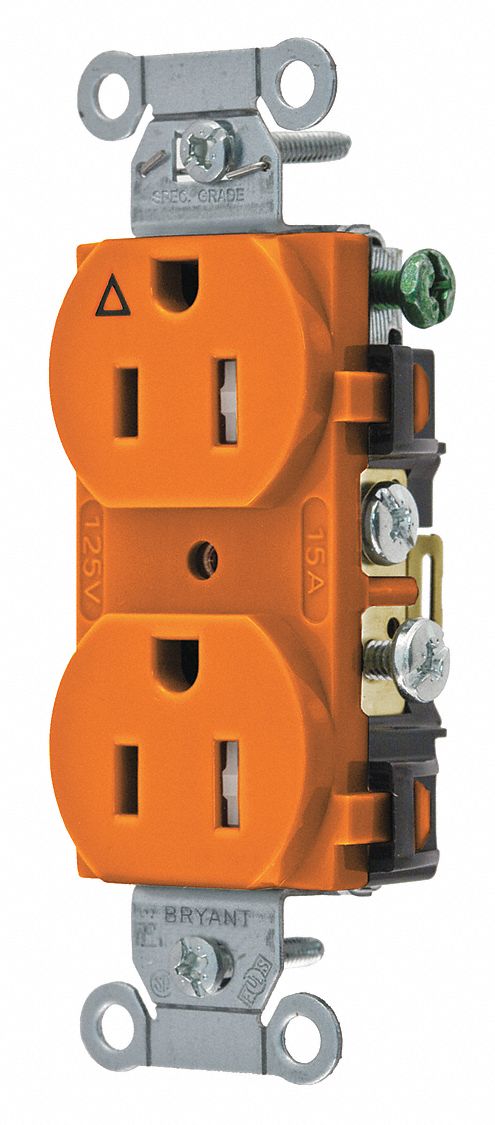

HUBBELL - BRYANT CR15IG Isolated Ground Receptacle, 15A, Commercial, Orange, No Tamper Resistant
Item: CH6NTGModel: CR15IGCross Ref: 49YZ19
7 In Stock
Ships within 2 days via
13.00% off
€8.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 15A |
| Application | Commercial Specification Grade |
| Application Environment | Commercial |
| Color | Orange |
| Connection Orientation | Straight |
| Connectivity | Back And Side Wired |
| Contact Material | Brass |
| Cover Type | No Cover |
| Dimensions | 3.28" x 1.38" x 0.92" |
| Display Size | Standard |
| Environmental Conditions | Dry Indoor |
| Face Plate Height | 2.7" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded, Isolated Ground |
| Height | 0.92" |
| Housing Color | Orange |
| Housing Material | Composite |
| Hp | 1/2 hp |
| Included | Mounting Hardware |
| Included Mounting Hardware | Yes |
| Length | 3.28" |
| Material | Composite |
| Max. Wire Size | 12 AWG |
| Min. Wire Size | 14 AWG |
| Mount Hole Center To Center Height | 4.1" |
| Mounting Type | Flush , Screw Mounted |
| Nema Rating | NEMA 5-15R |
| Nema Receptacle Configuration | 5-15R |
| No. Of Gangs | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Outlet Type | Standard Duplex |
| Overall Depth | 0.9" |
| Phase | 1 |
| Polarized | Yes |
| Power Indicator | No |
| Product Datasheet | hubbell-bryant-cr15ig.pdf |
| Receptacle Type | Duplex |
| Series | STRAIGHT BLADE Series |
| Special Resistance | Chemical Resistant, Heat Resistant, Impact Resistant |
| Style | Smooth Face |
| Surge Protection | No |
| Surge Suppression | No |
| Type | Duplex Receptacle |
| Voltage | 125V AC |
| Watts | 1875 W |
| Width | 1.38" |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminal |
| Wire Size | #14 AWG to #12 AWG |
| Wiring Method | Side |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.34 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 3.51 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Amps | Mounting Type | Nema Rating | Nema Receptacle Configuration | Color | Voltage | No. Of Poles | Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

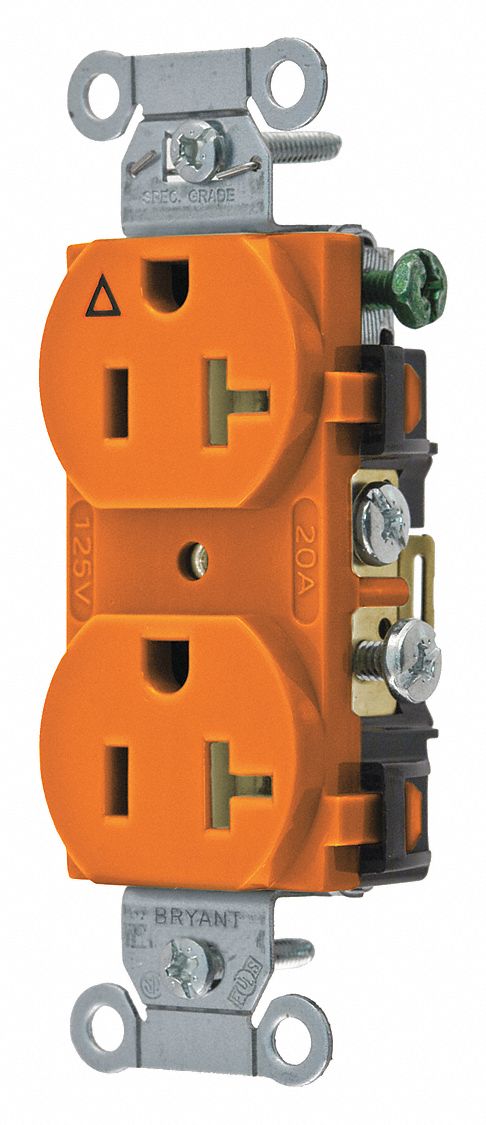

CR20IG | 15A | Flush | NEMA 5-20R | 5-20R | Orange | 125V AC | 2 | #14 AWG to #12 AWG | €12.36 |
