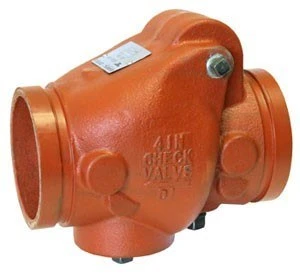

GRUVLOK 2200750103 7811 Series Check Valve, EPDM, 4 Inch Valve Size
Get it by Friday, Dec 26
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€945.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Check Valve |
| 3-a Compliance | Not Rated |
| Application - Valves | General Purpose |
| Body Material | Ductile Iron |
| Check Mechanism | Swing |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 4 1/2" |
| Connection Size - Side 2 | 4 1/2" |
| Connection Type | Grooved End x Grooved End |
| Connection Type - Side 1 | Grooved |
| Connection Type - Side 2 | Grooved |
| Disc Material | Stainless Steel |
| Flow Design | Single |
| Flow Rate | 700 GPM |
| For Media | Alkaline, Chemicals, Dilute Acids, Oil-Free Air, Water |
| Full Flow - Valves | Yes |
| Grade | Grade 304 |
| Includes Counterweight | No Counterweight |
| Max. Pressure (cwp) | 300 psi |
| Media Temp. Range | -40°F to +230°F |
| Mounting Orientation | Horizontal |
| Operating Temperature - Maximum | 230°F |
| Operating Temperature - Minimum | -40°F |
| Overall Length | 8.13" |
| Pipe Size | 4 1/2" |
| Product Datasheet | gruvlok-2200750038.pdf |
| Seal Material | EPDM |
| Seat Material | Stainless Steel |
| Seat Material Grade | Grade 304 |
| Silent Check | Standard |
| Spring Material | Grade 302 , Stainless Steel |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | 7800 |
| Valve Size | 4" |
Shipping Info:
| Ship weight (kg) | 6.08 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Details:
- 7811 Series
Documentation:
Product Variants
| Model | Pipe Size | Spring Material | Body Material | Connection Type | Seat Material | Seal Material | Flow Rate | Flow Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2200750111 | 6 5/8" | Stainless Steel | Ductile Iron | Grooved End x Grooved End | Stainless Steel | EPDM | 700 GPM | Single | €2,047.24 | |
| 2200750061 | 3" | Stainless Steel | Ductile Iron | Grooved End x Grooved End | Stainless Steel | EPDM | 700 GPM | Single | €1,014.80 | |
| 2200750046 | 2 1/2" | Stainless Steel | Ductile Iron | Grooved End x Grooved End | Stainless Steel | EPDM | 700 GPM | Single | €902.93 | |
| 2200750087 | - | - | - | - | - | - | - | - | €3,441.53 | |
| 2200750038 | - | - | - | - | - | - | - | - | €1,594.28 | |
| 2200750129 | - | - | - | - | - | - | - | - | €5,574.20 | |
| 2200750152 | - | - | - | - | - | - | - | - | €17,672.91 |
