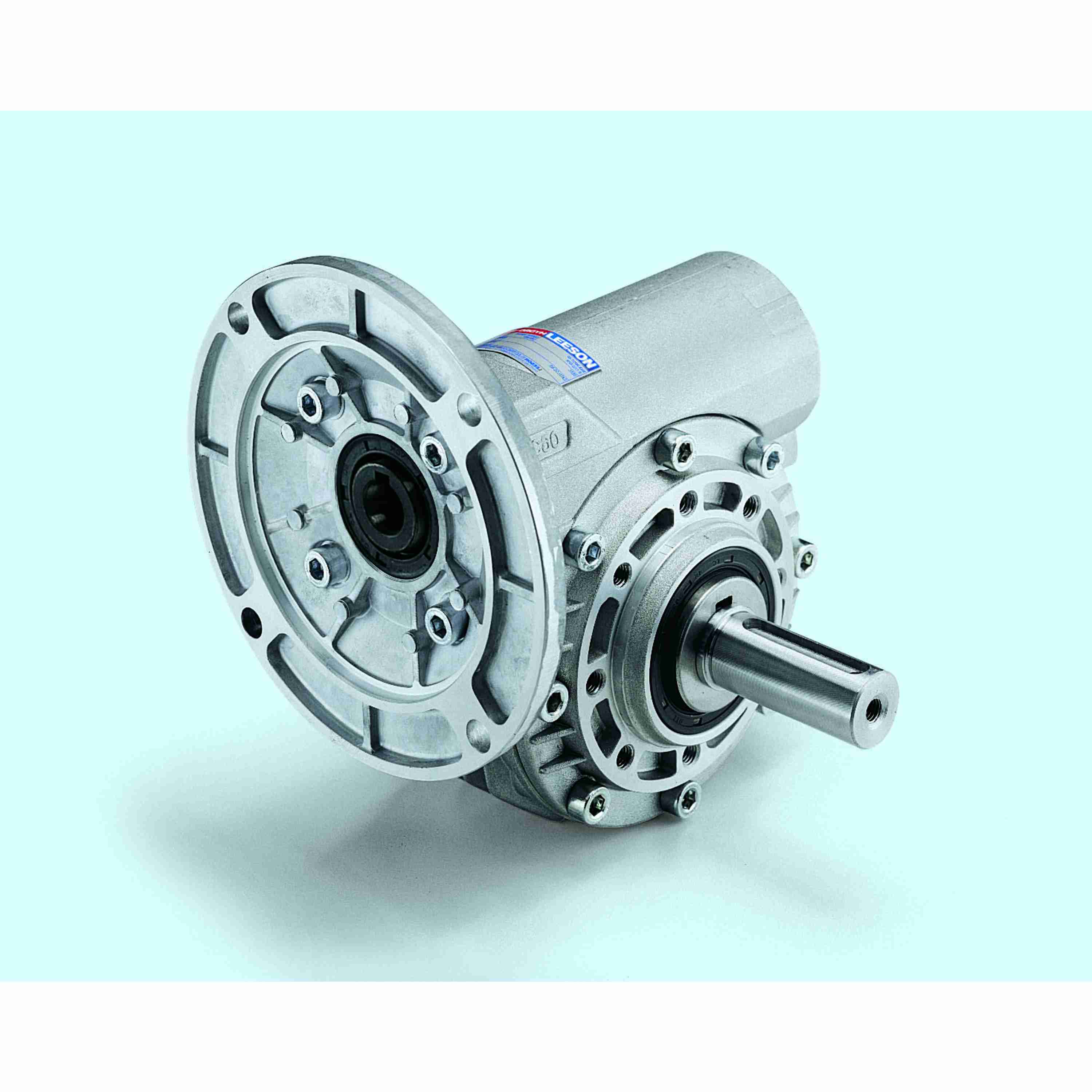

GROVE GEAR W5200050.00 BMQ520-36-R-56 Worm Reducer, 36:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Aluminum
Get it by Friday, Aug 28
€577.84 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Aj | 5.88 |
| Assembly | BMQ-R |
| Be | 0.38" |
| C | 5.33" |
| Center Distance | 1.97" |
| D | 2.15 |
| F | 1.5 |
| Frame | 56C |
| Frame Size | 56C |
| G | 0.12 |
| Gear Type | Worm |
| Housing Material | Aluminum |
| I | 2 14/25" |
| Input Bore (c Face) | 5/8" |
| Input Dia. | 5/8" |
| Input Hp | 0.684 hp |
| Input Keyway Size | 1/4" x 1.62" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Material | Aluminum |
| Max. Input Hp | 0.684 hp |
| Mounting Type | Base |
| N | 3.94 |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1" |
| Output Hp | 59/125 hp |
| Output Key Size | 1/4" x 1.62" |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Orientation | R |
| Output Speed | 49 RPM |
| Output Style | R |
| Output Torque | 607 lbs.-in. |
| Overhung Load | 562 lbs. |
| Product Line | Bravo Series - Compact Aluminum Worm Speed Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reduction | Single |
| Reduction Type | Single |
| Rq | 2.83" |
| Series | Bravo Series |
| Series Style | BMQ-R |
| Series Type | Bravo 500 Worm Gear Reducers |
| Service Factor | 1 |
| Shaft Seal Material | Nitrile |
Shipping Info:
| Ship weight (kg) | 4.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Output Dia. | Output Hp | Output Speed | Output Torque | Max. Input Hp | Output Key Size | Input Keyway Size | Output Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
W5180051.00 | 3/4" | 1.103 hp | 250 RPM | 278 lbs.-in. | 1.378 hp | 3/16" x 1" | 3/16" x 1" | D | €424.41 |
