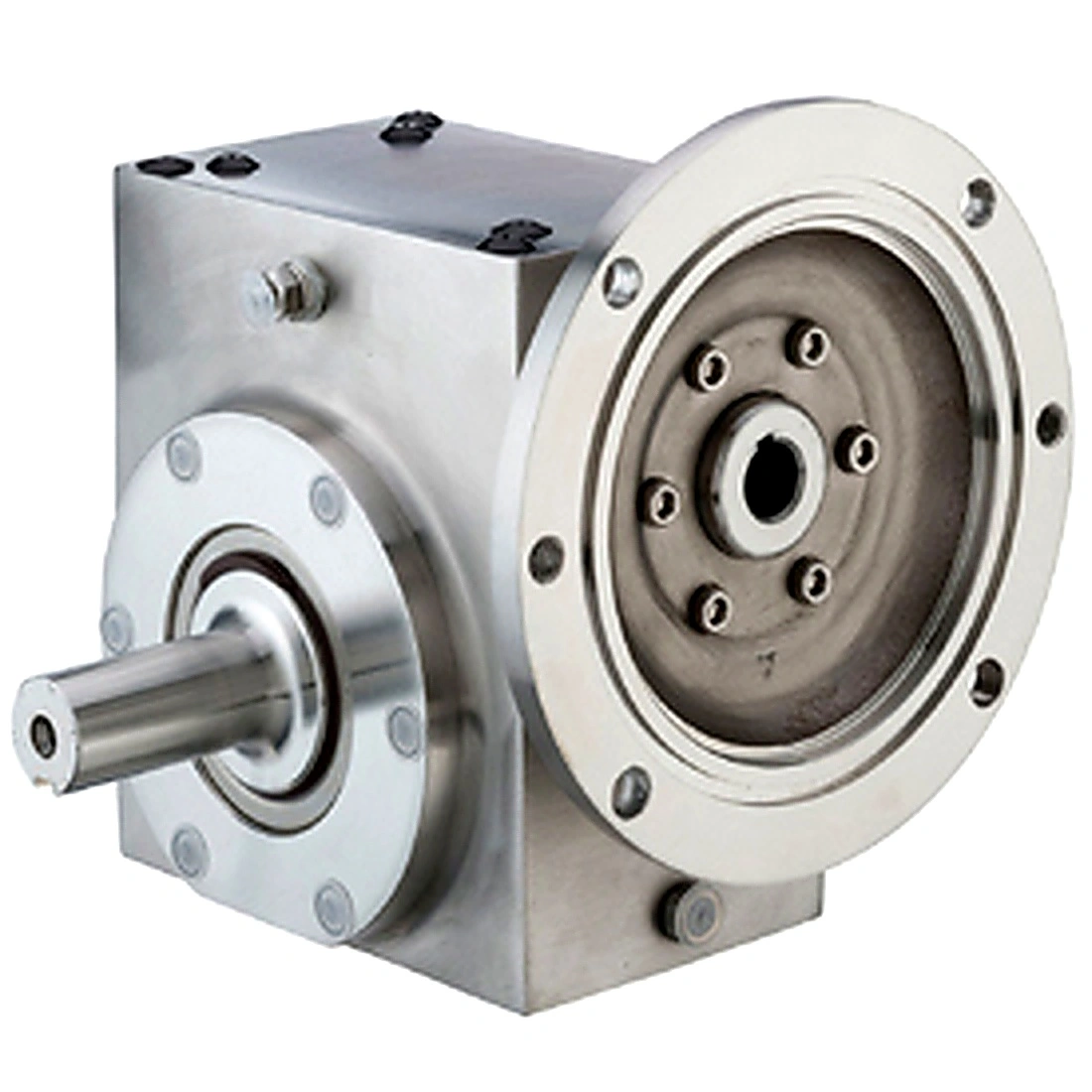

GROVE GEAR S263004400 SS-BMQ826-40-L-140 Right Angle Gear Reducer, 40 to 1 Reduction Ratio, 43 RPM Output, 1854 lb-in Torque, Stainless Steel
Get it by Wednesday, Sep 2
€3,954.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 4.54 |
| Application | Stainless Washdown |
| Assembly | SS-BMQ-L |
| B | 7.25 |
| C | 8" |
| Center Distance | 2.62" |
| D | 2.94 |
| E | 2.625 |
| Frame | 140TC |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Stainless Steel |
| I | 4 1/4" |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Hp | 1.695 hp |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Input Type | C-Face Quilled |
| Material | Stainless Steel |
| Mounting Type | Base |
| N | 5.63 |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/4" |
| Output Hollow Shaft Dia. | 7/8" |
| Output Hp | 1.287 hp |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Shaft Type | Left Handed Shaft |
| Output Speed | 43.8 RPM |
| Output Style | L |
| Output Torque | 1854 lbs.-in. |
| Output Type | Shaft |
| Overhung Load | 1625 lbs. |
| Product Datasheet | grove-gear-s263004400.pdf |
| Product Line | Stainless Steel Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | SS-BMQ |
| Reducer Type | Single |
| Reduction | Single |
| Reduction Type | Single |
| Series Code | SS |
| Service Factor | 1 |
| Speed | 43.8 RPM |
| Torque (lb-in)@1750rpm | 1854 |
Shipping Info:
| Ship weight (kg) | 25.2 |
| Ship height (cm) | 33.02 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 33.02 |
Documentation:
Product Variants
| Model | Housing Material | Output Dia. | Input Dia. | Output Hp | Output Speed | Output Torque | Max. Input Hp | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| S213004600 | Stainless Steel | 1" | 5/8" | 87/200 hp | 29.2 RPM | 940 lbs.-in. | 0.674 hp | Base | €2,673.24 | |
| S8772071.FL | - | - | - | - | - | - | - | - | €2,828.63 | RFQ
|
| K8873082.00 | - | - | - | - | - | - | - | - | €3,991.54 | RFQ
|
| K8775007.00 | - | - | - | - | - | - | - | - | €6,382.54 | RFQ
|
| K8673050.00 | - | - | - | - | - | - | - | - | €2,235.75 | RFQ
|
| S8473006.FL | - | - | - | - | - | - | - | - | €1,443.22 | RFQ
|
| WF6380132.00 | - | - | - | - | - | - | - | - | €863.38 | RFQ
|
