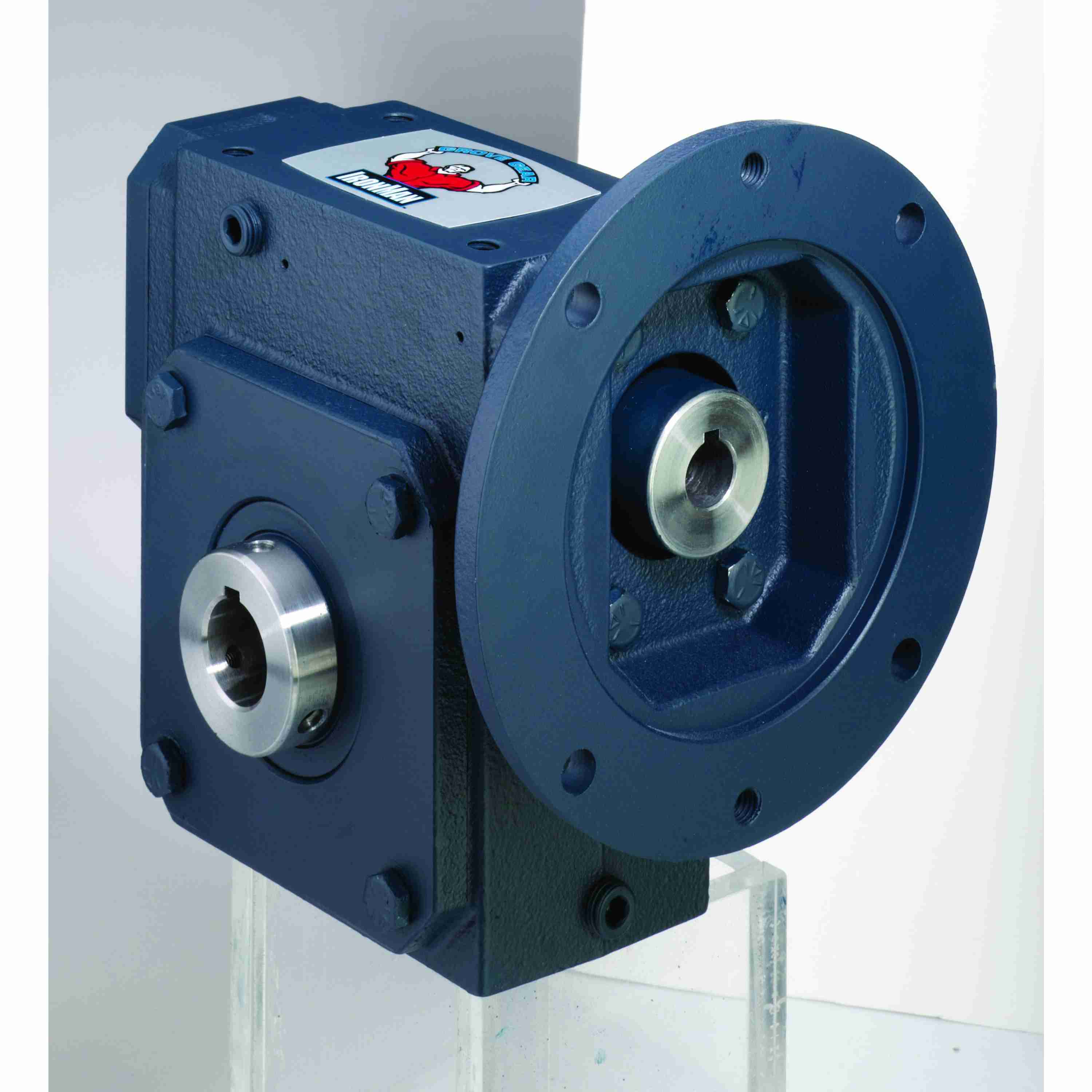

GROVE GEAR NH8520604.40 Worm Reducer, 40:1 Ratio, 1.125 Inch I.D, 2.5 Inch O.D, Cast Iron | AY6XRD

GROVE GEAR NH8520604.40 NH-HMQ852-40-H1-180-40 Worm Reducer, 40:1 Ratio, 1.125 Inch I.D, 2.5 Inch O.D, Cast Iron

Item: AY6XRDModel: NH8520604.40Cross Ref: NH-HMQ852-40-H1-180-40
Check Availability
In Stock
Ratio

Get it by Tuesday, Sep 1

€8,229.78 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
Aa 15.19
Ab 6.76
Ae2 0.97
Af 0.38
Ag 10.5
Aj 7.25
Ak 8.5
Assembly HMQ-H1
Be1 1/2"
Bf 0.53
Bore Code 40
Center Distance 5 1/4"
D 4.88
Frame 180TC
G 3.63
Gear Drive Reductions Single
Gear Type Worm
Gearbox Type Worm
Gross Weight 0 lbs.
H 0.53"
Housing Material Cast Iron
I 7 1/2"
Input Bore (c Face) 1 1/8"
Input Bore Size 1 1/8"
Input Dia. 1 1/8"
Input Hp @ 1750 Rpm 8 21/200 hp
Input Keyway Size (c Face) 1/4" x 1/8"
Input Speed 1750 RPM
Input Style C Face Quill
Input Type C-Face Quilled
Ll 5 1/4"
Lq1 8.61"
Material Cast Iron
Max. Ohl (output Shaft) 3560
Max. Thrust Load (output Shaft) 3412
Mounting Type Shaft Mount
No. Of Gear Reductions 1
Output Hollow
Output Dia. 2 1/2"
Output Hollow Shaft Dia. 2 1/2"
Output Hp 6.538 hp
Output Key Size 5/8" x 4"
Output Shaft Hollow Bore
Output Shaft Assembly Code H1
Output Shaft Direction H1
Output Shaft Orientation H1
Output Shaft Thrust Rating 3412
Output Shaft Type Hollow Shaft
Output Speed 43 RPM
Output Style H1
Output Torque 9419 lbs.-in.
Output Type Hollow Bore
Overhung Load Rating 3560 lbs.
P 4.62"
Paint/coating Blue
Product Line NH Series - Ironman Narrow Housing Worm Gear Reducers
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reducer Type Single
Reduction Single
Reduction Type Single
Rq 7.98"
Series NH Series
Series Style NH-HMQ-H1
Service Factor 1
Shaft Seal Material Viton
Speed 43 RPM
V 4.26"

Shipping Info:

Ship weight (kg) 94.5
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelOutput HpOutput SpeedOutput TorqueOutput Dia.Input Dia.Max. Input HpInput StyleReducer TypePrice
GROVE GEAR NH8520272.00 Worm Reducer, 40:1 Ratio, 0.875 Inch I.D, 2 Inch O.D, Cast Iron | AX4TPM NH8520272.006.538 hp43 RPM9419 lbs.-in.2"7/8"8 21/200 hpC Face QuillSingle€6,410.87
GROVE GEAR NH8520273.00 Worm Reducer, 50:1 Ratio, 0.875 Inch I.D, 2 Inch O.D, Cast Iron | AX6XMC NH8520273.005.199 hp35 RPM9362 lbs.-in.2"7/8"6.777 hpC Face QuillSingle€6,410.87
GROVE GEAR NH8524146.00 Quill Input Worm Gear Reducer | AX8GCD NH8524146.00------Quill-€5,576.26
RFQ
GROVE GEAR NH8520147.00 Worm Reducer, 100:1 Ratio, 1.25 Inch I.D, 2 Inch O.D, Cast Iron | AX8PWF NH8520147.001.291 hp17 RPM4646 lbs.-in.2"1 1/4"2 9/125 hpFlexible Coupling InputSingle€6,410.87
GROVE GEAR NH8520330.00 Worm Reducer, 25:1 Ratio, 1.375 Inch I.D, 2 Inch O.D, Cast Iron | AX8QVZ NH8520330.0010 57/100 hp70 RPM9517 lbs.-in.2"1 3/8"12 19/100 hpC Face QuillSingle€6,410.87
GROVE GEAR NH8520028.00 Worm Reducer, 60:1 Ratio, 1.25 Inch I.D, 2 Inch O.D, Cast Iron | AX8YKT NH8520028.004.263 hp29 RPM9212 lbs.-in.2"1 1/4"5.816 hpFlexible Coupling InputSingle€6,410.87
GROVE GEAR NH8520355.00 Worm Reducer, 30:1 Ratio, 1.375 Inch I.D, 2 Inch O.D, Cast Iron | AX8YKV NH8520355.008 91/100 hp58 RPM9627 lbs.-in.2"1 3/8"10.538 hpC Face QuillSingle€6,765.90
