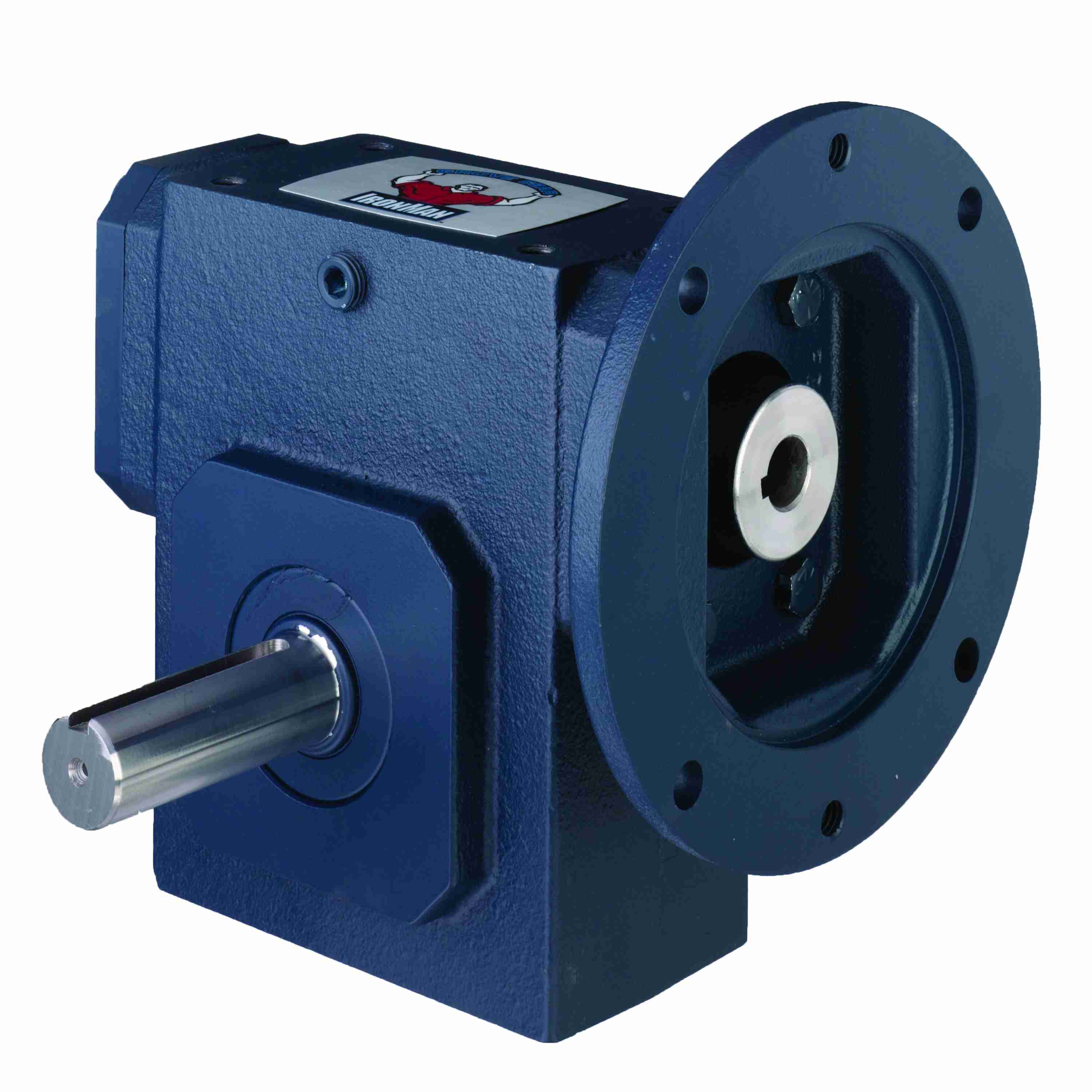

GROVE GEAR NH8520286.00 NH-BMQ852-60-D-140 Worm Reducer, 60:1 Ratio, 0.875 Inch I.D, 2 Inch O.D, Cast Iron
Get it by Friday, Dec 19
€6,765.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Assembly | BMQ-D |
| Center Distance | 5 1/4" |
| Frame | 140TC |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 7/8" |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Hp @ 1750 Rpm | 5.816 hp |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Quill |
| Material | Cast Iron |
| Max Input Hp | 5 102/125 hp |
| Max. Input Hp | 5.816 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output Diameter | 2" |
| Output Hp | 4.263 hp |
| Output Key Size | 1/2" x 2.5" |
| Output Rpm | 29 RPM |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | D |
| Output Shaft Dia. | 2" |
| Output Shaft Direction | Double |
| Output Shaft Orientation | LR |
| Output Shaft Thrust Rating | 3412 |
| Output Shaft Type | Double Shaft |
| Output Style | D |
| Output Torque | 9212 lbs.-in. |
| Overhung Load | 3570 lbs. |
| Product Line | NH Series - Ironman Narrow Housing Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | NH Series |
| Series Style | NH-BMQ-D |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Ships Factory Direct | Yes |
| Tap Depth | 1 1/4" |
| Tap Size | 5/8"-11 |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 97.2 |
| Ship height (cm) | 47.63 |
| Ship length (cm) | 101.6 |
| Ship width (cm) | 93.98 |
Product Variants
| Model | Max. Input Hp | Overhung Load | Frame | Output Torque | Output Shaft Type | Gear Type | Input Rpm | Output Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| NH8520353.00 | 15 14/25 hp | 3560 lbs. | 210TC | 9351 lbs.-in. | Double Shaft | Worm | 1750 RPM | 2" | €6,765.90 | |
| NH8520315.00 | 23 3/20 hp | 3370 lbs. | 180TC | 7827 lbs.-in. | Double Shaft | Worm | 1750 RPM | 2" | €6,765.90 | |
| NH8520252.00 | 2 9/125 hp | - | 56C | 4646 lbs.-in. | Double Shaft | Worm | 1750 RPM | 2" | €6,765.90 | |
| NH8520358.00 | 5.816 hp | 3570 lbs. | 210TC | 9212 lbs.-in. | Double Shaft | Worm | 1750 RPM | 2" | €6,765.90 | |
| NH8520288.00 | 2 9/125 hp | 3600 lbs. | 140TC | 4646 lbs.-in. | Double Shaft | Worm | 1750 RPM | 2" | €6,765.90 | |
| NH8520284.00 | 8 21/200 hp | 3560 lbs. | 140TC | 9419 lbs.-in. | Double Shaft | Worm | 1750 RPM | 2" | €6,765.90 | |
| NH8520321.00 | 6.777 hp | 3560 lbs. | 180TC | 9362 lbs.-in. | Double Shaft | Worm | 1750 RPM | 2" | €6,765.90 |
