GROVE GEAR NH8420249.00 Worm Reducer, 50:1 Ratio, 0.625 Inch I.D, 1.75 Inch O.D, Cast Iron | AY2QNH

GROVE GEAR NH8420249.00 NH-BMQ842-50-D-56 Worm Reducer, 50:1 Ratio, 0.625 Inch I.D, 1.75 Inch O.D, Cast Iron

Item: AY2QNHModel: NH8420249.00Cross Ref: NH-BMQ842-50-D-56
Check Availability
In Stock
Ratio

Get it by Tuesday, Aug 18

€4,390.18 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
A 4.75
Aj 5.88
Assembly BMQ-D
B 9.75
Be 0.38"
Bf 0.41
C 11 1/2"
Center Distance 4 1/4"
F 3.75
Frame 56C
Frame Size 56C
G 1.88
Gear Drive Reductions Single
Gear Type Worm
Gearbox Type Worm
Gross Weight 0 lbs.
Housing Material Cast Iron
I 6.1"
Input Bore (c Face) 5/8"
Input Bore Size 5/8"
Input Dia. 5/8"
Input Flange 56C
Input Hp 4.389 hp
Input Hp @ 1750 Rpm 4.389 hp
Input Keyway Size (c Face) 3/16" x 3/32"
Input Speed 1750 RPM
Input Style C Face Quill
Input Type C-Face Quilled
J 7 1/2"
K 3 3/4"
Lq 6.77"
Material Cast Iron
Max. Input Hp 4 389/1000 hp , 4.389 hp
Max. Ohl (output Shaft) 3730
Max. Thrust Load (output Shaft) 2533
Mounting Type Base
N 7.5
No. Of Gear Reductions 1
O 3 22/25"
Output Dia. 1 3/4"
Output Hp 3.426 hp
Output Key Size 3/8" x 2 1/4"
Output Shaft Solid Shaft
Output Shaft Assembly Code D
Output Shaft Dia. 1 3/4"
Output Shaft Direction Double
Output Shaft Orientation LR
Output Shaft Thrust Rating 2533
Output Shaft Type Double Shaft
Output Speed 35 RPM
Output Style D
Output Torque 6170 lbs.-in.
Output Type Solid Shaft
Overhung Load 3730 lbs.
Overhung Load Rating 3730 lbs.
Paint/coating Blue
Product Line NH Series - Ironman Narrow Housing Worm Gear Reducers
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reducer Type Single
Reduction Single
Reduction Type Single
Rq 6 1/25"
Series NH Series
Series Style NH-BMQ-D
Service Factor 1
Shaft Seal Material Viton
Speed 35 RPM
T 1.75
Tap Depth 1"
Tap Size 1/2"-13
Thread Type Coarse

Shipping Info:

Ship weight (kg) 55.8
Ship height (cm)44.45
Ship length (cm)101.6
Ship width (cm)93.98

Product Variants

ProductModelInput Dia.Output HpMax. Input HpOutput Dia.Output SpeedOutput TorqueInput StylePaint/coatingPrice
GROVE GEAR NH8420325.00 Worm Reducer, 5:1 Ratio, 1.375 Inch I.D, 1.75 Inch O.D, Cast Iron | AX6ZWA NH8420325.001 3/8"17 1/4 hp18 2/25 hp1 3/4"350 RPM3209 lbs.-in.C Face QuillBlue€4,222.82
GROVE GEAR NH8420543.24 Hollow Bore Output Worm Gear Reducer | AX8AQJ NH8420543.24------3-Piece CoupledBlue€2,275.09
RFQ
GROVE GEAR NH8420543.35 Hollow Bore Output Worm Gear Reducer | AX8CFZ NH8420543.35------3-Piece CoupledBlue€2,275.09
RFQ

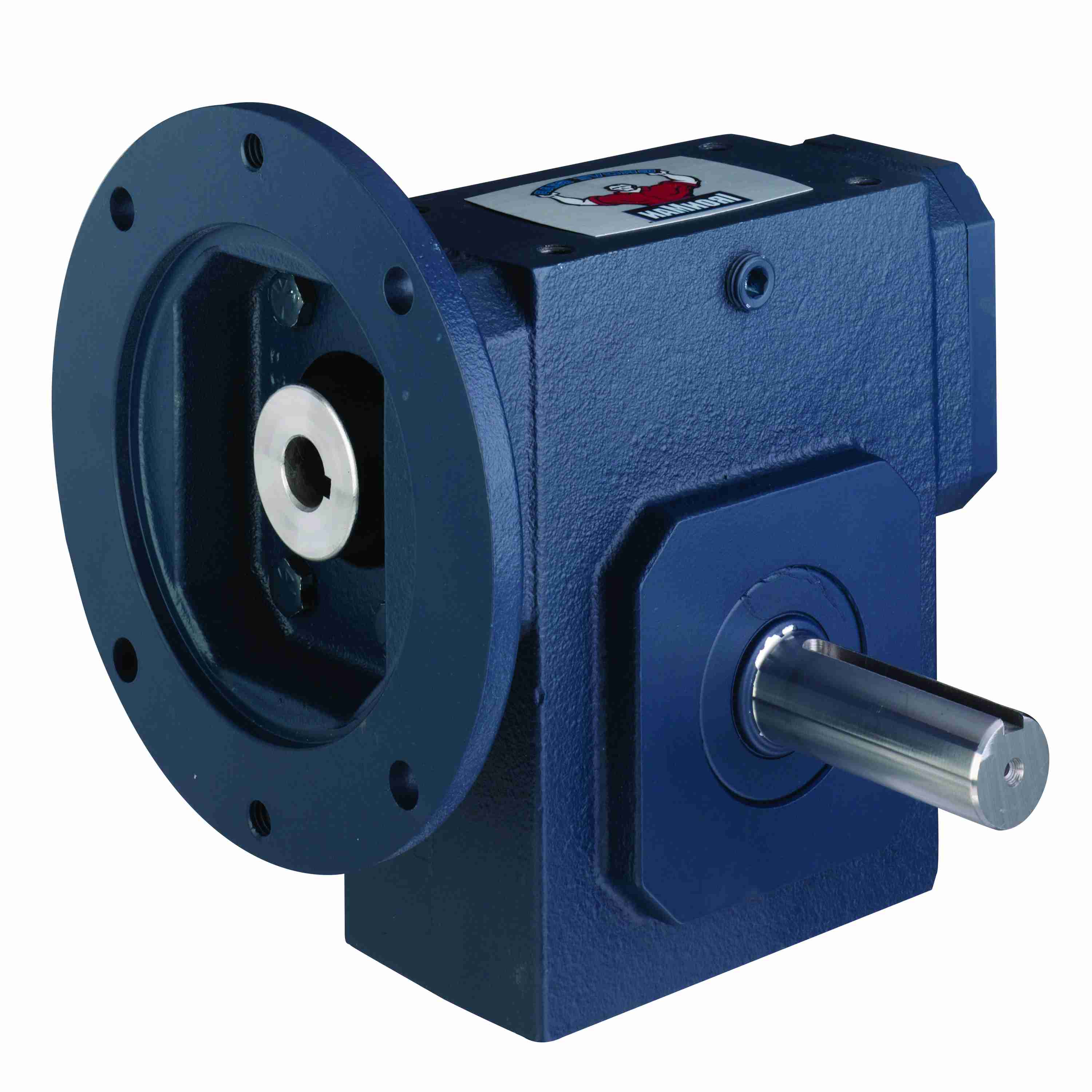

GROVE GEAR NH8420338.00 Worm Reducer, 7.5:1 Ratio, 1.375 Inch I.D, 1.75 Inch O.D, Cast Iron | AX8DUF NH-BMQ842-7.5-R-210 NH8420338.001 3/8"15 9/25 hp16 27/100 hp1 3/4"233 RPM4148 lbs.-in.C Face QuillBlue€4,222.82
GROVE GEAR NH8420542.27 Hollow Bore Output Worm Gear Reducer | AX8EJY NH8420542.27------3-Piece CoupledBlue€2,275.09
RFQ
GROVE GEAR NH8420317.00 Worm Reducer, 20:1 Ratio, 1.125 Inch I.D, 1.75 Inch O.D, Cast Iron | AX8NXK NH8420317.001 1/8"8.458 hp9.462 hp1 3/4"87 RPM6092 lbs.-in.C Face QuillBlue€4,390.18
GROVE GEAR NH8420252.00 Worm Reducer, 100:1 Ratio, 0.625 Inch I.D, 1.75 Inch O.D, Cast Iron | AX8PWE NH8420252.005/8"99/125 hp1.201 hp1 3/4"17 RPM2852 lbs.-in.C Face QuillBlue€4,390.18
