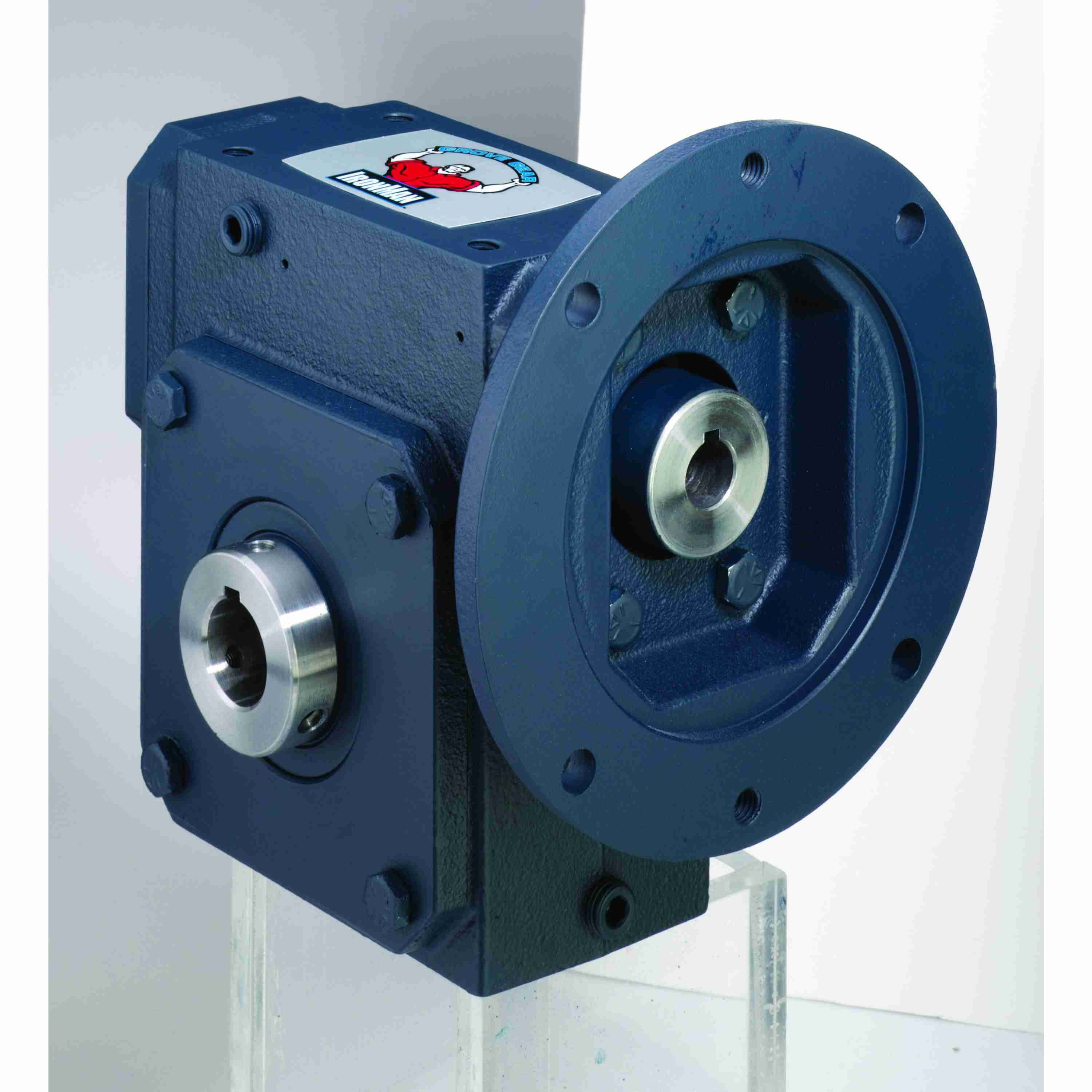

GROVE GEAR NH8260553.23 NH-HMQ826-20-H1-56-23 Worm Reducer, 20:1 Ratio, 0.625 Inch I.D, 1.438 Inch O.D, Cast Iron
Get it by Tuesday, Jul 14
€2,430.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Aa | 9.38 |
| Ab | 4.32 |
| Ae2 | 0.56 |
| Af | 0.19 |
| Ag | 4.65 |
| Aj | 5.88 |
| Assembly | HMQ-H1 |
| B | 5.75 |
| Be | 0.38" |
| Bf | 0.41 |
| Bore Code | 23 |
| Center Distance | 2.63" |
| D | 2.94 |
| Family Name | Cast Iron Housing Material Worm Gear Reducers |
| Frame | 56C |
| Frame Size | 56C |
| G | 1.94 |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| H | 0.53" |
| Housing Material | Cast Iron |
| I | 4.34" |
| Input Bore (c Face) | 5/8" |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Flange | 56C |
| Input Hp | 2.965 hp |
| Input Hp @ 1750 Rpm | 2.965 hp |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Input Type | C-Face Quilled |
| Ll | 2 3/25" |
| Lq | 5.19" |
| Material | Cast Iron |
| Max. Input Hp | 2 193/200 hp , 2.965 hp |
| Max. Ohl (output Shaft) | 1750 |
| Max. Thrust Load (output Shaft) | 2091 |
| Mounting Type | Shaft Mount |
| No. Of Gear Reductions | 1 |
| Output | Hollow |
| Output Dia. | 1.438" |
| Output Hollow Shaft Dia. | 1.438" |
| Output Hp | 2.549 hp |
| Output Key Size | 3/8" x 3" |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H1 |
| Output Shaft Direction | H1 |
| Output Shaft Orientation | H1 |
| Output Shaft Thrust Rating | 2091 |
| Output Shaft Type | Hollow Shaft |
| Output Speed | 87 RPM |
| Output Style | H1 |
| Output Torque | 1836 lbs.-in. |
| Output Type | Hollow Bore |
| Overhung Load Rating | 1750 lbs. |
| P | 1 22/25" |
| Paint/coating | Blue |
| Product Line | NH Series - Ironman Narrow Housing Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Reduction Type | Single |
| Rq | 4.82" |
| Series | NH Series |
| Series Style | NH-HMQ-H1 |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 87 RPM |
| T | 1.438 |
| V | 1.94" |
Shipping Info:
| Ship weight (kg) | 21.15 |
| Ship height (cm) | 29.85 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 31.12 |
Product Variants
| Product | Model | max. input hp | output torque | mounting type | center distance | input style | output style | assembly | output shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NH8260018.00 | 2 487/1000 hp | 1869 lbs.-in. | Base | 2.63" | Solid Shaft | R | B-R | Solid Shaft | €1,543.68 | |
 |
NH8260039.00 | 4.492 hp | 1475 lbs.-in. | Base | 2.63" | Flexible Coupling Input | L | BM-L | Solid Shaft | €1,706.32 | |
|
NH8260030.00 | 2.487 hp | 1869 lbs.-in. | Base | 2.63" | Solid Shaft | D | B-D | Solid Shaft | €1,632.82 | |
 |
NH8260178.00 | 1 27/125 hp | 1805 lbs.-in. | Base | 2.63" | C Face Quill | D | BMQ-D | Solid Shaft | €1,797.05 | |
|
NH8260175.00 | 2.145 hp | - | Base | 2.63" | C Face Quill | - | - | - | €1,797.05 | |
|
NH8260206.00 | 4 239/250 hp | 1235 lbs.-in. | Base | 2.63" | C Face Quill | D | BMQ-D | Solid Shaft | €1,797.05 | |
|
NH8260557.20 | 1 21/50 hp | 1843 lbs.-in. | Shaft Mount | 2.63" | C Face Quill | H1 | HMQ-H1 | Hollow Bore | €2,430.46 |
