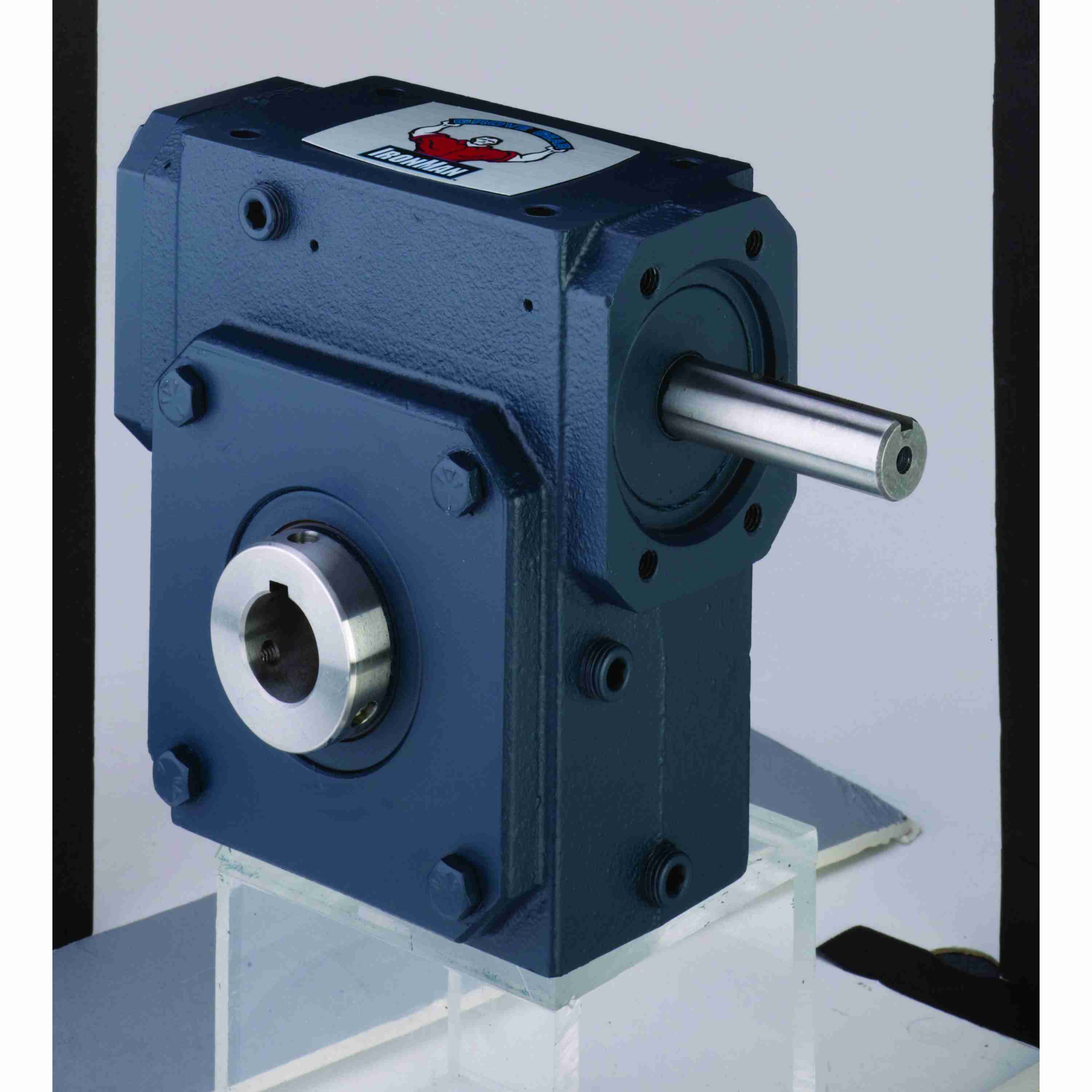

GROVE GEAR NH8210503.20 NH-H821-10-H1-20 Solid Input Shaft Worm Gear Reducer, Hollow Bore Output Worm Gear
Get it by Monday, Dec 22
€790.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Assembly | H-H1 |
| Bore Code | 20 |
| Center Distance | 2.06" |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Dia. | 5/8" |
| Input Hp @ 1750 Rpm | 2 58/125 hp |
| Input Keyway Size | 3/16" x 1.38" |
| Input Rpm | 1750 RPM |
| Input Style | Solid Shaft |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1 1/4" |
| Output Key Size | 1/4" x 3" |
| Output Rpm | 175 RPM |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H1 |
| Output Shaft Orientation | H1 |
| Output Shaft Thrust Rating | 898 |
| Output Torque | 805 lbs.-in. |
| Product Line | NH Series - Ironman Narrow Housing Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Series | NH Series |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Weight | 22 lbs. |
Shipping Info:
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Input Hp | Output Shaft Type | Overhung Load | Gear Ratio | Output Torque | Mounting Type | Frame | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NH8210543.20 | 1.129 hp | Hollow Shaft | - | - | 968 lbs.-in. | Shaft Mount | 56C | - | €1,733.40 | |
 |
NH8210045.00 | 0.769 hp | Left Handed Shaft | 1385 lbs. | - | 970 lbs.-in. | Base | 56C | - | €1,174.54 | |
|
NH8215004.00 | - | - | - | - | - | - | - | - | €1,389.57 | |
|
NH8210069.00 | 0.769 hp | Double Shaft | - | - | 970 lbs.-in. | Base | 56C | - | €1,242.42 | |
 |
NH8210124.00 | 1.887 hp | Right Handed Shaft | - | 15:1 | - | Base | - | - | €1,174.54 | |
 |
NH8210172.00 | 1.887 hp | Double Shaft | 1125 lbs. | - | 897 lbs.-in. | Base | 140TC | - | €1,242.42 | |
|
NH8210132.00 | 0.217 hp | Right Handed Shaft | 1580 lbs. | - | 439 lbs.-in. | Base | 56C | - | €1,174.54 |
