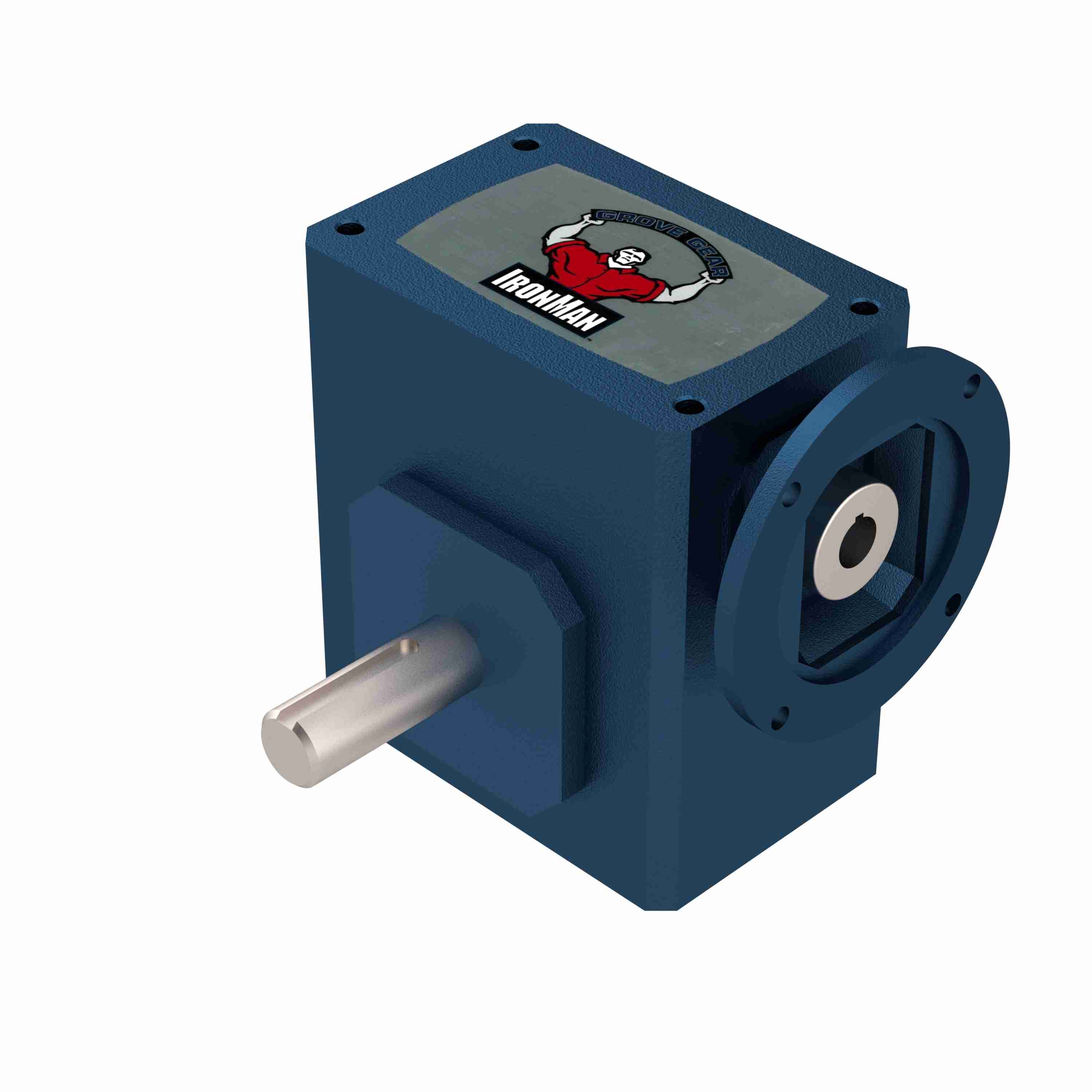

GROVE GEAR GRL8320150.00 GRL-BMQ832-40-L-140 Right Angle Gear Reducer, 40 to 1 Reduction Ratio, 43 RPM Output, 3303 lb-in Torque, H1 Left Output
Get it by Tuesday, Aug 25
€2,100.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 5.75 |
| Aj | 5.88 |
| Application | General Purpose |
| B | 8.5 |
| Be | 0.38" |
| Bf | 0.41 |
| C | 9.38" |
| Center Distance | 3 1/4" |
| Centre Distance | 3 1/4" |
| Family Name | Cast Iron Housing Material Worm Gear Reducers |
| Gear Drive Reductions | Single |
| Gear Ratio | 40:1 |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Hp | 2.93 hp |
| I | 5.02" |
| Input Bore (c Face) | 0.875 |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Hp | 2.926 hp |
| Input Hp @ 1750 Rpm | 2.926 hp |
| Input Keyway Size | 3/16" x 3/32" |
| Input Size | 7/8" |
| Input Style | C Face Quill |
| J | 7 1/2" |
| K | 3 3/4" |
| Lm | 9.01 |
| Lq | 6.14" |
| Lubrication | PAG Synthetic Oil |
| Lubrication Type | Pag Synthetic Oil |
| M | 2.38 |
| Material | Cast Iron |
| Max. Hp | 2 93/100 hp |
| Max. Input Hp | 2.926 hp |
| Max. Ohl (output Shaft) | 2275 |
| Max. Overhung Load | 2275 lbs. |
| Max. Thrust Load (output Shaft) | 2574 |
| Motor Hp | 2 hp |
| Mounting Type | Base |
| N | 7.06 |
| No. Of Gear Reductions | Single |
| Nominal Motor Hp Rating To Hp @ 1750 Rpm | 2 hp |
| O | 3.66" |
| Output | Left |
| Output Dia. | 1 3/8" |
| Output Hp | 2.293 hp |
| Output Keyway Size | 0.3125" x 2.63" |
| Output Shaft | Solid Shaft |
| Output Shaft Dia | 1.375 |
| Output Shaft Dia. | 1 3/8" |
| Output Shaft Direction | Left |
| Output Shaft Length | 3 9/25" |
| Output Shaft Orientation | L |
| Output Shaft Thrust Rating | 2574 |
| Output Shaft Type | Left Handed Shaft |
| Output Speed | 43.75 RPM |
| Output Style | L |
| Output Type | Shaft |
| Overhung Load Rating | 2275 lbs. |
| Paint/coating | Blue |
| Product Line | GRL Series - Ironman Worm Gear Reducers |
| Product Series | GRL Series |
| Ratio | 40:1 |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Rq | 5.51" |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Service Factor 1 | 1.465 SF @ 2 HP |
| Service Factor 2 | 1.95 SF @ 1 1/2 HP |
| Service Factor 3 | 2.93 SF @ 1 HP |
| Shaft Seal Material | Viton |
| Speed | 43 RPM |
| T | 1.375 |
| Tap Depth | 22/25" |
| Torque | 3303 lbs.-in. |
| Torque (lb-in)@1750rpm | 3303 |
| Type | Right Angle Single Reduction |
| U | 7/8" |
Shipping Info:
| Ship weight (kg) | 33.75 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 49.23 |
| Ship width (cm) | 38.43 |
Product Variants
| Model | Output Speed | Output Hp | Output Torque | Max. Input Hp | Output Dia. | Input Dia. | Paint/coating | Gear Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GRL8320307.00 | 58 RPM | 2.986 hp | 3226 lbs.-in. | 3.619 hp | 1 3/8" | 1 3/8" | Blue | Worm | €2,558.79 | |
| GRL8320047.00 | 35 RPM | 1.841 hp | 3315 lbs.-in. | 2.462 hp | 1 3/8" | 7/8" | Blue | Worm | €2,655.47 | |
| GRL8320309.00 | 35 RPM | 1.841 hp | 3315 lbs.-in. | 2.462 hp | 1 3/8" | 1 3/8" | Blue | Worm | €2,558.79 | |
| GRL8320025.00 | 175 RPM | 7.497 hp | 2700 lbs.-in. | 8 23/250 hp | 1 3/8" | 7/8" | Blue | Worm | €2,558.79 | |
| GRL8320046.00 | 43 RPM | 2.293 hp | 3303 lbs.-in. | 2.926 hp | 1 3/8" | 7/8" | Blue | Worm | €2,655.47 | |
| GRL8320086.00 | 43 RPM | - | 3303 lbs.-in. | - | 1 3/8" | 7/8" | - | Worm | €1,386.53 | |
| GRL8320191.00 | 35 RPM | - | 3315 lbs.-in. | - | 1 3/8" | - | - | Worm | €1,440.79 |
