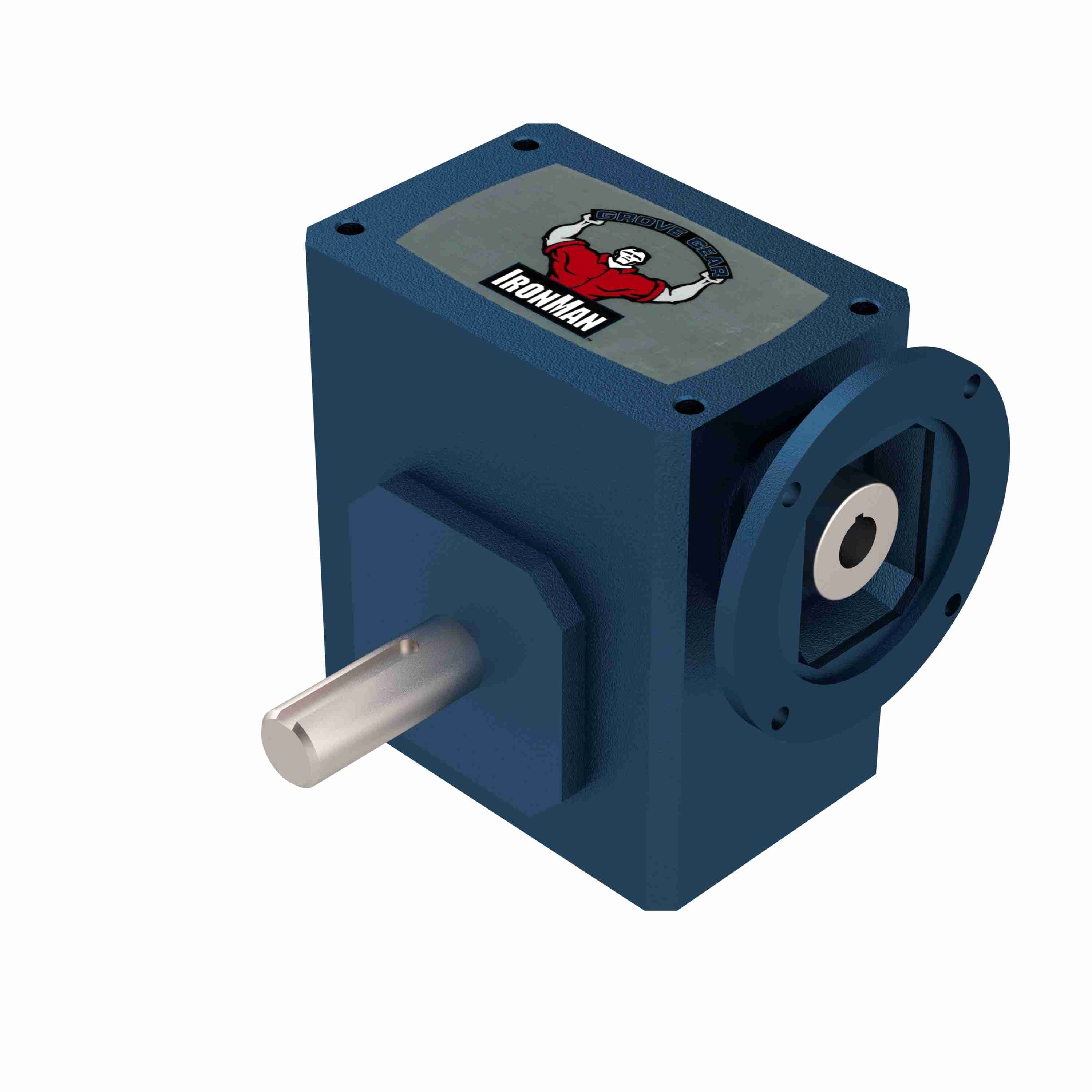

GROVE GEAR GRL8320105.00 GRL-B832-5-D Right Angle Gear Reducer, 5 to 1 Reduction Ratio, 350 RPM Output, 2033 lb-in Torque, Dual Shaft Output
Get it by Tuesday, Jul 14
€2,298.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 5.75 |
| Application | General Purpose |
| Assembly | B-D |
| B | 8.5 |
| C | 9.38" |
| Center Distance | 3 1/4" |
| Family Name | Cast Iron Housing Material Worm Gear Reducers |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Cast Iron |
| I | 5.02" |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Hp | 11 23/25 hp |
| Input Hp @ 1750 Rpm | 11 23/25 hp |
| Input Keyway Size | 3/16" x 1.63" |
| Input Speed | 1750 RPM |
| Input Style | Solid Shaft |
| Input Type | Solid Shaft |
| J | 7 1/2" |
| K | 3 3/4" |
| M | 2.38 |
| Material | Cast Iron |
| Max. Input Hp | 11 23/25 hp |
| Max. Ohl (output Shaft) | 2275 |
| Max. Thrust Load (output Shaft) | 1605 |
| Mount Style | B |
| Mounting Type | Base |
| N | 7.06 |
| Nema Input Mounting | Solid Shaft |
| No. Of Gear Reductions | 1 |
| O | 3.66" |
| Output Dia. | 1 3/8" |
| Output Hp | 11 29/100 hp |
| Output Key Size | 5/16" x 2.63" |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | D |
| Output Shaft Dia | 1.375 |
| Output Shaft Direction | Double |
| Output Shaft Orientation | LR |
| Output Shaft Thrust Rating | 1605 |
| Output Shaft Type | Double Shaft |
| Output Speed | 350 RPM |
| Output Style | D |
| Output Torque | 2033 lbs.-in. |
| Output Type | Solid Shaft |
| Overhung Load | 2275 lbs. |
| Overhung Load Rating | 2275 lbs. |
| Paint/coating | Blue |
| Product Line | GRL Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Reduction Type | Single |
| Series | GRL Series |
| Series Style | GRL-B-D |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 350 RPM |
| T | 1.375 |
| Tap Depth | 22/25" |
| Tap Size | 7/16"-14 |
| Thread Type | Coarse |
| Torque (lb-in)@1750rpm | 2033 |
| U | 7/8" |
Shipping Info:
| Ship weight (kg) | 31.95 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 49.23 |
| Ship width (cm) | 38.43 |
Product Variants
| Model | output torque | max. input hp | series | gear type | mounting type | gear ratio | center distance | output shaft assembly code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GRL8320307.00 | 3226 lbs.-in. | 3.619 hp | GRL Series | Worm | Base | - | 3 1/4" | R | €2,558.79 | |
| GRL8320047.00 | 3315 lbs.-in. | 2.462 hp | GRL Series | Worm | Base | - | 3 1/4" | D | €2,655.47 | |
| GRL8320309.00 | 3315 lbs.-in. | 2.462 hp | GRL Series | Worm | Base | - | 3 1/4" | R | €2,558.79 | |
| GRL8320025.00 | 2700 lbs.-in. | 8 23/250 hp | GRL Series | Worm | Base | - | 3 1/4" | L | €2,558.79 | |
| GRL8320046.00 | 3303 lbs.-in. | 2.926 hp | GRL Series | Worm | Base | - | 3 1/4" | D | €2,655.47 | |
| GRL8320086.00 | 3303 lbs.-in. | - | GRL Series | Worm | - | - | 3 1/4" | R | €1,386.53 | |
| GRL8320191.00 | 3315 lbs.-in. | - | GRL Series | Worm | - | - | 3 1/4" | D | €1,440.79 |
