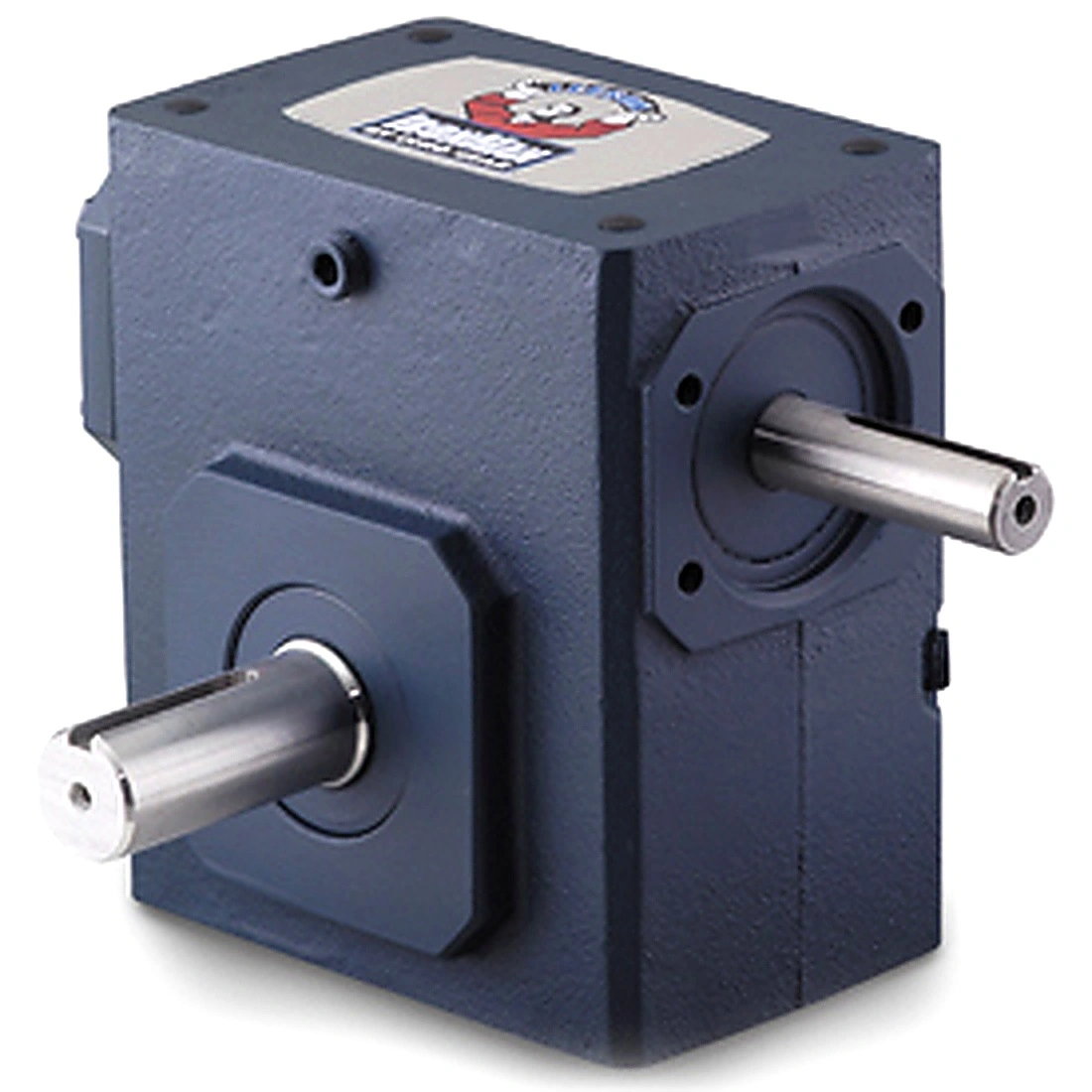

GROVE GEAR GRL8320003.00 Worm Reducer, 20:1 Ratio, 0.875 Inch I.D, 1.375 Inch O.D, Cast Iron | BG3CCP

GROVE GEAR GRL8320003.00 GRL-B832-20-L Right Angle Gear Reducer, 20 to 1 Reduction Ratio, 87 RPM Output, 3267 lb-in Torque, H1 Left Output

Item: BG3CCPModel: GRL8320003.00Cross Ref: GRL-B832-20-L
Check Availability
In Stock
Ratio

Get it by Tuesday, Aug 18

€2,201.97 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
A 5.75
Application General Purpose
Assembly B-L
B 8.5
C 9.38"
Center Distance 3 1/4"
Family Name Cast Iron Housing Material Worm Gear Reducers
Gear Drive Reductions Single
Gear Type Worm
Gearbox Type Worm
Gross Weight 0 lbs.
Housing Material Cast Iron
I 5.02"
Input Bore Size 7/8"
Input Dia. 7/8"
Input Hp 5 9/50 hp
Input Hp @ 1750 Rpm 5 9/50 hp
Input Keyway Size 3/16" x 1.63"
Input Speed 1750 RPM
Input Style Solid Shaft
Input Type Solid Shaft
J 7 1/2"
K 3 3/4"
M 2.38
Material Cast Iron
Max. Input Hp 5 9/50 hp
Max. Ohl (output Shaft) 2275
Max. Thrust Load (output Shaft) 2574
Mount Style B
N 7.06
Nema Input Mounting Solid Shaft
No. Of Gear Reductions 1
O 3.66"
Output Dia. 1 3/8"
Output Hp 4 67/125 hp
Output Key Size 5/16" x 2.63"
Output Shaft Solid Shaft
Output Shaft Assembly Code L
Output Shaft Dia 1.375
Output Shaft Direction Left
Output Shaft Orientation L
Output Shaft Thrust Rating 2574
Output Shaft Type Left Handed Shaft
Output Speed 87 RPM
Output Style L
Output Torque 3267 lbs.-in.
Output Type Solid Shaft
Overhung Load 2275 lbs.
Overhung Load Rating 2275 lbs.
Paint/coating Blue
Product Line GRL Series - Ironman Worm Gear Reducers
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reducer Type Single
Reduction Single
Reduction Type Single
Series GRL Series
Series Style GRL-B-L
Series Type Cast Iron 800 Worm Gear Reducers
Service Factor 1
Shaft Seal Material Viton
Speed 87 RPM
T 1.375
Tap Depth 22/25"
Tap Size 7/16"-14
Thread Type Coarse
Torque (lb-in)@1750rpm 3267
U 7/8"

Shipping Info:

Ship weight (kg) 29.25
Ship height (cm)38.1
Ship length (cm)49.23
Ship width (cm)38.43

Product Variants

ProductModelOutput SpeedOutput HpOutput TorqueMax. Input HpOutput Dia.Input Dia.Paint/coatingGear TypePrice
GROVE GEAR GRL8320307.00 Worm Reducer, 30:1 Ratio, 1.375 Inch I.D, 1.375 Inch O.D, Cast Iron | AX4BAQ GRL8320307.0058 RPM2.986 hp3226 lbs.-in.3.619 hp1 3/8"1 3/8"BlueWorm€2,558.79
GROVE GEAR GRL8320047.00 Worm Reducer, 50:1 Ratio, 0.875 Inch I.D, 1.375 Inch O.D, Cast Iron | AX4BBB GRL8320047.0035 RPM1.841 hp3315 lbs.-in.2.462 hp1 3/8"7/8"BlueWorm€2,655.47
GROVE GEAR GRL8320309.00 Worm Reducer, 50:1 Ratio, 1.375 Inch I.D, 1.375 Inch O.D, Cast Iron | AX4NYL GRL8320309.0035 RPM1.841 hp3315 lbs.-in.2.462 hp1 3/8"1 3/8"BlueWorm€2,558.79
GROVE GEAR GRL8320025.00 Worm Reducer, 10:1 Ratio, 0.875 Inch I.D, 1.375 Inch O.D, Cast Iron | AX4ZJL GRL8320025.00175 RPM7.497 hp2700 lbs.-in.8 23/250 hp1 3/8"7/8"BlueWorm€2,558.79
GROVE GEAR GRL8320046.00 Worm Reducer, 40:1 Ratio, 0.875 Inch I.D, 1.375 Inch O.D, Cast Iron | AX6XLZ GRL8320046.0043 RPM2.293 hp3303 lbs.-in.2.926 hp1 3/8"7/8"BlueWorm€2,655.47
GROVE GEAR GRL8320086.00 Reducer, 3-Piece Coupled Input Output Shaft Right Worm Gear | AX6XMA GRL8320086.0043 RPM-3303 lbs.-in.-1 3/8"7/8"-Worm€1,386.53
GROVE GEAR GRL8320191.00 Quill Input Worm Gear Reducer, 3.25 Inch Distance, 3315 Inch/lbs Torque, Cast Iron | AX8AQC GRL-BMQ832-50-D-180 GRL8320191.0035 RPM-3315 lbs.-in.-1 3/8"--Worm€1,440.79
