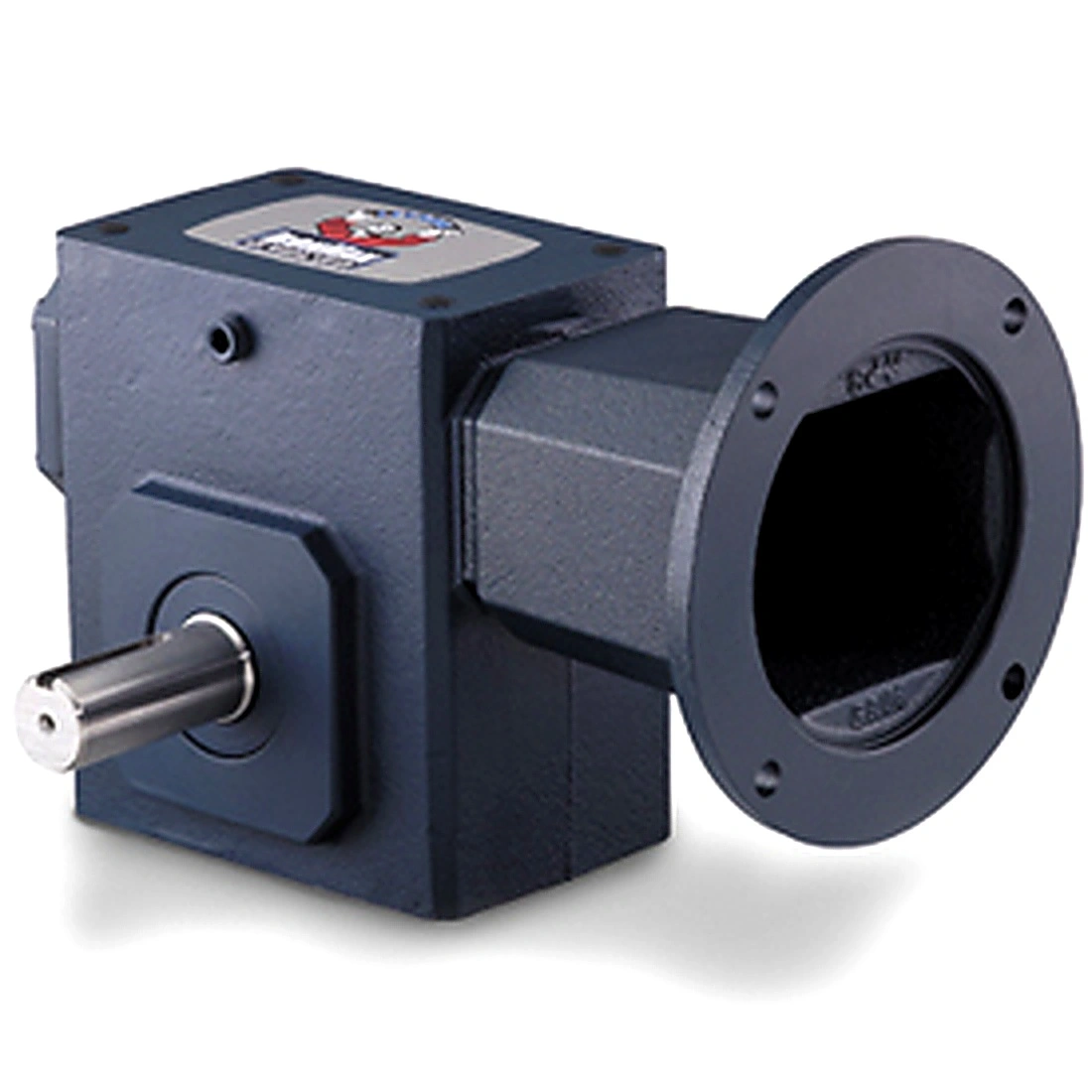

GROVE GEAR GRL8210076.00 GRL-BM821-15-L-140 Right Angle Gear Reducer, 15 to 1 Reduction Ratio, 116 RPM Output, 897 lb-in Torque, H1 Left Output

Item: AY9JNRModel: GRL8210076.00Cross Ref: GRL-BM821-15-L-140
Check Availability
In Stock
15:1
143-5TC
BM

Get it by Tuesday, Jul 14

€1,280.11 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
A 3.81
Aj 5.88
Application General Purpose
Assembly BM-L
B 5.8
Be 0.38"
Bf 0.41
C 6.38"
Center Distance 2.06"
D 2.28
F 2.88
Frame 140TC
G 1.44
Gear Drive Reductions Single
Gear Type Worm
Gearbox Type Worm
Gross Weight 0 lbs.
Housing Material Cast Iron
I 3.61"
Input Bore (c Face) 7/8"
Input Bore Size 7/8"
Input Dia. 5/8"
Input Hp 1.887 hp
Input Hp @ 1750 Rpm 1.887 hp
Input Keyway Size 3/16" x 1.38"
Input Keyway Size (c Face) 3/16" x 3/32"
Input Speed 1750 RPM
Input Style Flexible Coupling Input
Input Type C-Face Coupled
J 5"
K 2 1/2"
Lm 7.07
Material Cast Iron
Max. Input Hp 1 887/1000 hp , 1.887 hp
Max. Ohl (output Shaft) 1125
Max. Thrust Load (output Shaft) 1099
Mounting Type Base
N 4.68
No. Of Gear Reductions 1
O 2.29"
Output Left
Output Dia. 1"
Output Hp 1.661 hp
Output Key Size 1/4" x 1.44"
Output Shaft Solid Shaft
Output Shaft Assembly Code L
Output Shaft Dia. 1"
Output Shaft Direction Left
Output Shaft Orientation L
Output Shaft Thrust Rating 1099
Output Shaft Type Left Handed Shaft
Output Speed 116 RPM
Output Style L
Output Torque 897 lbs.-in.
Output Type Solid Shaft
Overhung Load 1125 lbs.
Overhung Load Rating 1125 lbs.
Paint/coating Blue
Product Line GRL Series - Ironman Worm Gear Reducers
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reducer Type Single
Reduction Single
Reduction Type Single
Series GRL Series
Series Style GRL-BM-L
Service Factor 1
Shaft Seal Material Viton
Speed 116 RPM
Tap Depth 0.63"
Tap Size 5/16"-18
Thread Type Coarse
Torque (lb-in)@1750rpm 897
U 5/8"

Shipping Info:

Ship weight (kg) 13.5
Ship height (cm)26.67
Ship length (cm)27.15
Ship width (cm)23.01

Product Variants

ProductModeloutput torquemax. input hpgear typeseriesmounting typegear ratiocenter distanceno. of gear reductionsPrice
GROVE GEAR GRL8210102.00 Reducer, 3-Piece Coupled, Input Output Shaft, Double Worm | AX3ZAJ GRL-BM821-25-D-140 GRL8210102.00985 lbs.-in.-WormGRL Series--2.06"1€745.65
GROVE GEAR GRL8210057.00 Worm Reducer, 50:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Cast Iron | AX3ZNJ GRL8210057.00970 lbs.-in.0.769 hpWormGRL SeriesBase-2.06"1€1,280.11
GROVE GEAR GRL8210142.00 Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Cast Iron | AX4FLG GRL8210142.00-337/500 hp----2.06"-€1,323.17
GROVE GEAR GRL8210114.00 Worm Reducer, 25:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Cast Iron | AX4GMY GRL8210114.00-1 333/1000 hp----2.06"-€1,280.11
GROVE GEAR GRL8210118.00 Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Cast Iron | AX4HPA GRL8210118.00-337/500 hp----2.06"-€1,050.98
GROVE GEAR GRL8213507.20 Worm Reducer, 30:1 Ratio, 0.625 Inch I.D, 1.25 Inch O.D, Cast Iron | AX4JCR GRL8213507.20-1.129 hp--Shaft30:12.06"-€1,933.47
GROVE GEAR GRL8210121.00 Worm Reducer, 5:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Cast Iron | AX4JZZ GRL8210121.00-3 653/1000 hp----2.06"-€1,262.34
