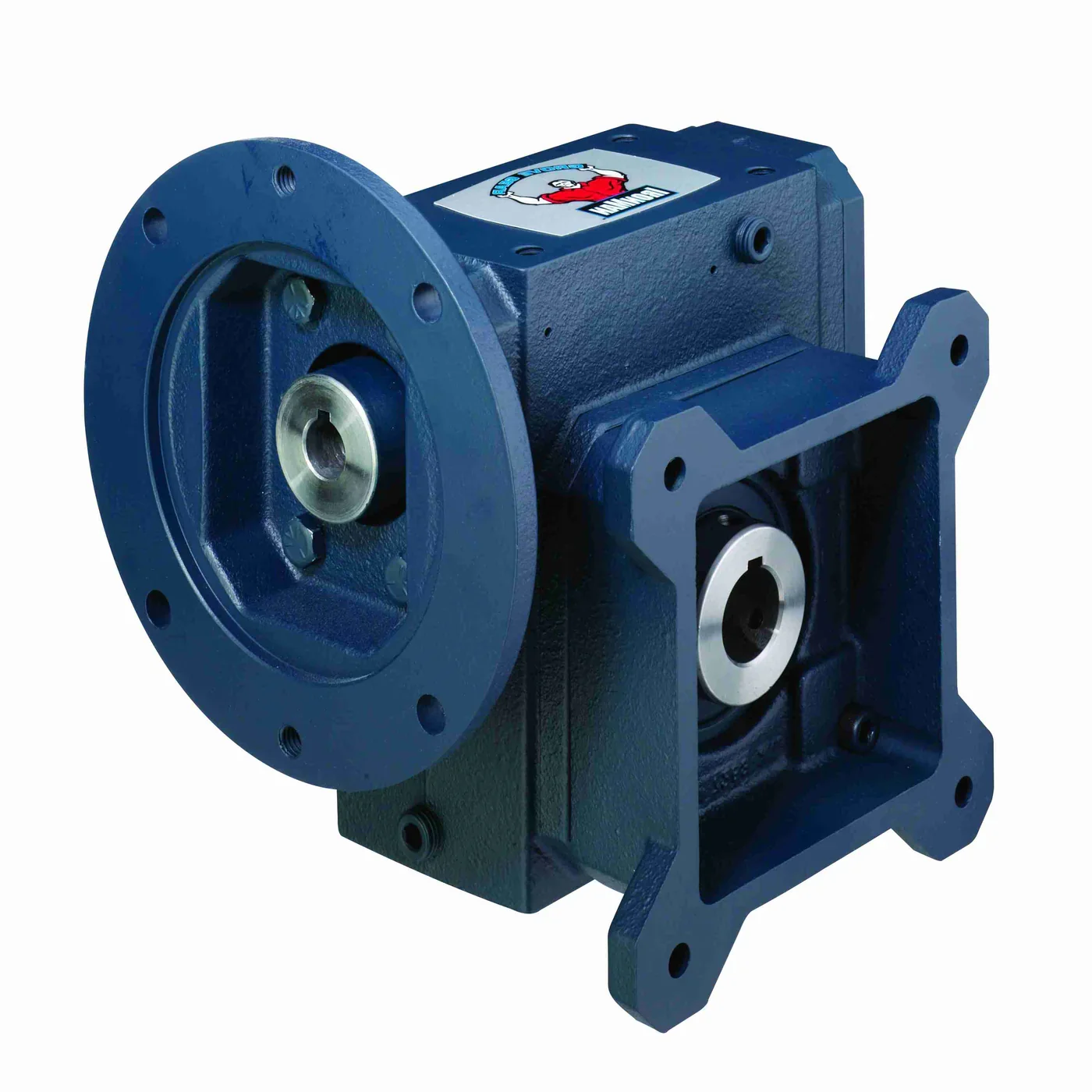

GROVE GEAR GRGF21001265.16 Right Angle Gear Reducer, 5 to 1 Reduction Ratio, 350 RPM Output, 614 lb-in Torque, Cast Iron
Get it by Tuesday, Aug 25
€1,881.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| A | 3.81 |
| Application | General Purpose |
| B | 5.8 |
| Be | 0.38" |
| Center Distance | 2.06" |
| D | 2.28 |
| Gear Type | Worm |
| Gross Weight | 0 lbs. |
| H | 0.41" |
| I | 3.61" |
| Input Bore (c Face) | 0.875 |
| Input Dia. | 7/8" |
| Input Hp | 3.653 hp |
| Input Quill Dia. | 7/8" |
| Input Style | C-Face Quill |
| Input Type | C-Face Quilled |
| Lq | 4.46" |
| Max. Input Hp @ 1750 | 3.653 hp |
| No. Of Gear Reductions | Single |
| Output Config | Flanged Left |
| Output Dia. | 1" |
| Output Hp | 3 41/100 hp |
| Output Shaft | Hollow Bore |
| Output Speed | 350 |
| Output Speed @ 1750 Rpm Input | 350 |
| Overhung Load Rating | 1000 lbs. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Product Type | Right Angle |
| R | 3.69" |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reduction | Single |
| Rq | 4.06" |
| Series Size | 821 |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Shaft Center Distance | 2.06 |
| Shaft Center Height | 2.28 |
| Shaft Seal Material | Viton |
| Speed | 350 RPM |
| Torque (lb-in)@1750rpm | 614 |
| V | 11/25" |
| X | 7" |
| Y | 5.99" |
Shipping Info:
| Ship weight (kg) | 14.85 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 17.78 |
