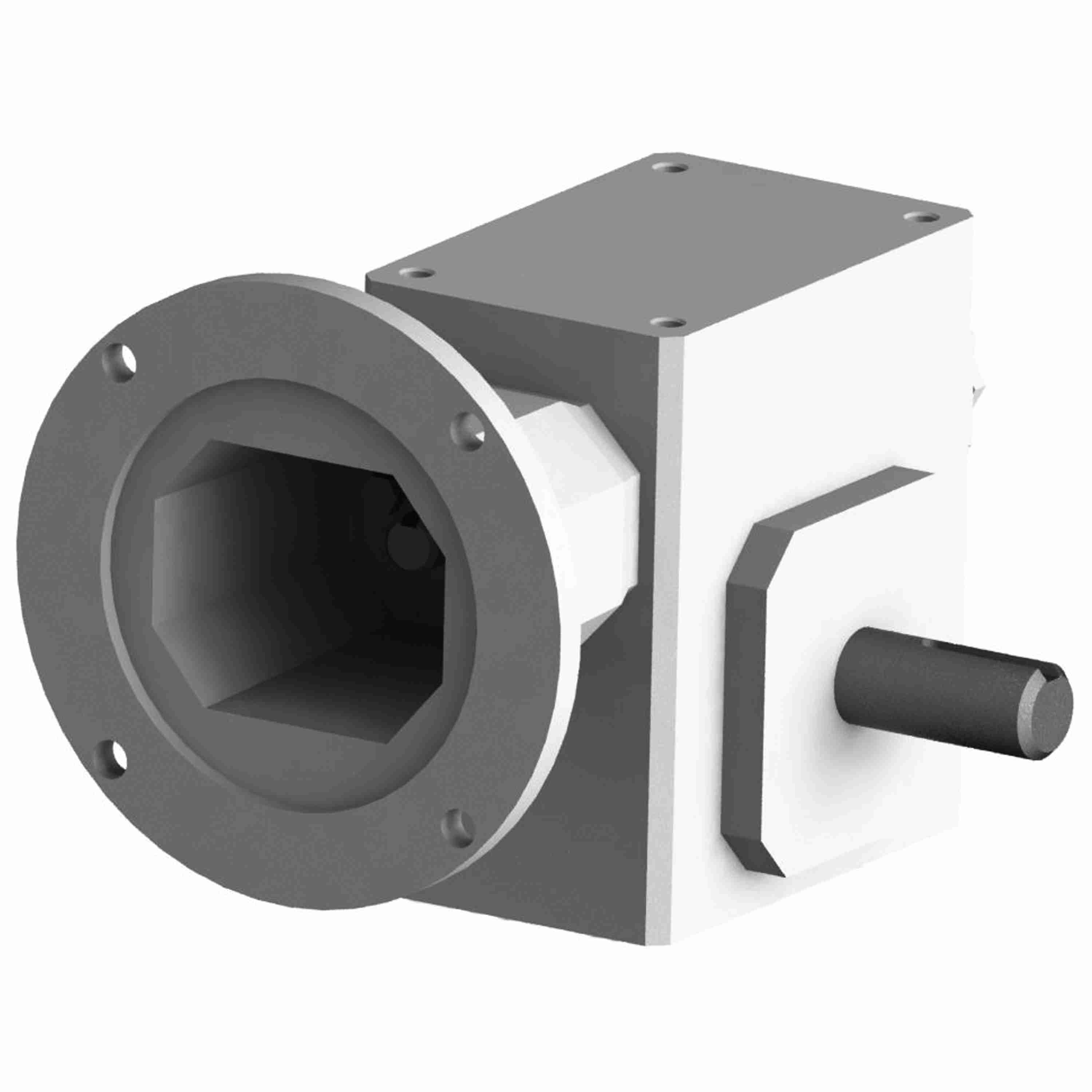

GROVE GEAR GRG8265604.00 GRG-WBM826-60-R-140 Worm Reducer, 60:1 Ratio, 0.875 Inch I.D, 1.25 Inch O.D, Cast Iron
Get it by Wednesday, Jul 15
€2,155.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Center Distance | 2.63" |
| Centre Distance | 2.63" |
| Gear Drive Reductions | Single |
| Gear Ratio | 60:1 |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Input Bore (c Face) | 0.875 |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Keyway Size | 3/16" x 3/32" |
| Input Size | 7/8" |
| Input Style | C Face Coupled |
| Lubrication | PAG Synthetic Oil |
| Lubrication Type | Pag Synthetic Oil |
| Material | Cast Iron |
| Max. Input Hp | 1 27/125 hp , 1.216 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | Single |
| Output | Right |
| Output Dia. | 1 1/4" |
| Output Hp | 0.835 hp |
| Output Keyway Size | 1/4" x 1 3/4" |
| Output Shaft | Shaft |
| Output Shaft Dia. | 1 1/4" |
| Output Shaft Direction | Right |
| Output Shaft Length | 2.73" |
| Output Shaft Orientation | R |
| Output Shaft Type | Right Handed Shaft |
| Output Style | R |
| Output Type | Shaft |
| Paint/coating | White Epoxy |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Product Series | GRG Series |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Shaft Seal Material | Viton |
| Speed | 29 RPM |
| Torque | 1805 lbs.-in. |
| Type | Right Angle Single Reduction |
Shipping Info:
| Ship weight (kg) | 25.65 |
| Ship height (cm) | 29.85 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 31.12 |
Product Variants
| Product | Model | max. input hp | mounting type | series | gear type | gear ratio | output torque | center distance | input style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
GRG8265708.00 | 2 29/200 hp | Base | GR Series | Worm | - | 1883 lbs.-in. | 2.63" | C Face Coupled | €1,199.76 |
