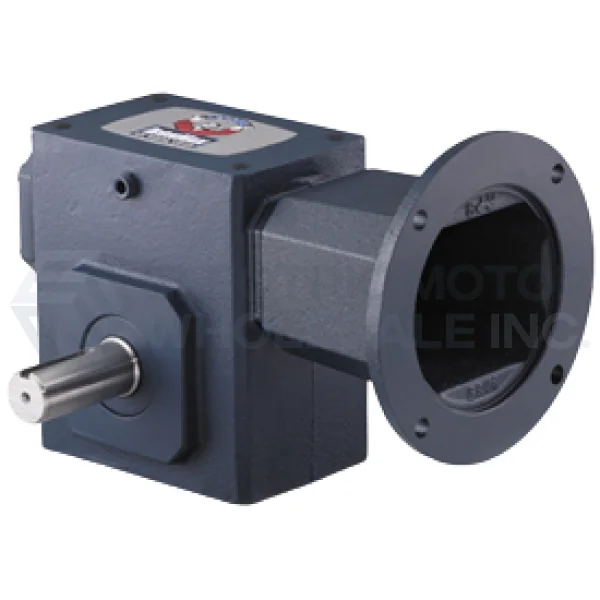

GROVE GEAR GRG8260133.00 Reducer, 3-Piece Coupled, Input Output Shaft, Double Worm | AY3TFF GRG-BM826-5-D-180

GROVE GEAR GRG8260133.00 GRG-BM826-5-D-180 Right Angle Gear Reducer, 5 to 1 Ratio, 1.25 Inch Dual Output Shaft, 182-4TC NEMA Input, Cast Iron

Item: AY3TFFModel: GRG8260133.00Cross Ref: GRG-BM826-5-D-180
Check Availability
In Stock

Get it by Tuesday, Sep 1

€1,045.04 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
A 4.84
Aj 7.25
Ak 8.5
Application General Purpose
Assembly BM-D
B 7.12
Bd 9
Be1 1/2"
Bf 0.53
C 8"
Center Distance 2.63"
D 2.94
F 3.38
Frame 180
G 1.69
Gear Type Worm
H-tap Size 3/8"-16
H-tap Type UNC
Housing Cast Iron
Housing Material Cast Iron
I 4.34"
Input Dia. 3/4"
Input Hp @ 1750 Rpm 6.693 hp
Input Keyway 3/16" x 1.63"
Input Keyway Size 3/16" x 1.63"
Input Speed 1750 , 1750 RPM
Input Style Flexible Coupling Input
J 6.38"
K 3.19"
L 6.07"
L1 9 8/25"
Max. Input Hp @1750 6.693 hp
Motor Frame Size 180
Mount Footprint 3.38 x 6.38
Mount Style BM
N 5.63
Nema Input Mounting 182-4TC
No. Of Gear Reductions 1 , Single
O 2 13/25"
Output Config Dual Shaft
Output Dia. 1 1/4"
Output Key 1/4 x 1.75
Output Key Size 1/4" x 1 3/4"
Output Shaft Solid Shaft
Output Shaft Assembly Code D
Output Shaft Dia. 1.25
Output Shaft Direction Double
Output Shaft Thrust Rating 1420
Output Speed 350 , 350 RPM
Output Speed @ 1750 Rpm Input 350
Output Torque 1130 lbs.-in.
Output Torque Rating (in-lb) 1130 lbs.-in.
Overhung Load Rating 1625 lbs.
Product Datasheet grove-gear-gr8130084-00.pdf
Product Line GRG Series - Ironman Worm Gear Reducers
Product Type Right Angle
Ratio 51
Reducer Worm - Right Angle
Reduction Ratio 5:1
Series GRG , GRG Series
Series Code Grg
Series Size 826
Service Factor 1
Shaft Center Distance 2.63
Shaft Center Height 2.94
Shaft Seal Material Viton
T 1.25
Tap Depth 0.69"
Tap Size 3/8"-16
Thread Type Coarse
Torque (lb-in)@1750rpm 1130 lbs.-in.
U 3/4"

Shipping Info:

Ship weight (kg) 25.65
Ship height (cm)20.32
Ship length (cm)30.48
Ship width (cm)25.4

Documentation:

Datasheet

Product Variants

ProductModelOutput SpeedOutput HpMax. Input HpOutput Dia.Input Dia.Output TorquePaint/coatingOutputPrice
GROVE GEAR GRG8260151.00 Worm Reducer, 30:1 Ratio, 0.625 Inch I.D, 1.25 Inch O.D, Cast Iron | AX4DCT GRG8260151.0058.3 RPM1.743 hp-1 1/4"5/8"-BlueLeft€1,462.42
GROVE GEAR GRG8265881.00 Quill Input Worm Gear Reducer | AX6LLD GRG8265881.0043.75 RPM1.287 hp---1854 lbs.-in.BlueLeft€1,529.75
GROVE GEAR GRG8260205.00 Worm Reducer, 5:1 Ratio, 0.875 Inch I.D, 1.25 Inch O.D, Cast Iron | AX6WDF GRG8260205.00350 RPM6 69/250 hp6.693 hp1 1/4"7/8"1130 lbs.-in.Blue-€1,863.65
GROVE GEAR GRG8264029.00 Quill Input Worm Gear Reducer | AX7GDM GRG8264029.00------BlueRight€2,305.24
RFQ
GROVE GEAR GRG8263822.00 Quill Input Worm Gear Reducer | AX8APX GRG8263822.00-------Right€1,825.42
RFQ
GROVE GEAR GRG8264038.00 Quill Input Worm Gear Reducer | AX8MVJ GRG8264038.00------BlueRight€2,305.24
RFQ
GROVE GEAR GRG8264009.00 Quill Input Worm Gear Reducer | AX8NVT GRG8264009.00------BlueLeft€2,305.24
RFQ
