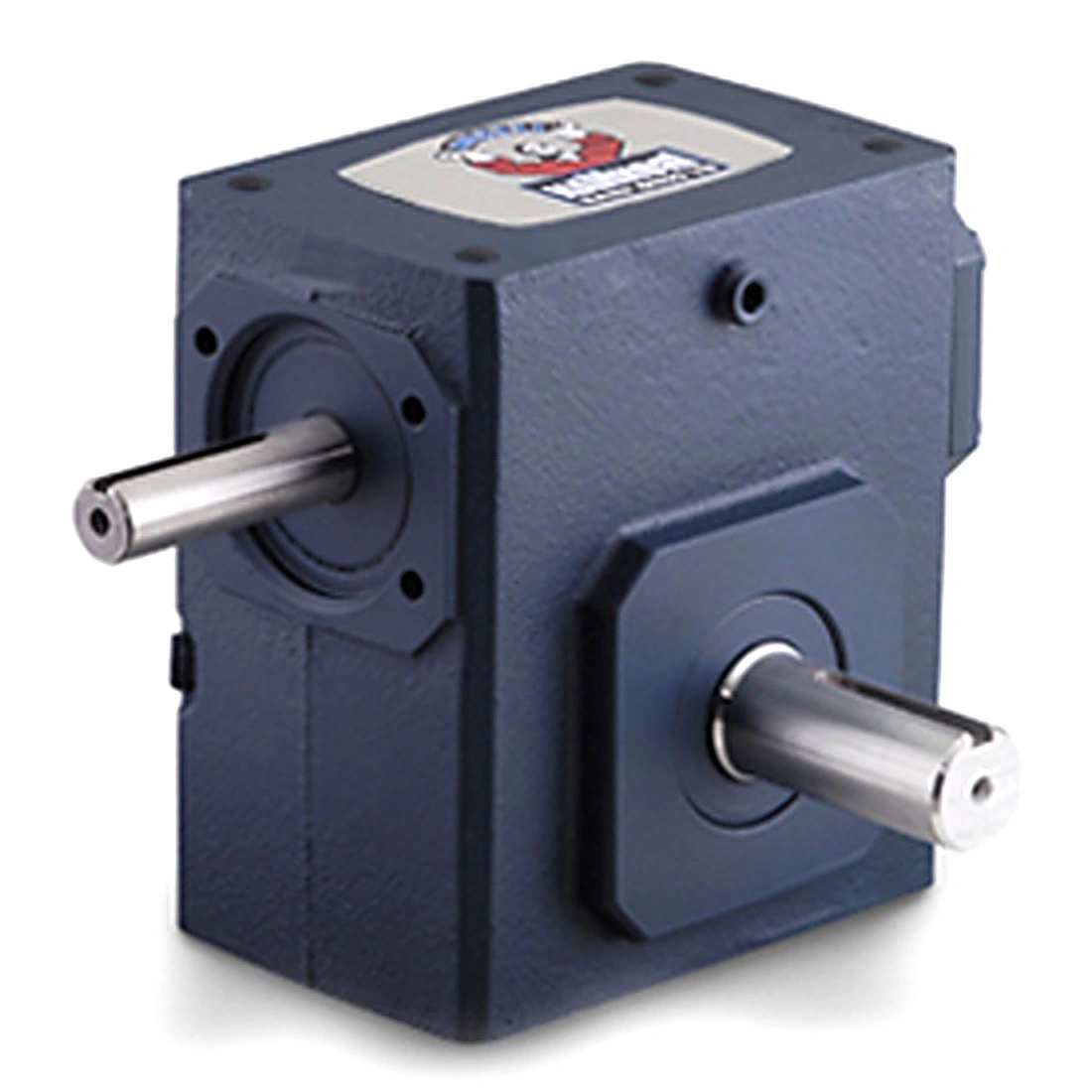

GROVE GEAR GR8600099.00 Solid Input Shaft Worm Gear Reducer, Double Worm | AY6PNE GR-B860-100-D

GROVE GEAR GR8600099.00 GR-B860-100-D Right Angle Gear Reducer, 100 to 1 Ratio, 2.5 Inch Dual Output Shaft, Solid Shaft Input, 19 RPM Output

Item: AY6PNEModel: GR8600099.00Cross Ref: GR-B860-100-D
Check Availability
In Stock

Get it by Tuesday, Aug 18

€5,141.01 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
A 8.13
Application General Purpose
Assembly B-D
B 14.25
C 16 1/2"
Center Distance 6"
D 6.5
F 6.38
Fa 11.13"
Fz 0.33"
G 3.19
Gear Type Worm
H-tap Size 5/8"-11
H-tap Type UNC
Housing Material Cast Iron
Input Dia. 1 1/2"
Input Hp @ 1750 Rpm 2.571 hp
Input Keyway 3/8" x 3"
Input Keyway Size 3/8" x 3"
Input Speed 1750 , 1750 RPM
Input Style Solid Shaft
J 12 3/4"
K 6.38"
L 11.78"
M 3.41
Max. Input Hp @ 1750 2 hp
Mount Footprint 6.38" x 12.75"
Mount Style B
N 10
Nema Input Mounting Solid Shaft
No. Of Gear Reductions 1 , Single
O 4.65"
Output Config Dual Shaft
Output Dia. 2 1/2"
Output Key 5/8 x 4
Output Key Size 5/8" x 4"
Output Shaft Solid Shaft
Output Shaft Assembly Code D
Output Shaft Dia. 2.5
Output Shaft Direction Double
Output Shaft Thrust Rating 3990
Output Speed 17 , 17 RPM
Output Speed @ 1750 Rpm Input 19
Output Torque 5886 lbs.-in.
Output Torque Rating (in-lb) 5886 lbs.-in.
Overhung Load Rating 3723 lbs.
Product Line GR Series - Ironman Worm Gear Reducers
Product Type Right Angle
Ratio 1001 to 2501
Reducer Worm - Right Angle
Reduction Ratio 100
Series GR , GR Series
Series Code Gr
Series Size 860
Service Factor 1
Shaft Center Distance 6
Shaft Center Height 6.5
Shaft Seal Material Viton
T 2.5
Tap Depth 1"
Tap Size 5/8"-11
Thread Type Coarse
Torque (lb-in)@1750rpm 5886 lbs.-in.
U 1 1/2"

Shipping Info:

Ship weight (kg) 144.45
Ship height (cm)36.83
Ship length (cm)60.96
Ship width (cm)45.72

Product Variants

ProductModelOutput SpeedOutput TorqueOutput Dia.Input Dia.Output HpMax. Input HpInput SpeedNo. Of Gear ReductionsPrice
GROVE GEAR GR8602352.00 Quill Input Worm Gear Reducer | AX6NBJ GR8602352.00--------€5,442.13
RFQ
GROVE GEAR GR8602257.00 Quill Input Worm Gear Reducer | AX7YCJ GR8602257.002.33 RPM27386 lbs.-in.--0.999 hp-1750 RPM-€9,633.93
RFQ
GROVE GEAR GR8600582.39 Hollow Bore Output Worm Gear Reducer, 6 Inch Distance, 9808 Inch/lbs Torque, Cast Iron | AX8GBH GR-HMQ860-60-H1-180-39 GR8600582.3929 RPM9808 lbs.-in.2.438"---1750 RPM1€7,266.64
GROVE GEAR GR8602309.00 Reducer, 3-Piece Coupled Input Output Shaft Right Worm Gear | AX8LAG GR8602309.00--------€9,633.93
RFQ
GROVE GEAR GR8600572.55 Worm Reducer, 100:1 Ratio, 0.875 Inch I.D, 3.438 Inch O.D, Cast Iron | AX8PTX GR8600572.5517 RPM5886 lbs.-in.3.438"7/8"1.635 hp2.571 hp1750 RPM1€12,958.83
GROVE GEAR GR8600601.40 Hollow Bore Output Worm Gear Reducer | AX8TPA GR8600601.4087 RPM10127 lbs.-in.2 1/2"---1750 RPM1€7,266.64
GROVE GEAR GR8600599.55 Hollow Bore Output Worm Gear Reducer | AX8WKU GR8600599.55175 RPM8467 lbs.-in.3.438"---1750 RPM1€7,266.64
