GROVE GEAR GR8520503.36 Solid Input Shaft Worm Gear Reducer, Hollow Bore Output Worm Gear | AY2NHZ

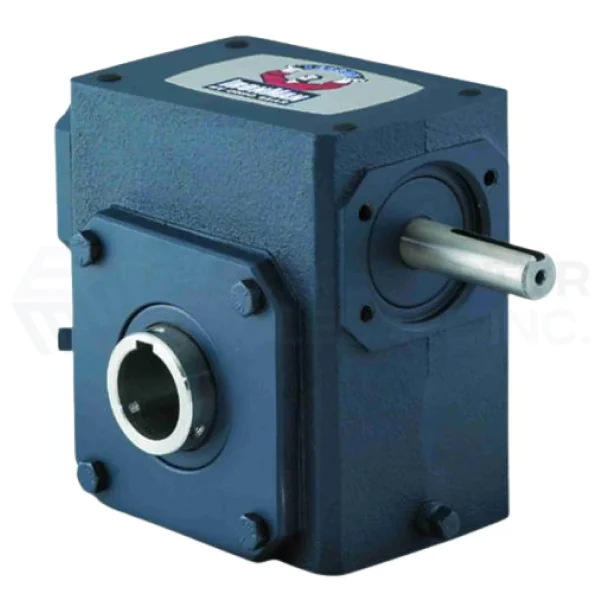

GROVE GEAR GR8520503.36 GR-H852-10-H1-36 Right Angle Gear Reducer, 10 to 1 Ratio, 2-1/4 Inch Hollow Bore, Solid Shaft Input, Cast Iron

Item: AY2NHZModel: GR8520503.36Cross Ref: GR-H852-10-H1-36
Check Availability
In Stock

Get it by Tuesday, Aug 18

€3,857.40 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
Ad 8.85
Ae1 0.97
Ae2 0.68
Ag 10.5
Application General Purpose
Assembly H-H1
B 13
Bore Code 36
C 14"
Center Distance 5 1/4"
D 5.12
F 5.81
G 2.91
Gear Type Worm
Hollow Bore Dimensions 2 1/4"
Housing Cast Iron
Housing Material Cast Iron
I 7 1/2"
Input Dia. 1 1/4"
Input Hp @ 1750 Rpm 23 3/20 hp
Input Keyway 1/4" x 3"
Input Keyway Size 1/4" x 3"
Input Speed 1750 , 1750 RPM
Input Style Solid Shaft
J 11"
L 10.88"
M 3.38
Max. Input Hp @ 1750 20 hp
Mount Footprint 5.81" x 11"
Mount Style H
Mounting Style Shaft Mount
Mounting Type Shaft Mount
Nema Input Mounting Solid Shaft
No. Of Gear Reductions 1 , Single
Output Config H1 Hollow Bore
Output Dia. 2 1/4"
Output Key 1/2 x 3.38
Output Key Size 1/2" x 3.38"
Output Shaft Hollow Bore
Output Shaft Assembly Code H1
Output Shaft Direction H1
Output Shaft Orientation H1
Output Shaft Thrust Rating 2449
Output Speed 175 , 175 RPM
Output Speed @ 1750 Rpm Input 175
Output Torque 7827 lbs.-in.
Output Torque Rating (in-lb) 7827 lbs.-in.
Overhung Load Rating 3370 lbs.
Product Line GR Series - Ironman Worm Gear Reducers
Product Type Right Angle
Ratio 101
Reducer Worm - Right Angle
Reduction Ratio 10:1
Series GR , GR Series
Series Code Gr
Series Size 852
Service Factor 1
Shaft Center Distance 5.25
Shaft Center Height 5.12
Shaft Seal Material Viton
T 2.25
Torque (lb-in)@1750rpm 7827 lbs.-in.
U 1 1/4"
V 4.26"

Shipping Info:

Ship weight (kg) 104.4
Ship height (cm)35.56
Ship length (cm)60.96
Ship width (cm)45.72

Product Variants

ProductModelOutput SpeedOutput TorqueOutput Dia.Input Dia.Output HpMax. Input HpInput SpeedNo. Of Gear ReductionsPrice
GROVE GEAR GR8520262.00 Worm Reducer, 60:1 Ratio, 0.875 Inch I.D, 2 Inch O.D, Cast Iron | AX6ZCA GR8520262.0029.2 RPM9212--4.263 hp5 102/125 hp-Single€6,003.20
GROVE GEAR GR8522534.39 Output Worm Gear Reducer | AX7LFA GR8522534.39--------€4,247.44
RFQ
GROVE GEAR GR8524133.00 Quill Input Worm Gear Reducer | AX7LFB GR8524133.0014 RPM19432 lbs.-in.--4.181 hp-1750 RPM-€5,801.17
RFQ
GROVE GEAR GR8524215.00 Quill Input Worm Gear Reducer | AX7MAW GR8524215.00--------€5,801.17
RFQ
GROVE GEAR GR8520600.39 Output Worm Gear Reducer, 5.25 Inch Distance, 8941 Inch/lbs Torque, Cast Iron | AX7WLM GR-HMQ852-15-H1-180-39 GR8520600.39116 RPM8941 lbs.-in.2.438"---1750 RPM1€4,320.50
GROVE GEAR GR8524213.00 Quill Input Worm Gear Reducer | AX7YZH GR8524213.0014 RPM19432 lbs.-in.--4.181 hp-1750 RPM-€5,801.17
RFQ
GROVE GEAR GR8520511.47 Solid Input Shaft Worm Gear Reducer, Hollow Bore Output Worm Gear | AX8CYV GR-H852-80-H1-47 GR8520511.4721 RPM5478 lbs.-in.2 15/16"1 1/4"--1750 RPM1€3,857.40
