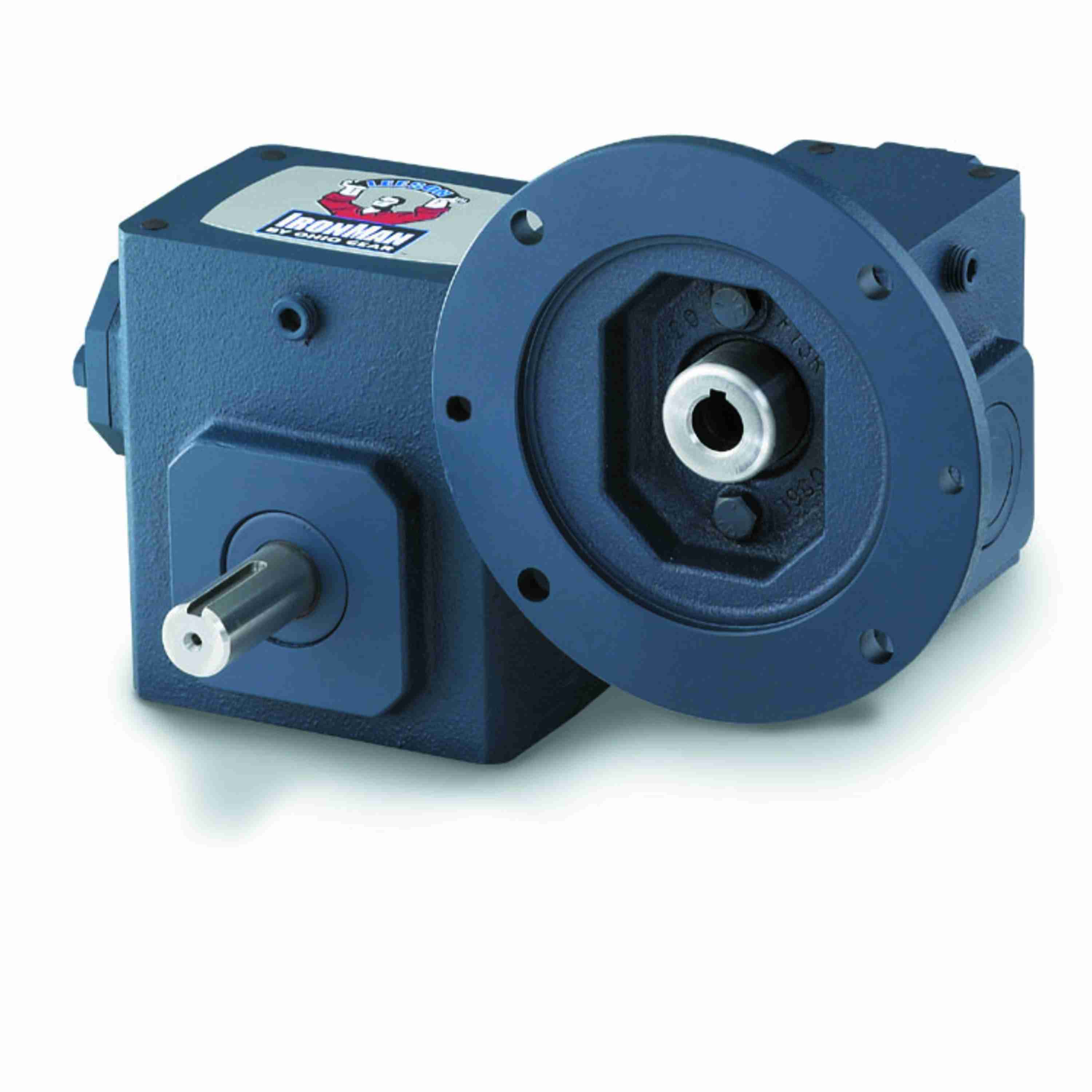

GROVE GEAR GR8420249.00 GR-BMQ842-50-D-56 Worm Reducer, 50:1 Ratio, 0.625 Inch I.D, 1.875 Inch O.D, Cast Iron
Get it by Tuesday, Aug 18
€4,104.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 6.13 |
| Aj | 5.88 |
| B | 10.25 |
| Be | 0.38" |
| Bf | 0.41 |
| C | 11.38" |
| Case Material | Cast Iron |
| Center Distance | 4 1/4" |
| D | 4.44 |
| Frame Size | 56C |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Hp | 4.39 hp |
| I | 6.1" |
| Input Bore (c Face) | 0.625 |
| Input Bore Size | 5/8" |
| Input Flange | 56C |
| Input Hp | 4.389 hp |
| Input Hp @ 1750 Rpm | 4.389 hp |
| Input Style | C-Face Quill |
| J | 8 1/2" |
| K | 4 1/4" |
| Lq | 6.45" |
| Material | Cast Iron |
| Max. Hp | 4 39/100 hp |
| Max. Input Hp | 4 389/1000 hp |
| Max. Ohl (output Shaft) | 3730 |
| Max. Overhung Load | 3730 lbs. |
| Max. Thrust Load (output Shaft) | 2533 |
| N | 8.12 |
| No. Of Gear Reductions | Single |
| O | 4 1/2" |
| Output Hp | 3.426 hp |
| Output Shaft | Solid Shaft |
| Output Shaft Dia. | 1 7/8" |
| Output Shaft Direction | Double |
| Output Shaft Thrust Rating | 2533 |
| Output Shaft Type | Double Shaft |
| Output Speed | 35 RPM |
| Output Style | D |
| Output Type | Double Shaft |
| Overhung Load Rating | 3730 lbs. |
| Paint/coating | Blue |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Ratio | 50:1 |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Rq | 6 1/25" |
| Series | GR Series - Ironman Worm Gear Reducers |
| Service Factor 1 | 2.195 SF @ 2 HP |
| Service Factor 2 | 2.93 SF @ 1 1/2 HP |
| Service Factor 3 | 4.39 SF @ 1 HP |
| Shaft Seal Material | Viton |
| Speed | 35 RPM |
| T | 1.875 |
| Tap Depth | 1" |
| Torque | 6170 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 65.7 |
| Ship height (cm) | 44.45 |
| Ship length (cm) | 101.6 |
| Ship width (cm) | 93.98 |
Product Variants
| Product | Model | Output Torque | Output Speed | Output Dia. | Input Dia. | Output Hp | Max. Input Hp | Gear Type | Output Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GR8420315.00 | 5042 lbs.-in. | 175 RPM | 1 7/8" | 1 1/8" | 14 hp | 14 93/100 hp | Worm | Solid Shaft | €4,104.01 | |
 |
GR8420541.23 | 6092 lbs.-in. | 87 RPM | 1.438" | 1 1/4" | 8.458 hp | 9.462 hp | Worm | Hollow Bore | €5,089.13 | |
|
GR8424034.00 | - | - | - | - | - | - | - | - | €4,193.11 | RFQ
|
|
GR8425888.00 | - | - | - | - | - | - | - | - | €2,412.37 | RFQ
|
 |
GR8420605.23 | 6170 lbs.-in. | 35 RPM | 1.438" | 1 1/8" | 3.426 hp | 4.389 hp | Worm | Hollow Bore | €5,089.13 | |
|
GR8420181.00 | 3209 lbs.-in. | 350 RPM | 1 7/8" | 1 1/4" | - | - | Worm | Solid Shaft | €2,216.39 | |
|
GR8424151.00 | - | - | - | - | - | - | - | - | €4,193.11 | RFQ
|
