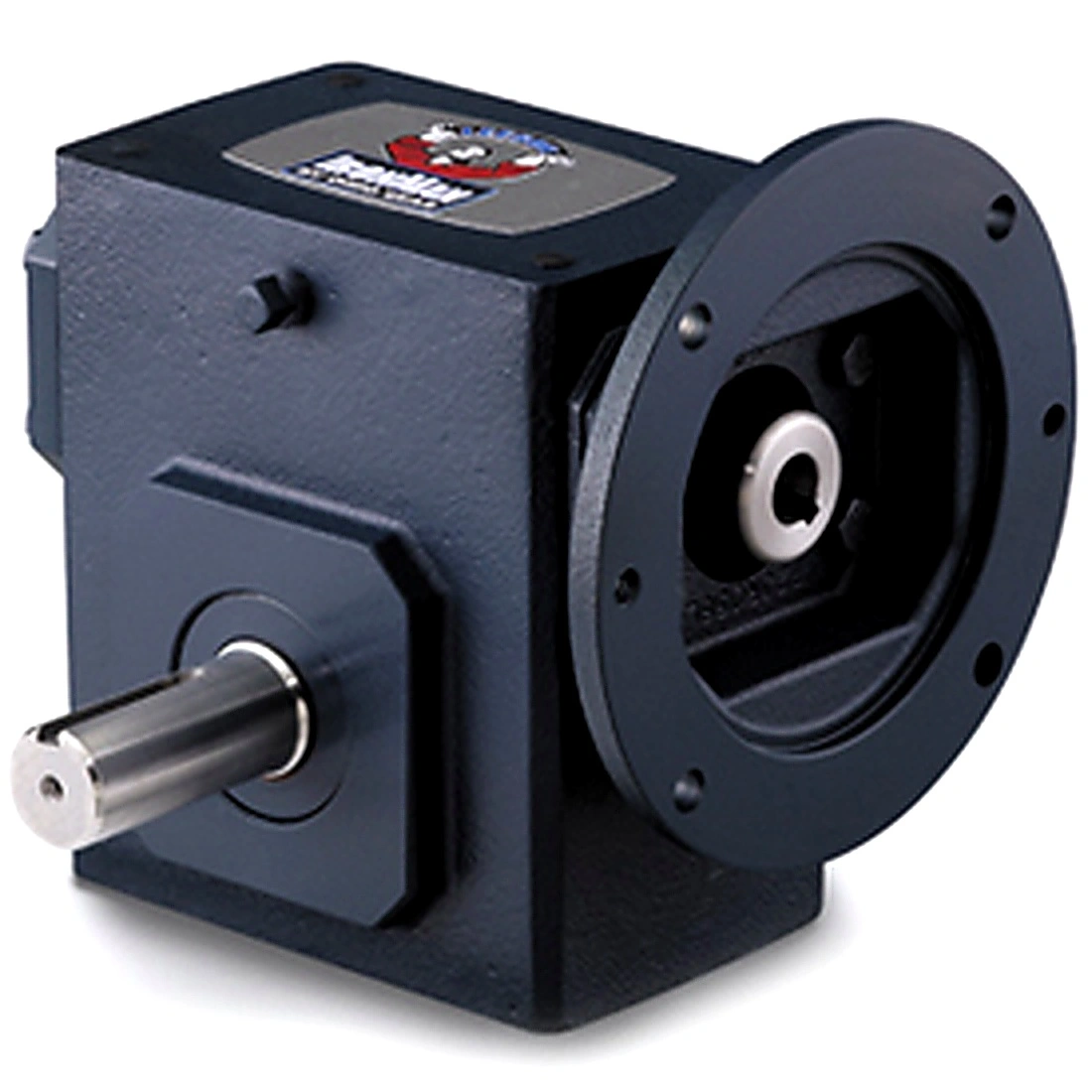

GROVE GEAR GR8420228.00 Worm Reducer, 100:1 Ratio, 0.625 Inch I.D, 1.875 Inch O.D, Cast Iron | AX6PHY GR-BMQ842-100-L-56

GROVE GEAR GR8420228.00 GR-BMQ842-100-L-56 Right Angle Gear Reducer, 100 to 1 Reduction Ratio, 17 RPM Output, 2852 lb-in Torque, H1 Left Output

Item: AX6PHYModel: GR8420228.00Cross Ref: GR-BMQ842-100-L-56
Check Availability
In Stock
Ratio

Get it by Wednesday, Aug 26

€3,898.41 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
Application General Purpose
Case Material Cast Iron
Center Distance 4 1/4"
Frame 56
Frame Size 56C
Gear Drive Reductions Single
Gear Type Worm
Gearbox Type Worm
Gross Weight 0 lbs.
Hp 1 1/5 hp
Input Bore (c Face) 0.625
Input Bore Size 5/8"
Input Dia. 5/8"
Input Flange 56C
Input Hp 1.201 hp
Input Hp @ 1750 Rpm 1.201 hp
Input Style C-Face Quill
Material Cast Iron
Max. Hp 1 1/5 hp
Max. Input Hp 1 201/1000 hp
Max. Ohl (output Shaft) 3750
Max. Overhung Load 3750 lbs.
Max. Thrust Load (output Shaft) 2533
No. Of Gear Reductions Single
Output Left
Output Dia. 1 7/8"
Output Shaft Dia 1.875
Output Shaft Dia. 1 7/8"
Output Shaft Direction Left
Output Shaft Orientation L
Output Shaft Type Left Handed Shaft
Output Speed 17.5 RPM
Output Style L
Output Torque 3527
Output Type Left Shaft
Paint/coating Blue
Product Datasheet grove-gear-gr8130084-00.pdf
Product Line GR Series - Ironman Worm Gear Reducers
Ratio 100:1
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reducer Type Single
Service Factor 1 1.2 SF @ 1 HP
Service Factor 2 1.6 SF @ 3/4 HP
Service Factor 3 2.4 SF @ 1/2 HP
Shaft Seal Material Viton
Speed 17 RPM
Torque 2852 lbs.-in.
Torque (lb-in)@1750rpm 2852

Shipping Info:

Ship weight (kg) 65.7
Ship height (cm)44.45
Ship length (cm)101.6
Ship width (cm)93.98

Documentation:

Datasheet

Product Variants

ProductModelMax. Input HpOutput HpOutput SpeedOutput TorqueInput Dia.Input Bore SizeInput Hp @ 1750 RpmSpeedPrice
GROVE GEAR GR8420299.00 Worm Reducer, 80:1 Ratio, 1.125 Inch I.D, 1.875 Inch O.D, Cast Iron | AX7KJQ GR-BMQ842-80-L-180 GR8420299.001 19/25 hp1.257 hp21 RPM3620 lbs.-in.1 1/8"1 1/8"1 19/25 hp21 RPM€3,245.77
GROVE GEAR GR8420331.00 Worm Reducer, 30:1 Ratio, 1.375 Inch I.D, 1.875 Inch O.D, Cast Iron | AX7MAU GR-BMQ842-30-L-210 GR8420331.006.481 hp5.517 hp58 RPM5960 lbs.-in.1 3/8"1 3/8"6.481 hp58 RPM€3,953.31
GROVE GEAR GR8420333.00 Worm Reducer, 50:1 Ratio, 1.375 Inch I.D, 1.875 Inch O.D, Cast Iron | AX7XLC GR-BMQ842-50-L-210 GR8420333.004.389 hp3.426 hp35 RPM6170 lbs.-in.1 3/8"1 3/8"4.389 hp35 RPM€3,953.31
GROVE GEAR GR8420293.00 Worm Reducer, 20:1 Ratio, 1.125 Inch I.D, 1.875 Inch O.D, Cast Iron | AX8MUX GR-BMQ842-20-L-180 GR8420293.009 231/500 hp8.458 hp87.5 RPM7447-1 1/8"9.462 hp87 RPM€3,245.77
GROVE GEAR GR8420295.00 Worm Reducer, 30:1 Ratio, 1.125 Inch I.D, 1.875 Inch O.D, Cast Iron | AX9MUC GR-BMQ842-30-L-180 GR8420295.006.481 hp5.517 hp58.3 RPM48821 1/8"1 1/8"6.481 hp58 RPM€3,245.77
GROVE GEAR GR8420290.00 Worm Reducer, 7.5:1 Ratio, 1.125 Inch I.D, 1.875 Inch O.D, Cast Iron | AY2UQG GR-BMQ842-7.5-L-180 GR8420290.0016 27/100 hp15 9/25 hp233 RPM4148 lbs.-in.1 1/8"1 1/8"16 27/100 hp233 RPM€3,953.31
GROVE GEAR GR8420297.00 Worm Reducer, 50:1 Ratio, 1.125 Inch I.D, 1.875 Inch O.D, Cast Iron | AY2UQH GR-BMQ842-50-L-180 GR8420297.004.389 hp3.426 hp35 RPM50781 1/8"1 1/8"4.389 hp35 RPM€3,560.90
