GROVE GEAR GR8420197.00 Worm Reducer, 20:1 Ratio, 1.25 Inch I.D, 1.875 Inch O.D, Cast Iron | AY4FQE GR-BM842-20-R-250

GROVE GEAR GR8420197.00 GR-BM842-20-R-250 Worm Reducer, 20:1 Ratio, 1.25 Inch I.D, 1.875 Inch O.D, Cast Iron

Item: AY4FQEModel: GR8420197.00Cross Ref: GR-BM842-20-R-250
Check Availability
In Stock
Ratio

Get it by Tuesday, Aug 18

€3,953.31 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
A 6.13
Aj 7.25
Ak 8.5
Assembly BM-R
B 10.25
Be1 1/2"
Bf 0.53
C 11.38"
Center Distance 4 1/4"
D 4.44
Frame 250TC
Gear Drive Reductions Single
Gear Type Worm
Gearbox Type Worm
Gross Weight 0 lbs.
Housing Material Cast Iron
I 6.1"
Input Bore (c Face) 1 5/8"
Input Bore Size 1 5/8"
Input Dia. 1 1/4"
Input Hp 9.462 hp
Input Hp @ 1750 Rpm 9.462 hp
Input Keyway Size 1/4" x 2.5"
Input Speed 1750 RPM
Input Style Flexible Coupling Input
Input Type C-Face Coupled
J 8 1/2"
K 4 1/4"
L1 13.46"
Material Cast Iron
Max. Input Hp 9 231/500 hp , 9.462 hp
Max. Ohl (output Shaft) 3320
Max. Thrust Load (output Shaft) 2533
Mounting Type Base
N 8.12
No. Of Gear Reductions 1
O 4 1/2"
Output Right
Output Dia. 1 7/8"
Output Hp 8.458 hp
Output Key Size 1/2" x 3.06"
Output Shaft Solid Shaft
Output Shaft Assembly Code R
Output Shaft Dia. 1 7/8"
Output Shaft Direction Right
Output Shaft Orientation R
Output Shaft Thrust Rating 2533
Output Shaft Type Right Handed Shaft
Output Speed 87 RPM
Output Style R
Output Torque 6092 lbs.-in.
Output Type Solid Shaft
Overhung Load 3320 lbs.
Overhung Load Rating 3320 lbs.
Paint/coating Blue
Product Line GR Series - Ironman Worm Gear Reducers
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reducer Type Single
Reduction Single
Reduction Type Single
Series GR Series
Series Style GR-BM-R
Service Factor 1
Shaft Seal Material Viton
Speed 87 RPM
T 1.875
Tap Depth 1"
Tap Size 5/8"-11
Thread Type Coarse
U 1 1/4"

Shipping Info:

Ship weight (kg) 69.3
Ship height (cm)44.45
Ship length (cm)101.6
Ship width (cm)93.98

Product Variants

ProductModelOutput HpOutput SpeedOutput TorqueMax. Input HpInput Hp @ 1750 RpmFrameInput Bore (c Face)Output Shaft Thrust RatingPrice
GROVE GEAR GR8420127.00 Worm Reducer, 30:1 Ratio, 1.25 Inch I.D, 1.875 Inch O.D, Cast Iron | AX6UTN GR-BM842-30-R-180 GR8420127.005.517 hp58 RPM5960 lbs.-in.6.481 hp6.481 hp180TC1 1/8"2533€3,953.31
GROVE GEAR GR8420060.00 Worm Reducer, 100:1 Ratio, 1.25 Inch I.D, 1.875 Inch O.D, Cast Iron | AY3TDB GR-BM842-100-R-56 GR8420060.0099/125 hp17 RPM2852 lbs.-in.1.201 hp1.201 hp56C5/8"2533€3,953.31
GROVE GEAR GR8420059.00 Worm Reducer, 80:1 Ratio, 1.25 Inch I.D, 1.875 Inch O.D, Cast Iron | AY3XXY GR-BM842-80-R-56 GR8420059.001.257 hp21 RPM3620 lbs.-in.1 19/25 hp1 19/25 hp56C5/8"2533€3,953.31
GROVE GEAR GR8420121.00 Worm Reducer, 5:1 Ratio, 1.25 Inch I.D, 1.875 Inch O.D, Cast Iron | AY4ALD GR-BM842-5-R-180 GR8420121.0017 1/4 hp350 RPM3209 lbs.-in.18 2/25 hp18 2/25 hp180TC1 1/8"1445€3,953.31
GROVE GEAR GR8420057.00 Worm Reducer, 50:1 Ratio, 1.25 Inch I.D, 1.875 Inch O.D, Cast Iron | AY4THQ GR-BM842-50-R-56 GR8420057.003.426 hp35 RPM6170 lbs.-in.4.389 hp4.389 hp56C5/8"2533€3,953.31

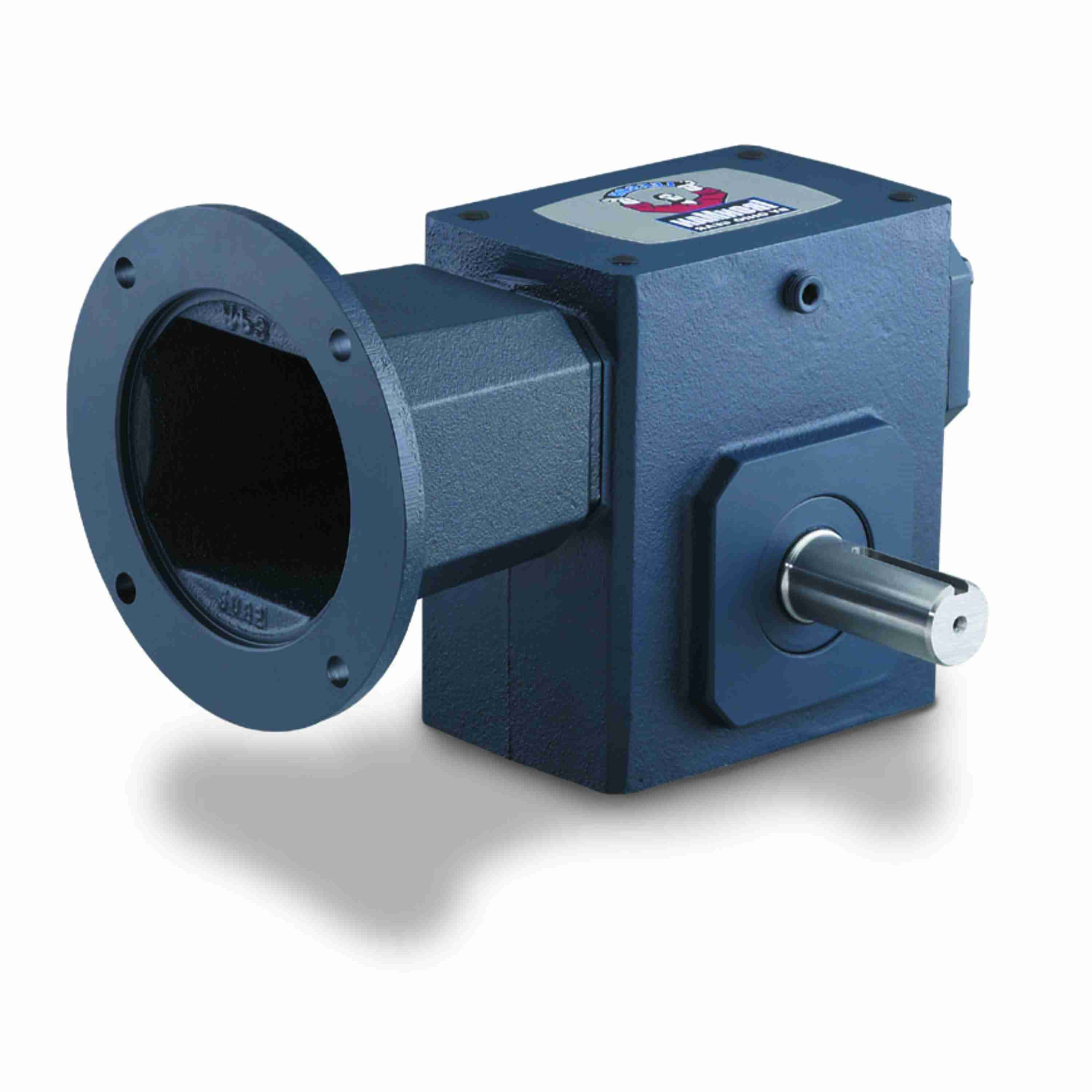

GROVE GEAR GR8420131.00 Worm Reducer, 80:1 Ratio, 1.25 Inch I.D, 1.875 Inch O.D, Cast Iron | AY6CGD GR-BM842-80-R-180 GR8420131.001.257 hp21 RPM3620 lbs.-in.1 19/25 hp1 19/25 hp180TC1 1/8"2533€2,216.39
GROVE GEAR GR8420124.00 Worm Reducer, 15:1 Ratio, 1.25 Inch I.D, 1.875 Inch O.D, Cast Iron | AY6TWD GR-BM842-15-R-180 GR8420124.0010 1/5 hp116 RPM5508 lbs.-in.11 13/100 hp11 13/100 hp180TC1 1/8"2319€3,953.31
