GROVE GEAR GR8320522.23 Worm Reducer, 40:1 Ratio, 0.875 Inch I.D, 1.438 Inch O.D, Cast Iron | AY6ARL

GROVE GEAR GR8320522.23 GR-HM832-40-H1-140-23 Right Angle Gear Reducer, 40 to 1 Reduction Ratio, 43 RPM Output, 3303 lb-in Torque, Cast Iron

Item: AY6ARLModel: GR8320522.23Cross Ref: GR-HM832-40-H1-140-23
Check Availability
In Stock
Ratio

Get it by Friday, Aug 21

€3,476.45 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
Aa 10.88
Ab 8.5
Ae1 0.54
Ae2 0.29
Ag 7.88
Aj 5.88
Application General Purpose
Assembly HM-H1
B 8.75
Be 0.38"
Bf 0.41
Bore Code 23
C 9.38"
Center Distance 3 1/4"
Family Name Cast Iron Housing Material Worm Gear Reducers
Frame 140TC
Gear Drive Reductions Single
Gear Type Worm
Gearbox Type Worm
Gross Weight 0 lbs.
H 0.53"
Housing Material Cast Iron
I 5.02"
Input Bore Size 7/8"
Input Dia. 7/8"
Input Hp 2.926 hp
Input Hp @ 1750 Rpm 2.926 hp
Input Keyway Size 3/16" x 1.63"
Input Keyway Size (c Face) 3/16" x 3/32"
Input Speed 1750 RPM
Input Style Flexible Coupling Input
Input Type C-Face Coupled
J 7 1/2"
Lm 9.01
Material Cast Iron
Max. Input Hp 2 463/500 hp , 2.926 hp
Max. Ohl (output Shaft) 2275
Max. Thrust Load (output Shaft) 2574
Mounting Type Shaft Mount
No. Of Gear Reductions 1
Output Hollow
Output Dia. 1.438"
Output Hollow Shaft Dia. 1.438"
Output Hp 2.293 hp
Output Key Size 3/8" x 3"
Output Shaft Hollow Bore
Output Shaft Assembly Code H1
Output Shaft Direction H1
Output Shaft Orientation H1
Output Shaft Thrust Rating 2574
Output Shaft Type Hollow Shaft
Output Speed 43 RPM
Output Style H1
Output Torque 3303 lbs.-in.
Output Type Hollow Bore
Paint/coating Blue
Product Line GR Series - Ironman Worm Gear Reducers
R 22/25"
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reducer Type Single
Reduction Single
Reduction Type Single
Series GR Series
Series Style GR-HM-H1
Series Type Cast Iron 800 Worm Gear Reducers
Service Factor 1
Shaft Seal Material Viton
Speed 43 RPM
T 1.438
Torque (lb-in)@1750rpm 3303
U 7/8"
V 2.756"

Shipping Info:

Ship weight (kg) 35.1
Ship height (cm)38.1
Ship length (cm)49.23
Ship width (cm)38.43

Product Variants

ProductModelOutput TorqueOutput Dia.Output SpeedInput Dia.Output HpMax. Input HpInput StyleApplicationPrice
GROVE GEAR GR8322518.31 Output Worm Gear Reducer | AX8ANN GR8322518.31------3-Piece Coupled-€3,682.80
RFQ
GROVE GEAR GR8320585.20 Quill Input Hollow Bore Output Worm Gear Reducer, 3.25 Inch Distance, 2033 Inch/lbs Torque, Cast Iron | AX8CYU GR-HMQ832-5-H1-56-20 GR8320585.202033 lbs.-in.1 1/4"350 RPM---C Face QuillGeneral Purpose€1,910.44
GROVE GEAR GR8320505.20 Solid Input Shaft Worm Gear Reducer, Hollow Bore Output Worm Gear | AX8LVV GR-H832-30-H1-20 GR8320505.203226 lbs.-in.1 1/4"58 RPM7/8"--Solid ShaftGeneral Purpose€1,708.36
GROVE GEAR GR8320585.31 Worm Reducer, 5:1 Ratio, 0.625 Inch I.D, 1.938 Inch O.D, Cast Iron | AX8NVM GR8320585.31-1.938"-5/8"11.29 hp11 23/25 hpC Face QuillGeneral Purpose€3,476.45

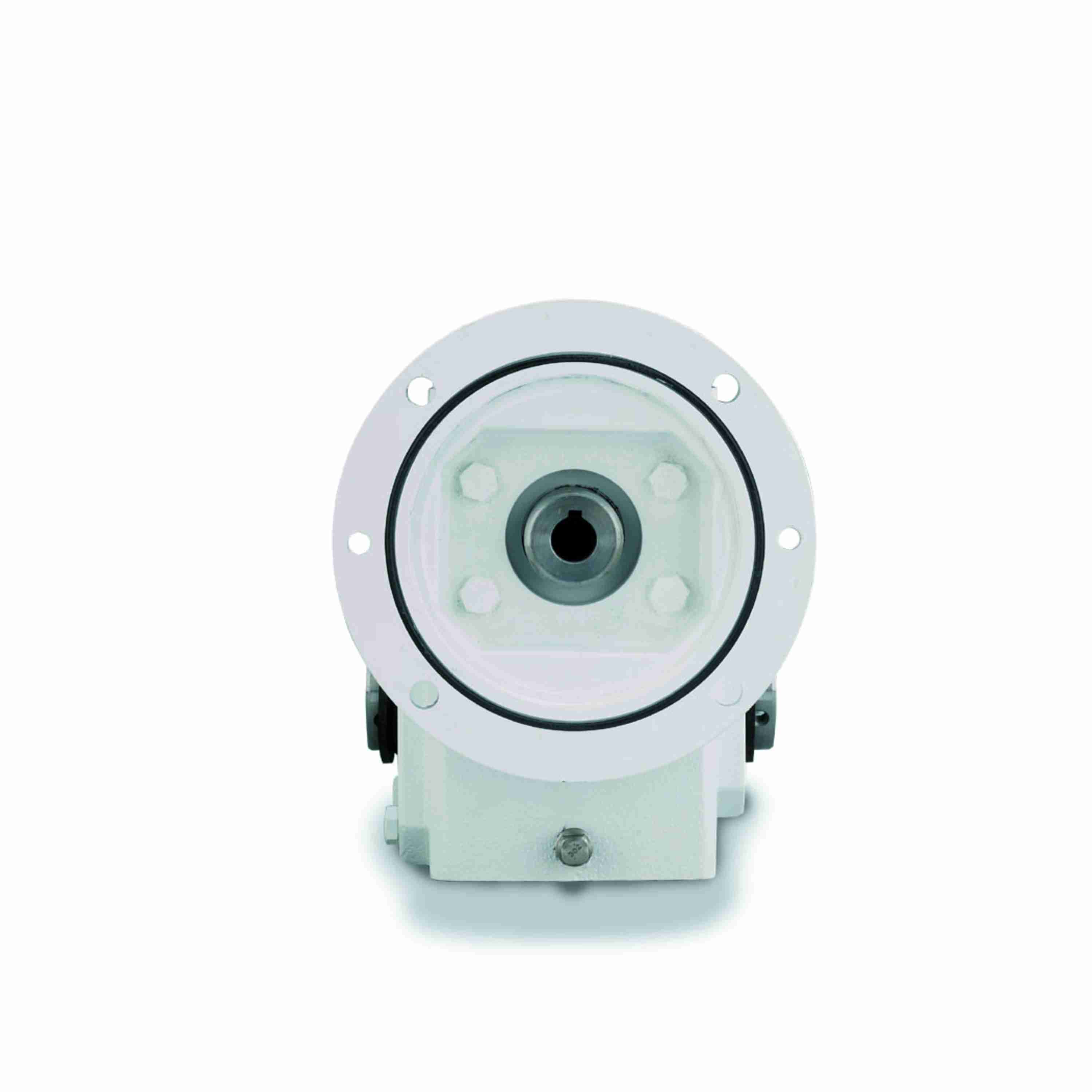

GROVE GEAR GR8323511.20 Worm Reducer, 80:1 Ratio, 0.625 Inch I.D, 1.25 Inch O.D, Cast Iron | AX8PTJ GR8323511.202000 lbs.-in.1 1/4"21.9 RPM5/8"0.695 hp1 3/100 hpC Face QuillEpoxy Washdown€5,215.65

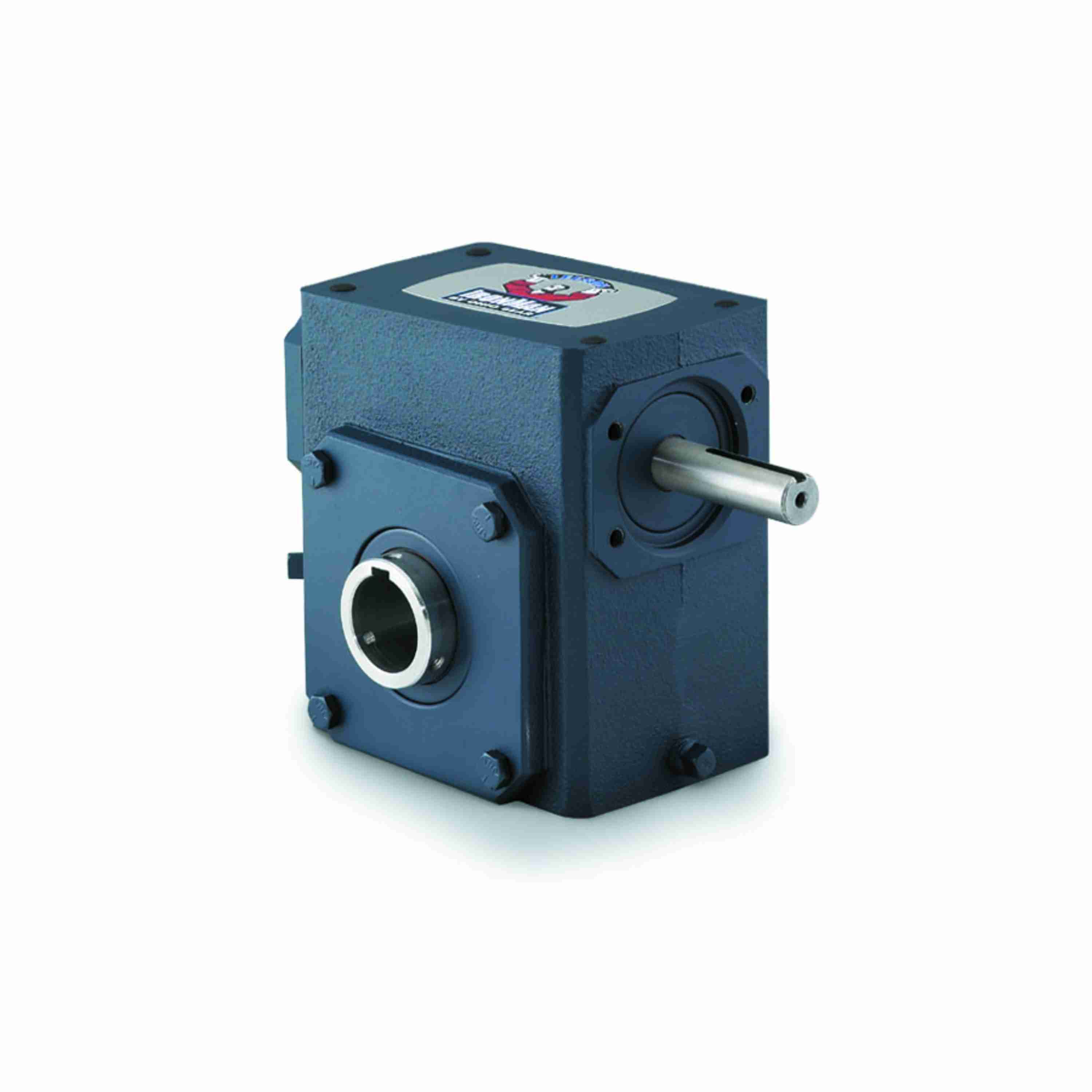

GROVE GEAR GR8320505.24 Worm Reducer, 30:1 Ratio, 0.875 Inch I.D, 1.5 Inch O.D, Cast Iron | AX8RNH GR8320505.243226 lbs.-in.1 1/2"58 RPM7/8"2.986 hp3.619 hpSolid ShaftGeneral Purpose€3,152.99
GROVE GEAR GR8320506.28 Worm Reducer, 40:1 Ratio, 0.875 Inch I.D, 1.75 Inch O.D, Cast Iron | AX8TMC GR8320506.283303 lbs.-in.1 3/4"43 RPM7/8"2.293 hp2.926 hpSolid ShaftGeneral Purpose€3,152.99
