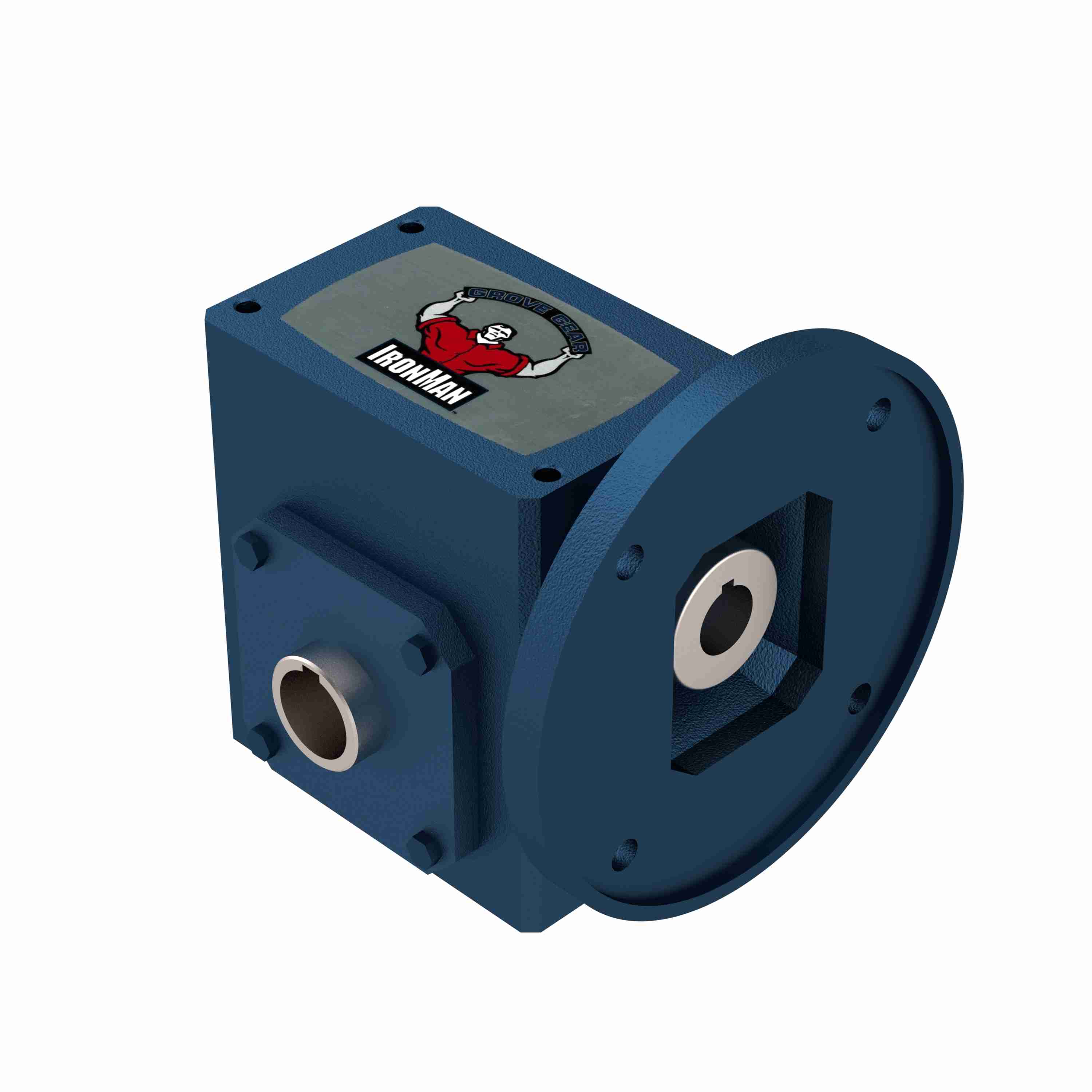

GROVE GEAR GR8300589.23 GR-HMQ830-20-H1-180-23 Right Angle Gear Reducer, 20 to 1 Reduction Ratio, 87 RPM Output, 2454 lb-in Torque, Cast Iron
Get it by Tuesday, Jul 14
€2,343.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Aa | 10.63 |
| Ab | 8.25 |
| Ae2 | 0.36 |
| Ag | 7.5 |
| Aj | 7.25 |
| Ak | 8.5 |
| Application | General Purpose |
| Assembly | HMQ-H1 |
| B | 8.12 |
| Be1 | 1/2" |
| Bf | 0.53 |
| Bore Code | 23 |
| C | 8 22/25" |
| Center Distance | 3" |
| D | 3.25 |
| Frame | 180TC |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| H | 0.53" |
| Housing Material | Cast Iron |
| I | 4 21/25" |
| Input Bore (c Face) | 1 1/8" |
| Input Bore Size | 1 1/8" |
| Input Dia. | 1 1/8" |
| Input Hp | 3.947 hp |
| Input Hp @ 1750 Rpm | 3.947 hp |
| Input Keyway Size | 3/16" x 1.63" |
| Input Keyway Size (c Face) | 1/4" x 1/8" |
| Input Quill Dia. | 1 1/8" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Input Type | C-Face Quilled |
| J | 7" |
| Key Way Size | 1/4" x 1/8" |
| Length | 19.38 |
| Lq1 | 6.15" |
| M | 2.38 |
| Material | Cast Iron |
| Max. Input Hp | 3.947 hp |
| Max. Ohl (output Shaft) | 2170 |
| Max. Thrust Load (output Shaft) | 2574 |
| Motor Hp | 3 hp |
| Mounting Type | Shaft Mount |
| No. Of Gear Reductions | 1 |
| Nominal Motor Hp Rating To Hp @ 1750 Rpm | 3 hp |
| Output | Hollow |
| Output Dia. | 1.438" |
| Output Hollow Shaft Dia. | 1.438" |
| Output Hp | 3.407 hp |
| Output Key Size | 3/8" x 3" |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H1 |
| Output Shaft Direction | H1 |
| Output Shaft Orientation | H1 |
| Output Shaft Thrust Rating | 2574 |
| Output Shaft Type | Hollow Shaft |
| Output Speed | 87 RPM |
| Output Style | H1 |
| Output Torque | 2454 lbs.-in. |
| Output Type | Hollow Bore |
| Paint/coating | Blue |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| R | 22/25" |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Reduction Type | Single |
| Rq | 5.63" |
| Series | GR Series |
| Series Style | GR-HMQ-H1 |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 87 RPM |
| T | 1.438 |
| Torque (lb-in)@1750rpm | 2454 |
| U | 7/8" |
| V | 2.756" |
| Width | 15.11 |
Shipping Info:
| Ship weight (kg) | 31.05 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 49.23 |
| Ship width (cm) | 38.38 |
Product Variants
| Model | max. input hp | mounting type | output torque | gear ratio | gear type | series | center distance | input style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GR8300565.23 | 3.947 hp | Shaft Mount | 2454 lbs.-in. | - | Worm | GR Series | 3" | C Face Quill | €2,854.47 | |
| GR8300591.31 | 2.879 hp | Shaft | - | 30:1 | - | - | 3" | C Face Quill | €2,854.47 | |
| GR8300594.31 | 1.637 hp | Shaft Mount | 2413 lbs.-in. | - | Worm | GR Series | 3" | C Face Quill | €2,854.47 | |
| GR8300563.24 | 6.151 hp | Shaft Mount | 2037 lbs.-in. | - | Worm | GR Series | 3" | C Face Quill | €2,854.47 | |
| GR8300570.32 | 1.637 hp | Shaft Mount | 2413 lbs.-in. | - | Worm | GR Series | 3" | C Face Quill | €2,814.81 | |
| GR8300586.31 | 6.879 hp | Shaft Mount | 1734 lbs.-in. | - | Worm | GR Series | 3" | C Face Quill | €2,854.47 | |
| GR8300597.28 | 9.093 hp | Shaft Mount | 1544 lbs.-in. | - | Worm | GR Series | 3" | C Face Quill | €2,854.47 |
