GROVE GEAR GR8300258.00 Worm Reducer, 25:1 Ratio, 1.125 Inch I.D, 1.25 Inch O.D, Cast Iron | AY4WFX GR-BMQ830-25-L-180

GROVE GEAR GR8300258.00 GR-BMQ830-25-L-180 Right Angle Gear Reducer, 25 to 1 Reduction Ratio, 70 RPM Output, 2527 lb-in Torque, H1 Left Output

Item: AY4WFXModel: GR8300258.00Cross Ref: GR-BMQ830-25-L-180
Check Availability
In Stock
Ratio

Get it by Wednesday, Aug 26

€2,187.77 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
A 5.25
Aj 7.25
Ak 8.5
Application General Purpose
B 8.12
Be1 1/2"
Bf 0.53
C 8 22/25"
Case Material Cast Iron
Center Distance 3"
D 3.25
Frame 180
Frame Size 180TC
Gear Drive Reductions Single
Gear Type Worm
Gearbox Type Worm
Gross Weight 0 lbs.
Hp 3 9/25 hp
I 4 21/25"
Input Bore (c Face) 1.125
Input Bore Size 1 1/8"
Input Quill Dia. 1 1/8"
Input Style C-Face Quill
J 7"
K 3 1/2"
Lq1 6.15"
Material Cast Iron
Max. Hp 3 9/25 hp
Max. Input Hp 3 71/200 hp
Max. Ohl (output Shaft) 2170
Max. Overhung Load 2170 lbs.
Max. Thrust Load (output Shaft) 2574
N 6.75
No. Of Gear Reductions Single
O 3 3/5"
Output Left
Output Hp 2.807 hp
Output Shaft Solid Shaft
Output Shaft Dia. 1 1/4"
Output Shaft Direction Left
Output Shaft Orientation L
Output Shaft Thrust Rating 2574
Output Shaft Type Left Handed Shaft
Output Speed 70 RPM
Output Style L
Output Torque 4238
Output Type Left Shaft
Overhung Load Rating 2170 lbs.
Paint/coating Blue
Product Line GR Series - Ironman Worm Gear Reducers
Ratio 25:1
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reducer Type Single
Reduction Single
Rq 5.63"
Series Type Cast Iron 800 Worm Gear Reducers
Service Factor 1 1.12 SF @ 3 HP
Shaft Seal Material Viton
Speed 70 RPM
Tap Depth 22/25"
Torque 2527 lbs.-in.
Torque (lb-in)@1750rpm 2527

Shipping Info:

Ship weight (kg) 30.6
Ship height (cm)38.1
Ship length (cm)49.23
Ship width (cm)38.43

Product Variants

ProductModelOutput SpeedOutput HpMax. Input HpOutput TorqueInput Dia.Input StyleNo. Of Gear ReductionsInput Bore (c Face)Price

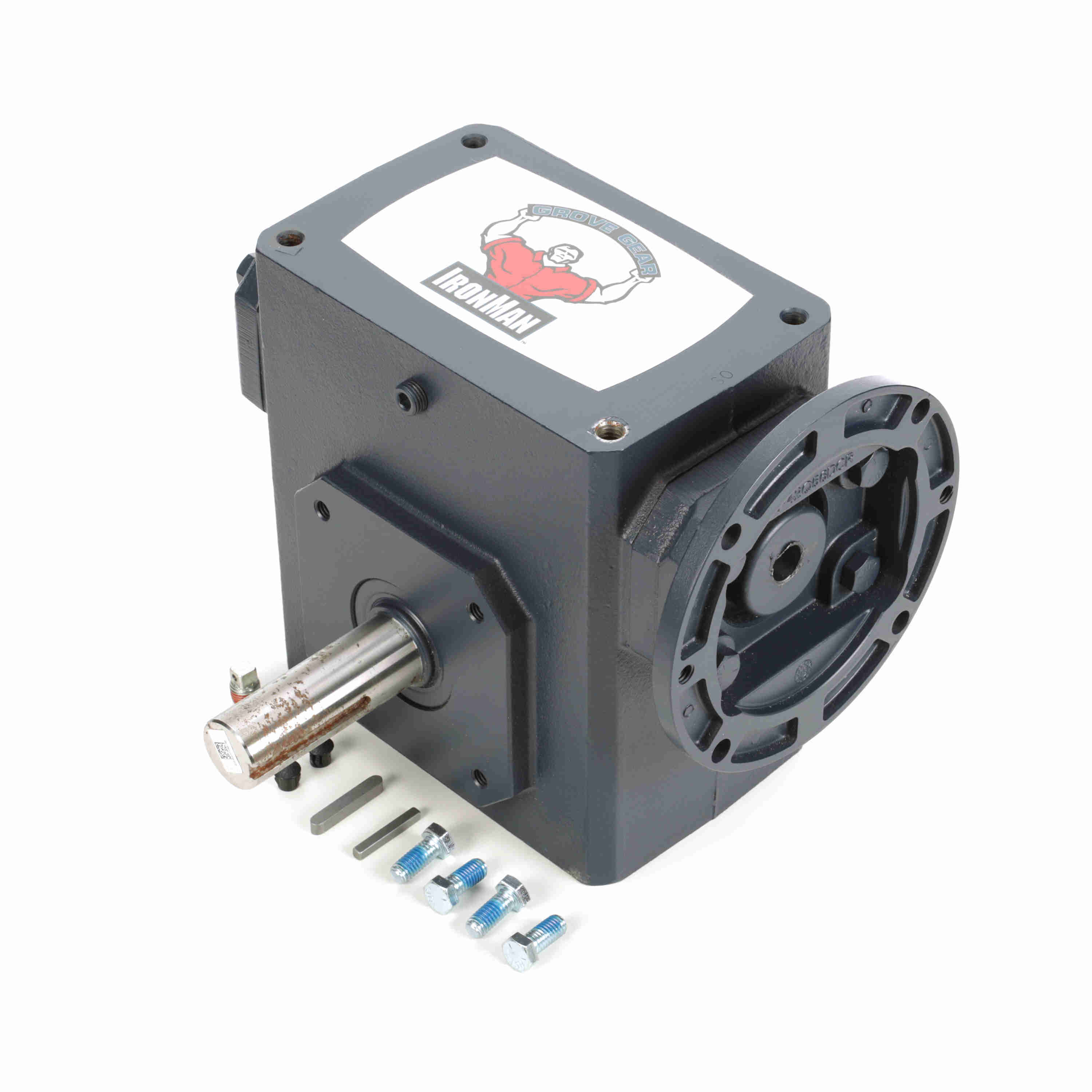

GROVE GEAR GR8300190.00 Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 1.25 Inch O.D, Cast Iron | AX7BHK GR-BMQ830-60-L-56 GR8300190.0029.2 RPM1.117 hp1 637/1000 hp2854-C-Face QuillSingle0.625€1,796.20

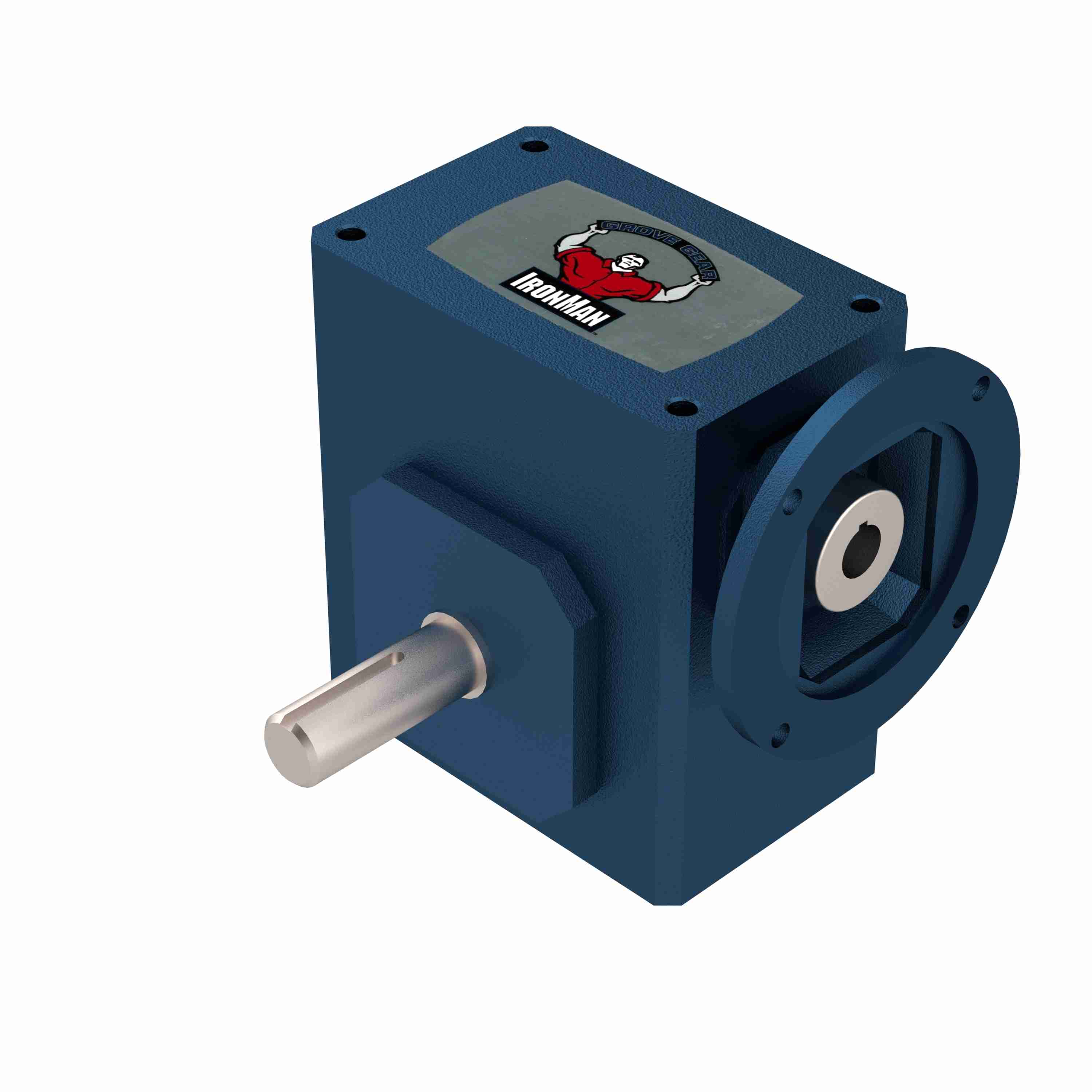

GROVE GEAR GR8300223.00 Worm Reducer, 30:1 Ratio, 0.875 Inch I.D, 1.25 Inch O.D, Cast Iron | AX7KJN GR-BMQ830-30-L-140 GR8300223.0058.3 RPM-2 879/1000 hp2108-C-Face QuillSingle0.875€1,796.20
GROVE GEAR GR8300189.00 Worm Reducer, 50:1 Ratio, 0.625 Inch I.D, 1.25 Inch O.D, Right Angle Cast Iron | AX7RBT GR-BMQ830-50-L-56 GR8300189.0035 RPM1.383 hp-2084-C-Face QuillSingle0.625€1,966.47
GROVE GEAR GR8300185.00 Worm Reducer, 20:1 Ratio, 0.625 Inch I.D, 1.25 Inch O.D, Cast Iron | AX7WLG GR-BMQ830-20-L-56 GR8300185.0087.5 RPM3.407 hp3 947/1000 hp--C-Face QuillSingle0.625€2,187.77
GROVE GEAR GR8300226.00 Worm Reducer, 60:1 Ratio, 0.875 Inch I.D, 1.25 Inch O.D, Cast Iron | AX7YZD GR-BMQ830-60-L-140 GR8300226.0029.2 RPM1.117 hp1 637/1000 hp4026-C-Face QuillSingle0.875€1,796.20
GROVE GEAR GR8300256.00 Worm Reducer, 15:1 Ratio, 1.125 Inch I.D, 1.25 Inch O.D, Cast Iron | AX8FZR GR-BMQ830-15-L-180 GR8300256.00116.7 RPM4.311 hp4.843 hp39491 1/8"C Face QuillSingle1.125€1,970.60
GROVE GEAR GR8300182.00 Worm Reducer, 7.5:1 Ratio, 0.625 Inch I.D, 1.25 Inch O.D, Cast Iron | AY2WMT GR-BMQ830-7.5-L-56 GR8300182.00233 RPM6.421 hp6.879 hp-5/8"C Face Quill15/8"€1,185.39
