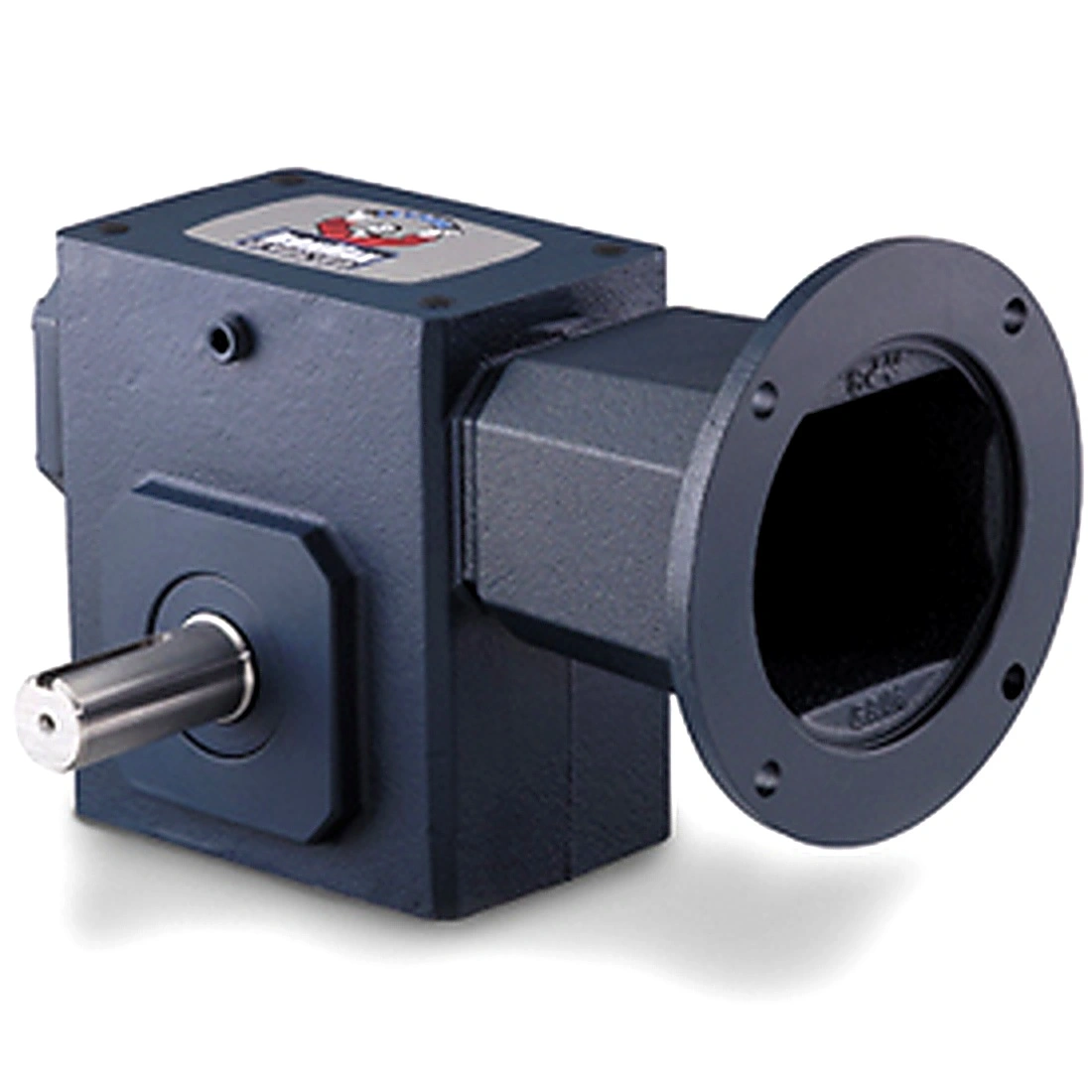

GROVE GEAR GR8300114.00 Reducer, 3-Piece Coupled Input Output Shaft Left Worm Gear | AX9VVC

GROVE GEAR GR8300114.00 GR-BM830-25-L-180 Right Angle Gear Reducer, 25 to 1 Ratio, 1.25 Inch Left Output Shaft, 182-4TC NEMA Input, 70-79 RPM Output

Item: AX9VVCModel: GR8300114.00Cross Ref: GR-BM830-25-L-180
Check Availability
In Stock

Get it by Tuesday, Aug 18

€1,185.39 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
A 5.25
Aj 7.25
Ak 8.5
Application General Purpose
Assembly BM-L
B 8.12
Bd 9
Be1 1/2"
Bf 0.53
C 8 22/25"
Center Distance 3"
D 3.25
F 4
Frame 180
G 2
Gear Type Worm
H-tap Size 7/16"-14
H-tap Type UNC
Housing Material Cast Iron
I 4 21/25"
Input Dia. 7/8"
Input Hp @ 1750 Rpm 3 71/200 hp
Input Keyway 3/16" x 1.63"
Input Keyway Size 3/16" x 1.63"
Input Speed 1750 , 1750 RPM
Input Style Flexible Coupling Input
J 7"
K 3 1/2"
L 6.57"
L1 9.82"
Max. Input Hp @ 1750 3 hp
Motor Frame Size 180
Mount Footprint 4 x 7
Mount Style BM
N 6.75
Nema Input Mounting 182-4TC
No. Of Gear Reductions 1 , Single
O 3 3/5"
Output Config H1 Left
Output Dia. 1 1/4"
Output Key 1/4 x 1.75
Output Key Size 1/4" x 1 3/4"
Output Shaft Solid Shaft
Output Shaft Assembly Code L
Output Shaft Dia. 1.25
Output Shaft Direction Left
Output Shaft Thrust Rating 2574
Output Speed 70 , 70 RPM
Output Speed @ 1750 Rpm Input 70 to 79
Output Torque 2527 lbs.-in.
Output Torque Rating (in-lb) 2527 lbs.-in.
Overhung Load Rating 2170 lbs.
Product Line GR Series - Ironman Worm Gear Reducers
Product Type Right Angle
Ratio 251
Reducer Worm - Right Angle
Reduction Ratio 25
Series GR , GR Series
Series Code Gr
Series Size 830
Service Factor 1
Shaft Center Distance 3
Shaft Center Height 3.25
Shaft Seal Material Viton
T 1.25
Tap Depth 22/25"
Tap Size 7/16"-14
Thread Type Coarse
Torque (lb-in)@1750rpm 2527 lbs.-in.
U 7/8"

Shipping Info:

Ship weight (kg) 31.05
Ship height (cm)20.32
Ship length (cm)30.48
Ship width (cm)25.4

Product Variants

ProductModelOutput SpeedOutput TorqueOutput Dia.Input Dia.Output HpMax. Input HpApplicationNo. Of Gear ReductionsPrice
GROVE GEAR GR8300517.31 Output Worm Gear Reducer, 3.00 Inch Distance, 2454 Inch/lbs Torque, Cast Iron | AX3XTZ GR-HM830-20-H1-56-31 GR8300517.3187 RPM2454 lbs.-in.1.938"7/8"--General Purpose1€1,588.55
GROVE GEAR GR8300123.00 Worm Reducer, 10:1 Ratio, 0.875 Inch I.D, 1.25 Inch O.D, Cast Iron | AX4ETQ GR8300123.00175 RPM2037 lbs.-in.1 1/4"7/8"5.655 hp6.151 hpGeneral Purpose1€2,157.38
GROVE GEAR GR8300021.00 Worm Reducer, 50:1 Ratio, 0.875 Inch I.D, 1.25 Inch O.D, Cast Iron | AX4KHJ GR8300021.00-20841 1/4"7/8"1.383 hp1.915 hpGeneral PurposeSingle€1,892.09
GROVE GEAR GR8305592.00 Quill Input Worm Gear Reducer | AX4LCT GR8305592.00233.3 RPM1734 lbs.-in.--6.421 hp---€1,929.25
RFQ
GROVE GEAR GR8300269.00 Worm Reducer, 20:1 Ratio, 1.125 Inch I.D, 1.25 Inch O.D, Cast Iron | AX6ABK GR8300269.0087.5 RPM20511 1/4"1 1/8"3.407 hp3 947/1000 hpGeneral PurposeSingle€2,187.77
GROVE GEAR GR8300139.00 Reducer, 3-Piece Coupled, Input Output Shaft, Double Worm | AX6FFC GR-BM830-30-D-180 GR8300139.0058 RPM2519 lbs.-in.1 1/4"7/8"--General Purpose1€1,238.71
GROVE GEAR GR8302008.00 Reducer, Solid Input Shaft Solid Output Shaft Left Worm | AX6LWU GR8302008.003.5 RPM4257 lbs.-in.--0.236 hp---€2,507.80
RFQ
