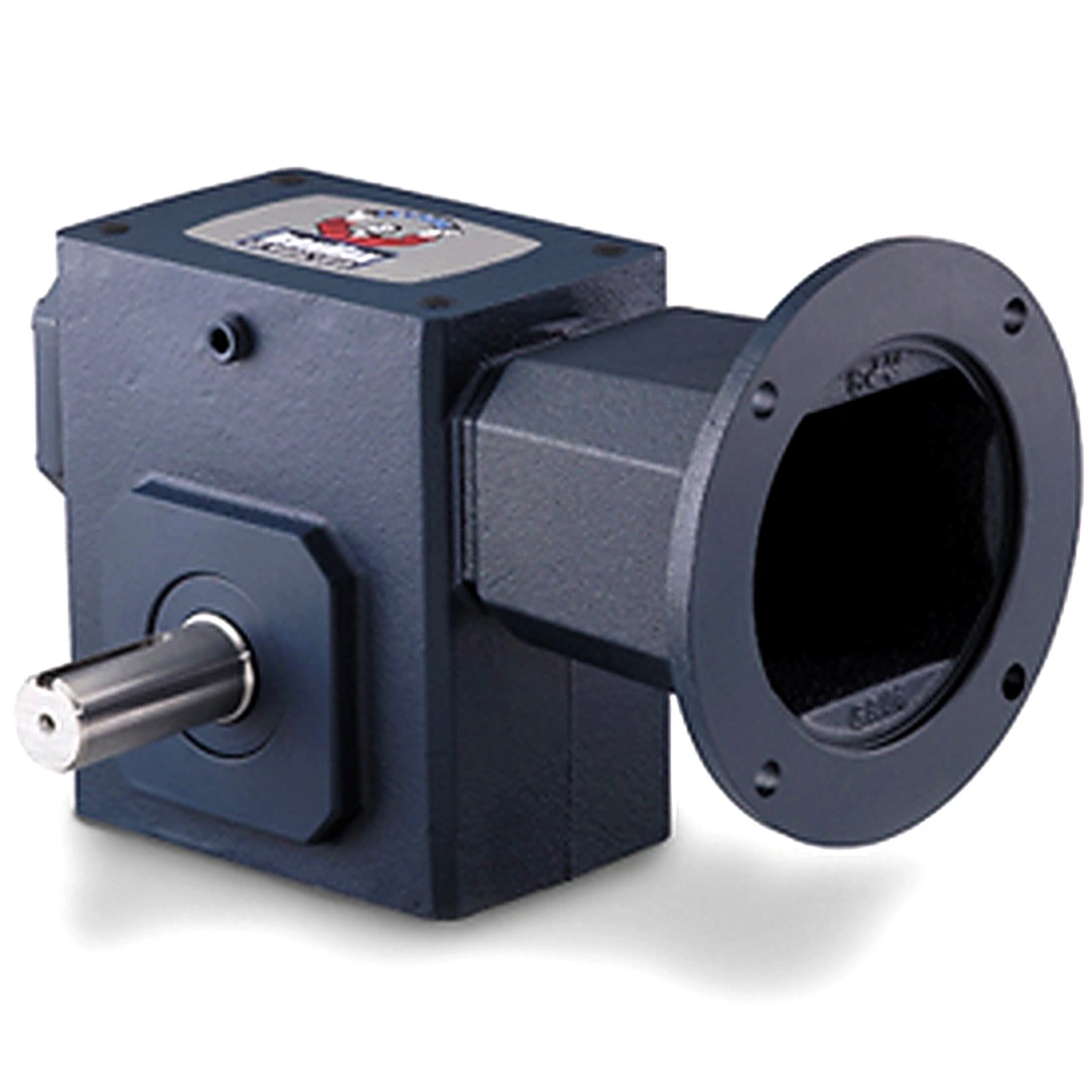

GROVE GEAR GR8300084.00 Reducer, 3-Piece Coupled Input Output Shaft Left Worm Gear | AY3CWT GR-BM830-100-L-140

GROVE GEAR GR8300084.00 GR-BM830-100-L-140 Right Angle Gear Reducer, 100 to 1 Ratio, 1.25 Inch Left Output Shaft, 143-5TC NEMA Input, 17 RPM Output

Item: AY3CWTModel: GR8300084.00Cross Ref: GR-BM830-100-L-140
Check Availability
In Stock

Get it by Tuesday, Aug 18

€1,185.39 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
A 5.25
Aj 5.88
Ak 4.5
Application General Purpose
Assembly BM-L
B 8.12
Bd 6.5
Be 0.38"
Bf 0.41
C 8 22/25"
Center Distance 3"
D 3.25
F 4
Frame 140
G 2
Gear Type Worm
H-tap Size 7/16"-14
H-tap Type UNC
Housing Material Cast Iron
I 4 21/25"
Input Dia. 7/8"
Input Hp @ 1750 Rpm 0.603 hp
Input Keyway 3/16" x 1.63"
Input Keyway Size 3/16" x 1.63"
Input Speed 1750 , 1750 RPM
Input Style Flexible Coupling Input
J 7"
K 3 1/2"
L 6.57"
Lm 8.82
Max. Input Hp @ 1750 1/2 hp
Motor Frame Size 140
Mount Footprint 4 x 7
Mount Style BM
N 6.75
Nema Input Mounting 143-5TC
No. Of Gear Reductions 1 , Single
O 3 3/5"
Output Config H1 Left
Output Dia. 1 1/4"
Output Key 1/4 x 1.75
Output Key Size 1/4" x 1 3/4"
Output Shaft Solid Shaft
Output Shaft Assembly Code L
Output Shaft Dia. 1.25
Output Shaft Direction Left
Output Shaft Thrust Rating 2574
Output Speed 17 , 17 RPM
Output Speed @ 1750 Rpm Input 17
Output Torque 1321 lbs.-in.
Output Torque Rating (in-lb) 1321 lbs.-in.
Overhung Load Rating 2170 lbs.
Product Line GR Series - Ironman Worm Gear Reducers
Product Type Right Angle
Ratio 1001 to 2501
Reducer Worm - Right Angle
Reduction Ratio 100
Series GR , GR Series
Series Code Gr
Series Size 830
Service Factor 1
Shaft Center Distance 3
Shaft Center Height 3.25
Shaft Seal Material Viton
T 1.25
Tap Depth 22/25"
Tap Size 7/16"-14
Thread Type Coarse
Torque (lb-in)@1750rpm 1321 lbs.-in.
U 7/8"

Shipping Info:

Ship weight (kg) 31.05
Ship height (cm)20.32
Ship length (cm)30.48
Ship width (cm)25.4

Product Variants

ProductModelOutput SpeedOutput TorqueOutput Dia.Input Dia.Output HpMax. Input HpApplicationNo. Of Gear ReductionsPrice
GROVE GEAR GR8300517.31 Output Worm Gear Reducer, 3.00 Inch Distance, 2454 Inch/lbs Torque, Cast Iron | AX3XTZ GR-HM830-20-H1-56-31 GR8300517.3187 RPM2454 lbs.-in.1.938"7/8"--General Purpose1€1,588.55
GROVE GEAR GR8300123.00 Worm Reducer, 10:1 Ratio, 0.875 Inch I.D, 1.25 Inch O.D, Cast Iron | AX4ETQ GR8300123.00175 RPM2037 lbs.-in.1 1/4"7/8"5.655 hp6.151 hpGeneral Purpose1€2,157.38
GROVE GEAR GR8300021.00 Worm Reducer, 50:1 Ratio, 0.875 Inch I.D, 1.25 Inch O.D, Cast Iron | AX4KHJ GR8300021.00-20841 1/4"7/8"1.383 hp1.915 hpGeneral PurposeSingle€1,892.09
GROVE GEAR GR8305592.00 Quill Input Worm Gear Reducer | AX4LCT GR8305592.00233.3 RPM1734 lbs.-in.--6.421 hp---€1,929.25
