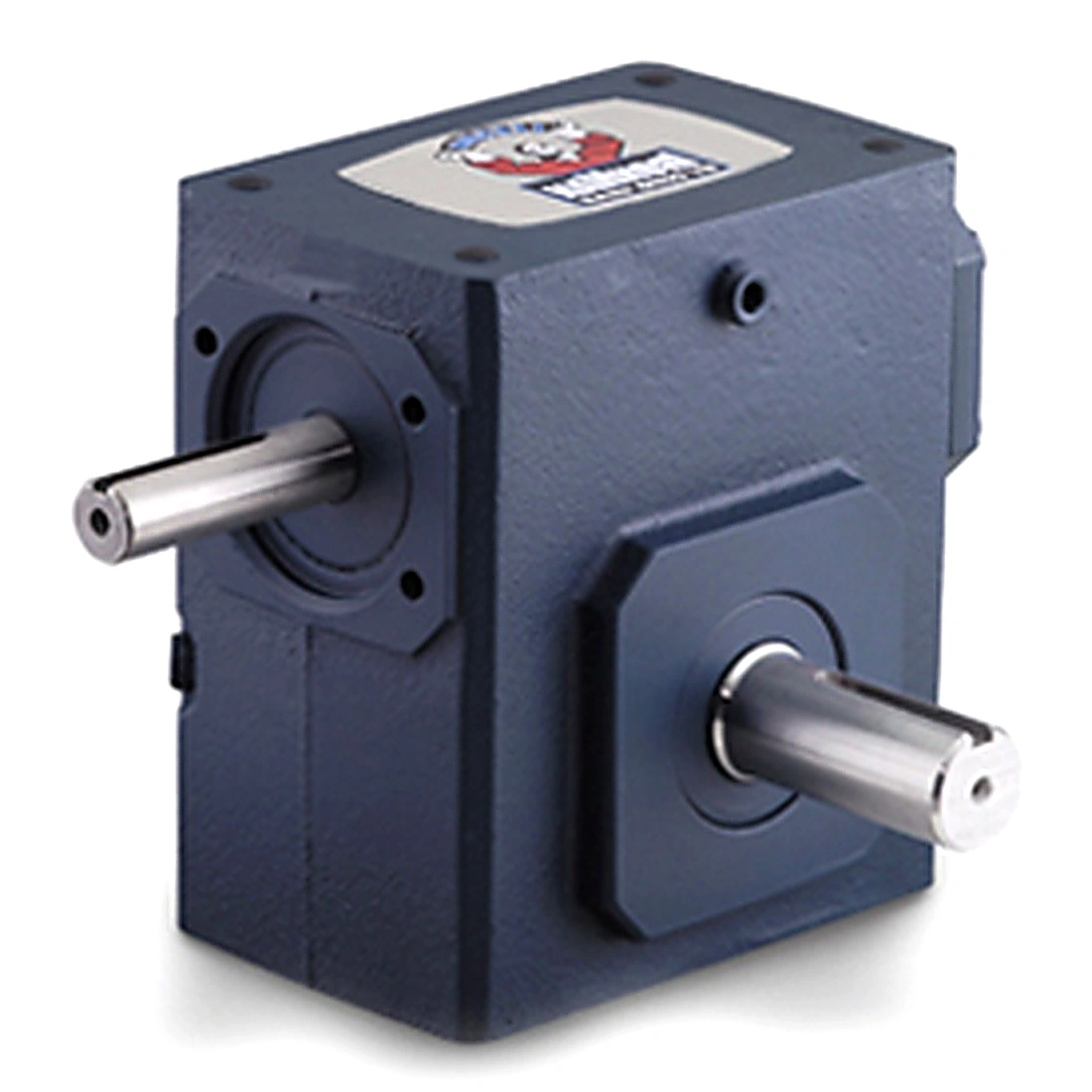

GROVE GEAR GR8300019.00 GR-B830-30-R Right Angle Gear Reducer, 30 to 1 Reduction Ratio, 58 RPM Output, 2519 lb-in Torque, H1 Right Output
Get it by Tuesday, Aug 25
€1,892.09 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Application | General Purpose |
| Assembly | B-R |
| Centre Distance | 3" |
| Dimensions | 8 22/25" |
| Family Name | Cast Iron Housing Material Worm Gear Reducers |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gross Weight | 0 lbs. |
| Input Dia. | 7/8" |
| Input Hp | 2.879 hp |
| Input Hp @ 1750 Rpm | 2.879 hp |
| Lubrication Type | Pag Synthetic Oil |
| Max. Input Hp @ 1750 | 2 hp |
| Max. Ohl (output Shaft) | 2170 |
| Max. Thrust Load (output Shaft) | 2574 |
| Mounting Type | Base |
| Nema Input Mounting | Solid Shaft |
| No. Of Gear Reductions | Single |
| Output Config | H1 Right |
| Output Dia. | 1 1/4" |
| Output Shaft Direction | Right |
| Output Shaft Orientation | R |
| Output Speed | 58 |
| Output Speed @ 1750 Rpm Input | 58 |
| Output Style | R |
| Output Torque | 2982 |
| Paint/coating | Blue |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Product Type | Worm Speed Reducer |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Series Size | 830 |
| Shaft Center Height | 3.25 |
| Shaft Seal Material | Viton |
| Speed | 58 RPM |
| Torque (lb-in)@1750rpm | 2519 |
| Type | Right Angle Single Reduction |
Shipping Info:
| Ship weight (kg) | 28.8 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 24.13 |
