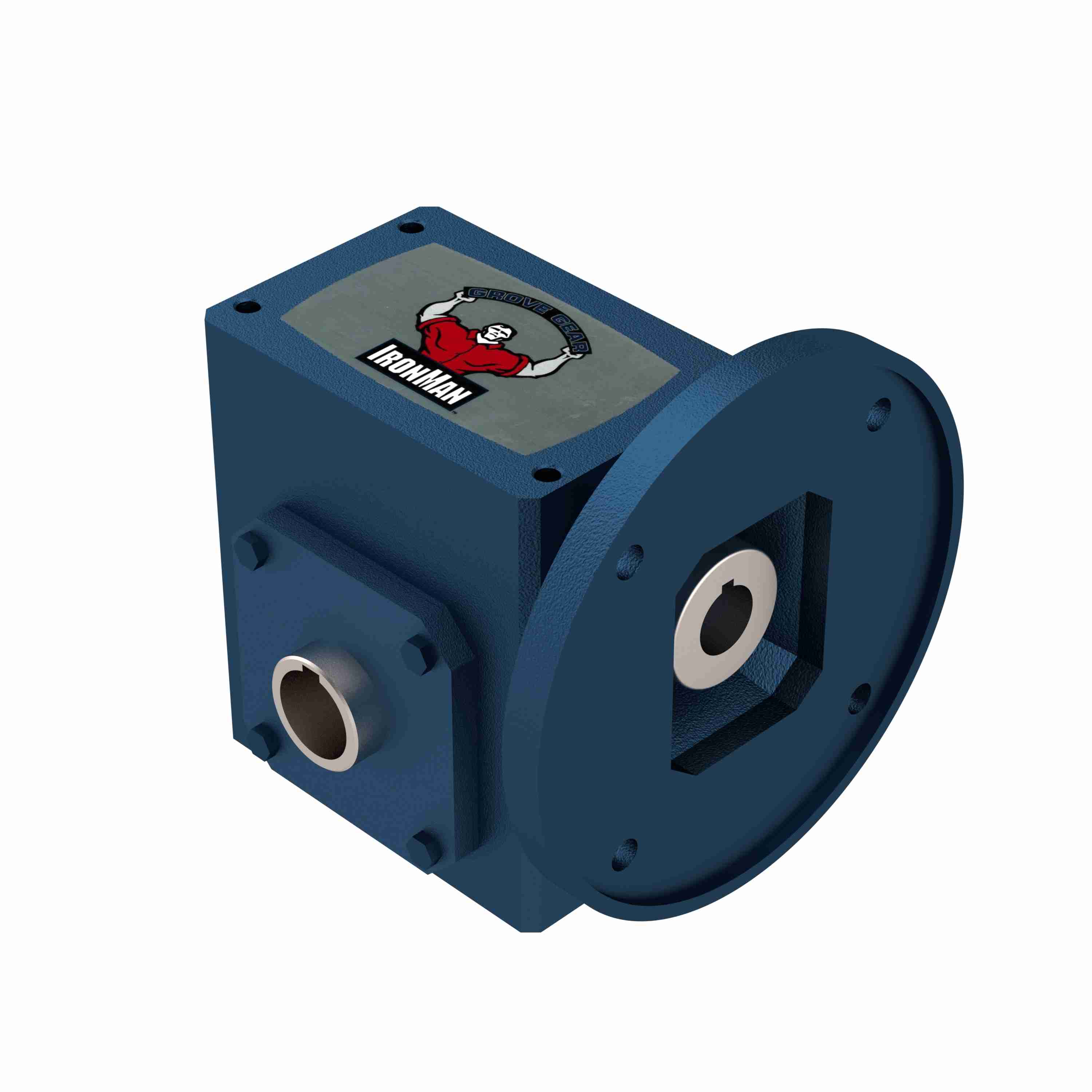

GROVE GEAR GR8260576.24 Worm Reducer, 15:1 Ratio, 1.125 Inch I.D, 1.5 Inch O.D, Right Angle Cast Iron | AY7QJV

GROVE GEAR GR8260576.24 GR-HMQ826-15-H1-180-24 Right Angle Gear Reducer, 15 to 1 Reduction Ratio, 116 RPM Output, 1737 lb-in Torque, Cast Iron

Item: AY7QJVModel: GR8260576.24Cross Ref: GR-HMQ826-15-H1-180-24
Check Availability
In Stock
Ratio

Get it by Friday, Aug 28

€1,984.12 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
Aa 8.81
Ab 6.69
Ae2 0.39
Ak 8.5
Application General Purpose
Assembly HMQ-H1
B 7.38
Be1 1/2"
Bore Code 24
C 8"
Center Distance 2.63"
D 2.94
F 3.38
Frame 180TC
G 1.69
Gear Type Worm
H 0.53"
Housing Material Cast Iron
I 4.34"
Input Bore (c Face) 1 1/8"
Input Dia. 1 1/8"
Input Hp 3.614 hp
Input Keyway Size (c Face) 1/4" x 1/8"
Input Quill Dia. 1 1/8"
Input Speed 1750 RPM
Input Style C Face Quill
J 6.38"
Key Way Size 1/4" x 1/8"
Lq1 5.62"
Max. Input Hp 3.614 hp
Mounting Type Shaft Mount
No. Of Gear Reductions 1
Output Dia. 1 1/2"
Output Hp 3 27/125 hp
Output Key Size 3/8" x 3"
Output Shaft Hollow Bore
Output Shaft Assembly Code H1
Output Shaft Orientation H1
Output Speed 116 RPM
Output Style H1
Output Torque 1737 lbs.-in.
Overhung Load Rating 1625 lbs.
Product Datasheet grove-gear-gr8130084-00.pdf
Product Line GR Series - Ironman Worm Gear Reducers
R 3/4"
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reduction Single
Reduction Type Single
Rq 5.13"
Series GR Series
Series Style GR-HMQ-H1
Series Type Cast Iron 800 Worm Gear Reducers
Service Factor 1
Shaft Seal Material Viton
Torque (lb-in)@1750rpm 1737
V 1.94"

Shipping Info:

Ship weight (kg) 25.2
Ship height (cm)29.85
Ship length (cm)40.64
Ship width (cm)31.12

Documentation:

Datasheet

Product Variants

ProductModelOutput TorqueOutput Dia.Output SpeedInput Dia.Output HpMax. Input HpInput StyleApplicationPrice
GROVE GEAR GR8263904.20 Quill Input Hollow Bore Output Worm Gear Reducer | AX7RBR GR8263904.20------Quill-€2,473.97
RFQ
GROVE GEAR GR8260574.19 Worm Reducer, 7.5:1 Ratio, 1.125 Inch I.D, 1.188 Inch O.D, Cast Iron | AX8QRV GR8260574.191235 lbs.-in.1.188"233 RPM1 1/8"4.571 hp4.956 hpC Face QuillGeneral Purpose€2,416.65
GROVE GEAR GR8260529.16 Worm Reducer, 20:1 Ratio, 0.75 Inch I.D, 1 Inch O.D, Cast Iron | AX9CMK GR8260529.161836 lbs.-in.1"87 RPM3/4"2.549 hp2.965 hpFlexible Coupling InputGeneral Purpose€2,416.65
GROVE GEAR GR8262536.16 Double Reduction Reducer, 400:1 Ratio, 1 Inch Output Diameter, Cast Iron | AX9CML GR8262536.162860 lbs.-in.1"4.38 RPM-1/5 hp0.353 hpC Face Quill-€1,776.67
RFQ
GROVE GEAR GR8260503.23 Worm Reducer, 10:1 Ratio, 0.75 Inch I.D, 1.4375 Inch O.D, Cast Iron | AX9DMX GR8260503.231475 lbs.-in.1 7/16"175 RPM3/4"4.097 hp4.492 hpSolid ShaftGeneral Purpose€2,098.20
GROVE GEAR GR8260521.18 Output Worm Gear Reducer | AX9DMY GR8260521.181843 lbs.-in.1 1/8"35 RPM3/4"--Flexible Coupling InputGeneral Purpose€1,354.72
GROVE GEAR GR8260559.20 Worm Reducer, 80:1 Ratio, 0.625 Inch I.D, 1.25 Inch O.D, Cast Iron | AX9DMZ GR8260559.2015931 1/4"-5/8"0.379 hp0.577 hpC Face QuillGeneral Purpose€2,383.07
